Material Device Of Blister Packaging Machine

Dec 08, 2021

Flat-plate aluminum-plastic blister packaging machine aluminum-plastic reel: sentence includes two parts: aluminum foil reel and plastic film reel. The reel is mainly composed of a cylinder, an inner and an outer stator, a brake ring, and an adjusting nut. The two ends of the cylinder are supported on a supporting shaft with rolling bearings, which are the rotating parts of the reel. When the plastic film or aluminum foil is pulled, it drives the assembly. The roll material on the reel rotates freely. The stator is divided into inner and outer stators, and the sliding sleeve is on the cylindrical surface of the cylinder body, and is fixed at any position of the cylinder body by fixing screws to install and fix coils of different widths.

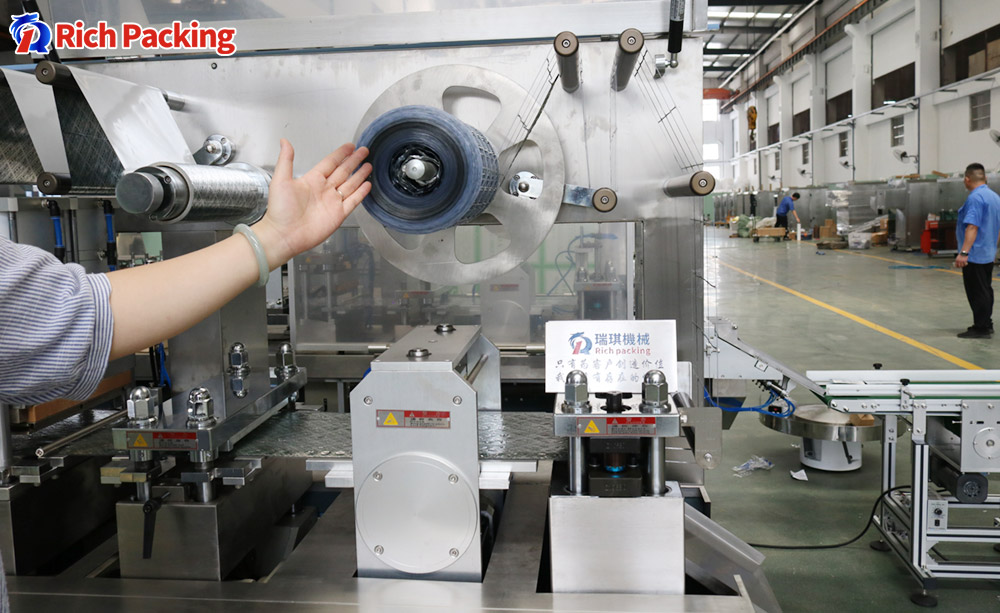

ALU ALU blister packing machine

The brake ring is sleeved on the inner and outer cylindrical surface of the cylinder of the bath packaging machine and fixed on the supporting plate. It is the stationary part of the reel and is used to brake the cylinder. Tighten or withdraw the 4 adjusting screws on the outer circumference of the brake ring to increase or decrease the braking force on the cylinder, so that the pulled film or aluminum foil can obtain the necessary tension.

The adjusting nut of the blister packaging machine is screwed on the supporting shaft and sleeved on the inner cylindrical surface of the outer end of the cylinder, and is connected with the copper body by a bearing. When the cylinder is rotating, turning the adjusting nut can make the cylinder Realize axial movement to adjust the lateral position of Zheng material. The supporting shaft is fixed on the supporting plate, and the supporting plate is fixed on the fuselage to form the supporting body of the reel.
