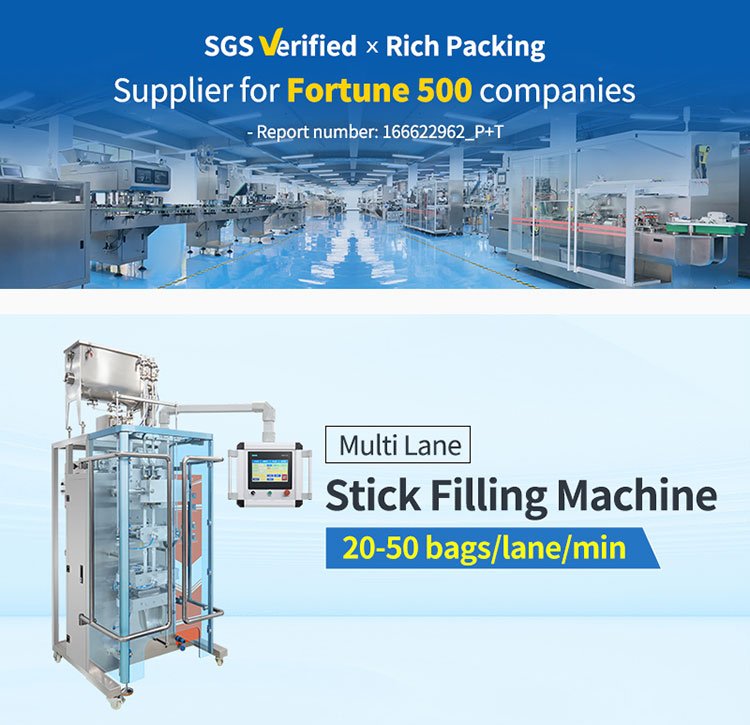

Multi Lane Liquid Stick Packaging Machine

Breakthroughs in Our Multi-Lane Liquid Stick Pack Line to Stop Leaks and Maximize OEE

Introduction: The High-Stakes Shift to Liquid Single-Dose Packaging

In pharmaceutical, nutraceutical, and high-volume food processing industries, the market demand for single-dose liquid packaging has reached an all-time high. Consumers across Europe and North America heavily favor the portable convenience of sleek, single-serving stick packs. However, migrating your production line from traditional bottles or rigid containers to flexible film requires a major leap in engineering control.

For operation managers, the transition to liquid flexible packaging is often plagued by costly headaches: product leakage, inconsistent sealing, dosing inaccuracies, and agonizingly slow changeover cycles. When dealing with premium liquid formulas, active pharmaceutical ingredients (APIs), or viscous food pastes, even a tiny variation in your machinery can result in extensive product waste, strict regulatory non-compliance, and devastating downtime.

1. Decoupling the Liquid Stick Pack Machine: Engineering Rigor Over Common Mechanical Layouts

A generic stick packing machine or standard form-fill-seal system is typically designed around mechanical linkages and basic gravity-fed funnels. While this setup works for free-flowing powders, it fails completely when subjected to the physical properties of liquids. High-surface-tension fluids, sticky pastes, and dense emulsions exhibit erratic behaviors during high-speed multi-lane filling. Capillary action can cause product trailing across the sealing area, which compromises the film laminate and causes chronic leaks down the line.

To prevent seal contamination, a high-performance liquid stick pack machine must master the exact timing between liquid delivery and horizontal film advancement. The Rich Packing liquid line controls this process through a closed-loop electronic synchronization network. By isolating the pump actuation from the vertical film pulling cycle, our machinery ensures that the liquid dose is injected cleanly into the center of the formed tube, with zero splashback or residual trailing.

Furthermore, our heavy-duty platform replaces traditional unified drive shafts with decentralized, synchronized servo drives. This architecture allows operators to calibrate each lane independently through the central HMI, providing absolute mechanical repeatability across micro-dosing applications.

2. Deep Dive: 8 Architectural Advantages of Our Liquid Stick Dosing System

What separates an elite, production-grade Stick Packaging Machine from low-tier alternatives? The difference lies in material choices, structural stress thresholds, and the intelligence of the automation loop. Below is an engineering analysis of the 8 built-in upgrades that guarantee long-term stability and high production yields.

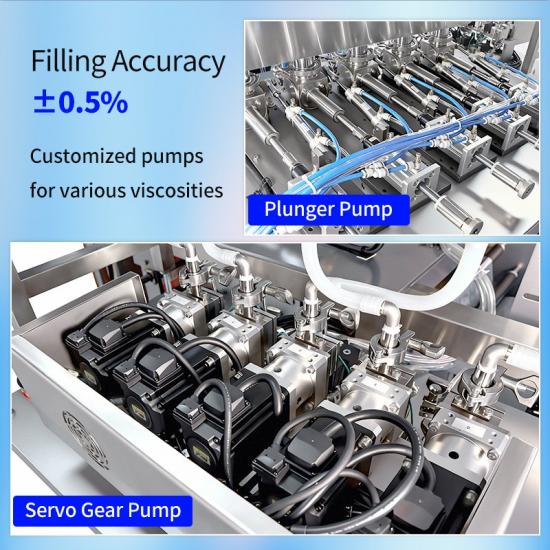

① Precision Custom Dosing Pumps (Unmatched ±0.5% Accuracy)

When packaging high-value pharmaceuticals or dense nutritional oils, precise dosing is critical for profit margins and regulatory validation.

● The Mechanical Solution: Our system features custom-engineered rotary lobe, piston, or peristaltic pumps tailored precisely to the specific viscosity profile of your product.

● The Technical Edge: By stabilizing fluid pressure within the manifold, our filling assembly achieves an exceptional accuracy threshold of ±0.5%. This eliminates overfill product giveaway and guarantees that every single lane delivers the exact label claim, batch after batch.

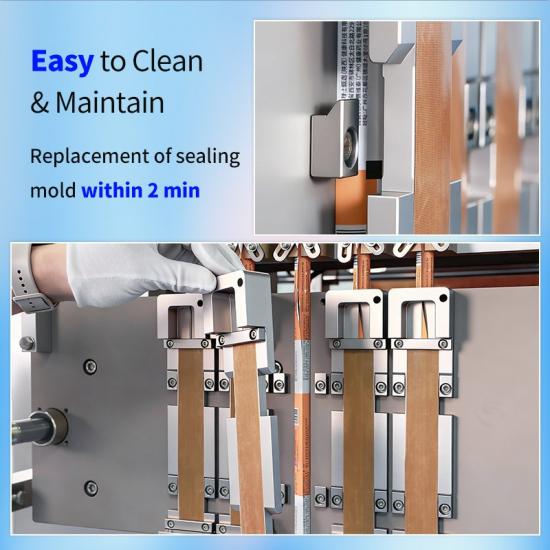

② Rapid 2-Minute Sealing Mold Changeovers

Traditional vertical form-fill-seal machinery often requires hours of tool-heavy calibration to replace worn sealing elements, which severely hampers short-run agility.

● The Mechanical Solution: We have engineered a revolutionary quick-release slide mechanism for our horizontal and vertical sealing jaws.

● The Technical Edge: Operators can perform a complete sealing mold changeover in just 2 minutes without specialized tools. This rapid-swap capability makes routine cleaning, maintenance, and format adjustments incredibly fast, effectively eliminating extended downtime.

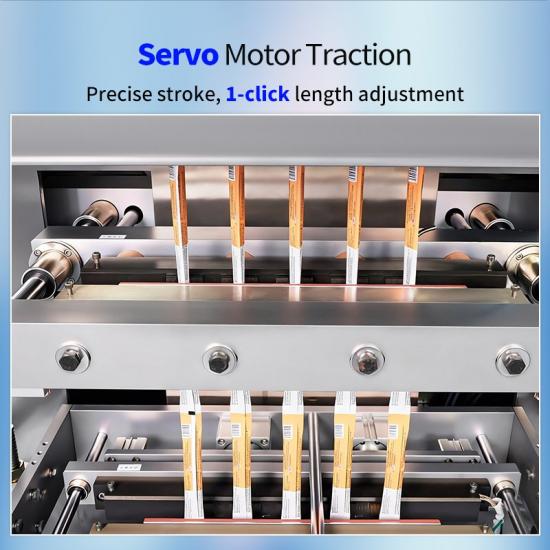

③ Closed-Loop Servo Traction with One-Click Length Adjustment

Mechanical pull rollers driven by chains or belts naturally stretch and wear over time, causing progressive errors in sachet lengths.

● The Mechanical Solution: Our web-handling architecture is powered by independent, high-torque servo motor traction drives.

● The Technical Edge: This system monitors pulling tension in real-time to deliver a perfectly stable stroke. Operators can change the bag length instantly with a single click on the digital touchscreen HMI, bypassing the tedious physical gear changeovers required by legacy machinery.

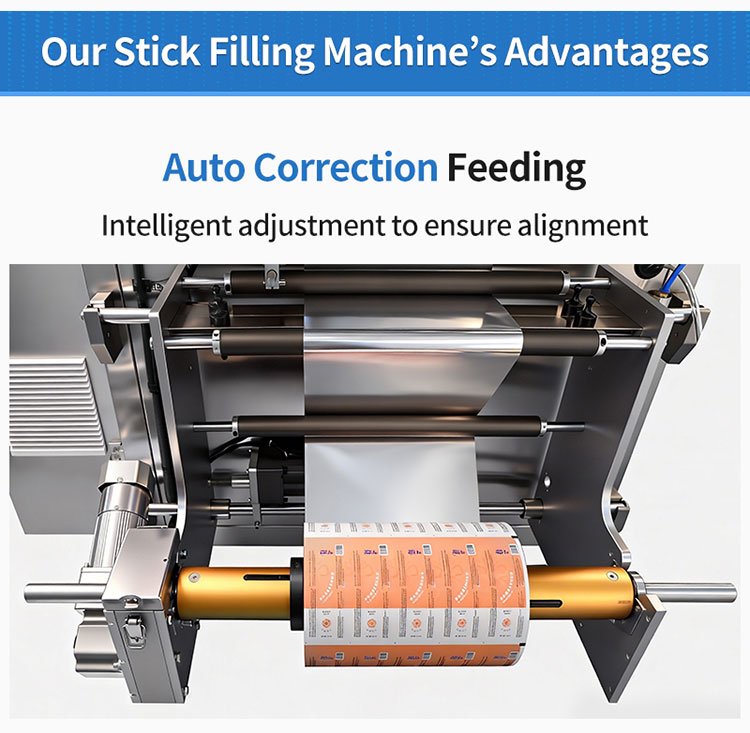

④ Intelligent Automatic Film Tracking and Correction

If packaging film drifts even slightly out of alignment during high-speed roll unwinding, it causes asymmetric side-seals and catastrophic jaw jams.

● The Mechanical Solution: The machine integrates an advanced web guiding system equipped with high-sensitivity ultra-sonic and photoelectric registration sensors.

● The Technical Edge: The automated tracking loop continuously monitors the web edges and triggers instant micro-adjustments to the tension rollers. This active alignment ensures that the film is perfectly centered as it enters the forming collar, guaranteeing flawless pouch geometry.

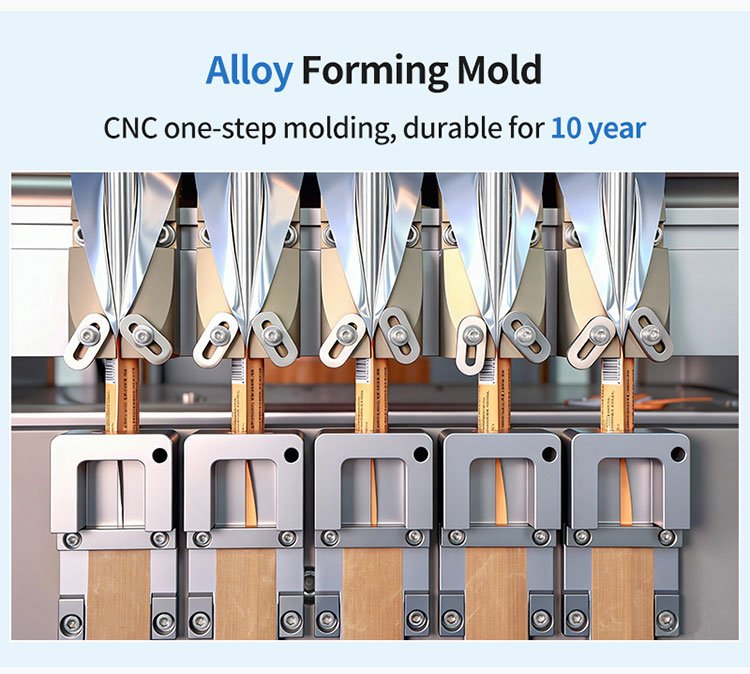

⑤ CNC One-Time Formed Aluminum Alloy Collars (10-Year Lifespan)

The forming collar is the most delicate component of a stick pack packaging machine; any minor surface imperfection will scratch or tear the expensive barrier film.

● The Mechanical Solution: Rich Packing forming molds are carved from a single block of aviation-grade aluminum alloy using high-precision, 5-axis CNC machining.

● The Technical Edge: Because it is shaped in a single manufacturing step with zero welded seams, the collar features a perfectly smooth surface profile that reduces film friction. This heavy-duty construction provides structural stability and an outstanding operational lifespan of up to 10 years.

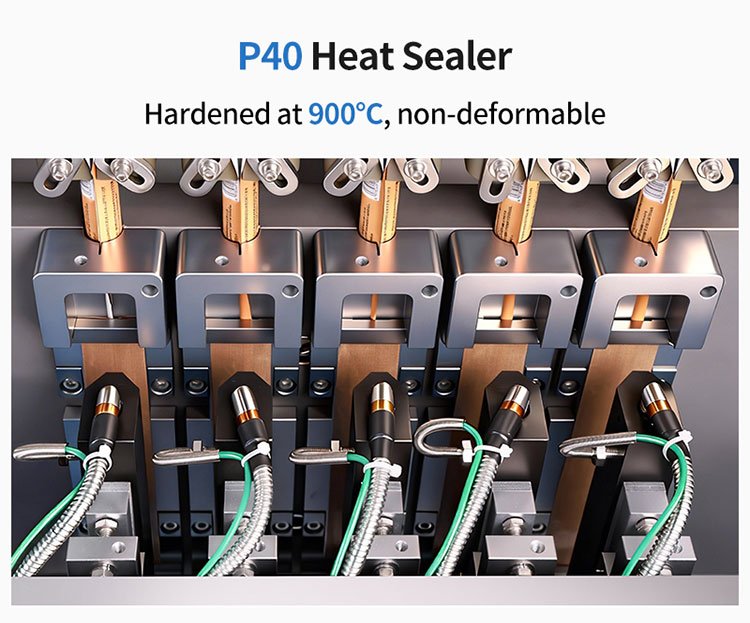

⑥ Specialized P40 Heat Sealers with 900°C Quenching

Continuous exposure to high temperatures and constant pressure causes standard sealing copper or iron bars to warp, resulting in uneven heat distribution and leaky pouches.

● The Mechanical Solution: Our sealing jaws are forged from premium P40 die steel, subjected to a specialized 900°C high-temperature quenching and hardening process.

● The Technical Edge: This advanced metallurgy ensures that the sealing jaws retain their perfect flat profile under continuous thermal expansion. The heat is distributed perfectly evenly across all lanes, producing flawless, leak-proof hermetic seals shift after shift.

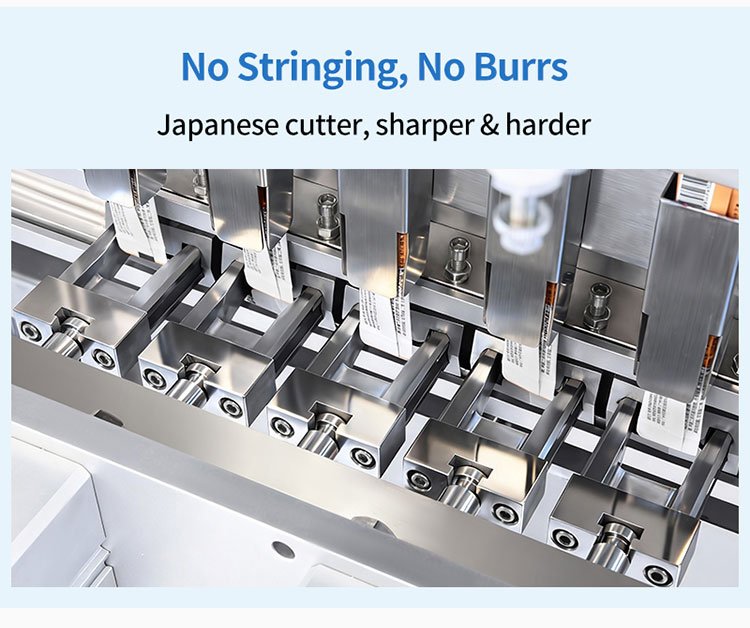

⑦ Premium Imported Japanese Cutters for Clean, Burr-Free Edges

Dull cutting blades rip the packaging film rather than slicing it, leaving frayed edges and burrs that compromise your brand's premium look.

● The Mechanical Solution: The slitting and cutting station is equipped with custom-ground mechanical knives imported directly from Japan.

● The Technical Edge: These ultra-hard cutting tools maintain their razor-sharp edge over millions of continuous cuts. They provide a clean, burr-free aesthetic finish and eliminate the microscopic plastic dust that typically clogs downstream cartooning equipment.

⑧ Universal Global Compliance (cGMP, CE, ISO)

Selling into highly regulated markets like Europe and North America requires strict adherence to international safety and sanitary design principles.

● The Mechanical Solution: Our entire Stick Packaging Machine platform is built on an open-architecture balcony layout using food-grade SUS304 and SUS316L stainless steel.

● The Technical Edge: The machine carries full CE certification, conforms to strict cGMP guidelines, and is manufactured under ISO 9001 quality management protocols. This ensures easy validation for pharmaceutical facilities and simplifies cleaning inspections.

3. Cross-Industry Applications: Mastering Specialized Liquid Processing

Our high-performance stick packing machine line is uniquely optimized to serve three distinct industries, each presenting its own unique material-handling challenges.

1. The Pharmaceutical Sector

In the production of oral liquid suspensions, antibiotics, and cough syrups, precision and hygiene are non-negotiable. Our pharmaceutical stick pack packaging machines prevent product cross-contamination by isolating the mechanical drive elements behind an open balcony wall. The clean, crevice-free pump manifold can be connected to advanced Clean-In-Place (CIP) systems, allowing for automated, validated washdown cycles without manual teardowns.

2. The Nutraceutical & Health Supplement Industry

The health supplement market is seeing massive growth in premium, high-viscosity products like liposomal vitamins, liquid energy gels, and marine collagen shots. Operating as efficient liquid food supplement stick pack packaging machines, our lines use heated hopper systems and specialized jacketed manifolds to lower fluid viscosity. This allows for rapid, clean, and consistent dosing into thin, single-serving sachets.

Furthermore, when packaging highly sensitive omega fatty acids, our system can be equipped with an inline nitrogen-flushing module. This replaces residual oxygen inside the stick pack with inert gas prior to sealing, preventing oil oxidation and significantly extending product shelf life.

3. The High-Volume Food & Beverage Sector

From single-serve condiments to portable health foods, food processing requires relentless speed and low maintenance costs.

● Condiment Lines: Configured as high-throughput ketchup stick pack packaging machines, our lines handle acidic, high-salt formulas without corroding, thanks to premium stainless steel construction.

● Viscous Food Lines: Serving as highly reliable honey stick packing machine solutions, our custom rotary valves cut off product flow cleanly at the nozzle tip, preventing sticky strings from contaminating the sealing area.

4. Operational Matrix: Multi-Lane Servo System vs. Conventional Equipment

For procurement executives evaluating a capital investment, the table below outlines the clear performance advantages of our advanced Stick Packaging Machine compared to standard, budget-tier alternatives.

5. Total Cost of Ownership (TCO) and Long-Term Production Value

When evaluating a new liquid packaging line, smart manufacturers look past the initial price tag and focus on the Total Cost of Ownership (TCO). Our engineering upgrades are specifically designed to reduce operational expenses in three key areas:

● Minimized Product Giveaway: Reducing your dosing error from $\pm2\%$ down to ±0.5% saves thousands of liters of premium formula over a year of high-volume production.

● Reduced Consumable Expenses: Our CNC-machined forming collars last up to 10 years, and our quenched P40 sealing jaws resist warping indefinitely, drastically reducing your annual spare parts budget.

● Lower Labor Overhead: Features like automated film tracking, one-click length adjustments, and 2-minute mold changes mean a single operator can manage multiple lines efficiently, saving significant labor costs.

Summary: Securing Long-Term Packaging Efficiency

The Rich Packing Multi-Lane Liquid Stick Packaging Machine is a reliable asset designed to handle the toughest liquid packaging challenges. By combining high-precision dosing pumps with advanced servo web handling, a 900°C quenched sealing jaw, and a 10-year forming collar, this system eliminates common issues like product leakage, inaccurate filling, and extended changeover downtime.

Whether you run a high-purity pharmaceutical line, a fast-growing nutraceutical facility, or a high-volume food processing plant, our equipment delivers the reliability and compliance needed to protect your margins and scale your output.

Technical FAQ for Stick Pack Packaging Machine

Q1: Can this stick pack filling machine handle both water-thin liquids and high-viscosity pastes?

A: Yes. The machine uses an interchangeable dosing pump interface. By swapping out the pump head—such as using a peristaltic pump for thin liquids or a rotary piston pump with a heated hopper for thick pastes like honey—this single asset can adapt to a wide variety of product weights and viscosities.

Q2: How does the automatic tracking feature adjust for film alignment errors during high-speed runs?

A: Our stick pack packaging machine features an active web guiding system. High-sensitivity sensors continuously scan the edges of the unwinding film. If any drift is detected, the system automatically triggers micro-adjustments via a motorized correction frame, keeping the film perfectly centered as it enters the forming collars.

Q3: What types of film laminates are compatible with the P40 quenched heating elements?

A: The quenched P40 sealing jaws provide exceptional thermal stability, making them compatible with almost all standard multi-layer barrier films, including PET/AL/PE, PET/PE, Paper/AL/PE, and modern eco-friendly, recyclable mono-plastic films.

Q4: Is the dosing pump system compatible with Clean-In-Place (CIP) setups?

A: Absolutely. Our liquid stick pack machine is designed from the ground up to meet strict cGMP standards. The liquid manifold, dosing tubes, and nozzles feature sanitary, quick-connect sanitary clamps that connect seamlessly to your facility's centralized CIP system for automated, validated cleaning.

Q5: What is the typical lead time for a custom-configured multi-lane liquid packaging machine?

A: Standard multi-lane configurations typically take 15 to 25 days to manufacture. If your line requires specialized customizations, such as an integrated inline camera inspection system, a nitrogen-flushing module, or a custom lane layout, the lead time ranges from 30 to 40 days.
