Pharma capsule Blister Pack Machine

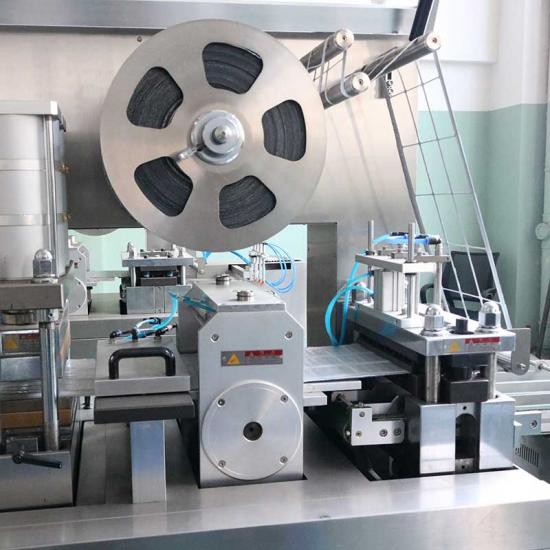

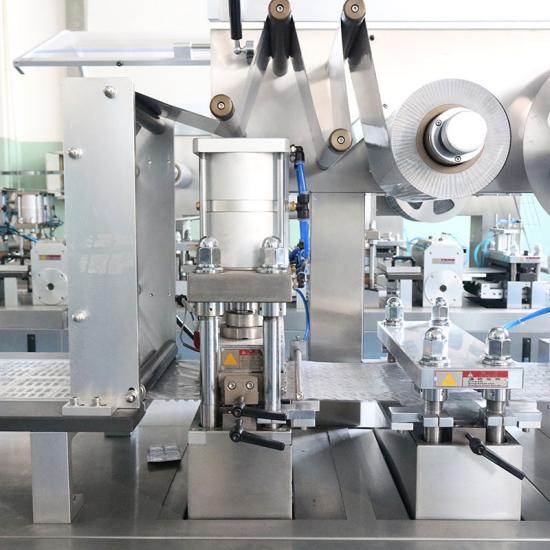

Blister packing machine 260R CE GMP is super straightforward to be operate and cleaned without any doubt because 260R has scientifically reasonable design as well as structure. This type of machine 260R CE GMP has numerous advantages to satisfy any operator such as it has super successful and smooth operation and 260R is super high in working speed. Users don’t need to worry about the material retreat no matter what will happen during the whole packaging process.
*** Technical parameter
|
Model |
DPP-260R |
|
Production Capacity |
18000～236,000pcs/hour |
|
Max. Shaping Dia. And Depth |
250*160*15mmMax. Depth26mm（custom-made） |
|
Blanking |
20～180blisters/min (aluminum plastic) 20～120 blisters/min (aluminum aluminum) |
|
Power of Main Motor |
1.5kW |
|
Total Power |
6.0kW |
|
Power supply |
380V/220V/50Hz |
|
Standard Travel Range |
40～160mm |
|
Standard Plate |
80*57mm |
|
Thickness and Width of PVC |
260×0.15～0.45mm |
|
Thickness and Width of PTP |
260×0.02～0.03mm |
|
Dialyzing Paper |
50～100g*260mm |
|
Vacuum |
0.4MPa-0.6MPa |
|
gas consumption |
≥0.2m3/min |
|
Noise |
<75dBA |
|
Mold Cooling |
Runing water or circulating water It is recommended to use constant temperature cold water 60L/H |
|
Weight |
Net weight 2600kg |
|
Overall Size of Machine |
3500×740×1680 mm(L*W*H) |
***Configuration List.
|
Name |
Spec./Model |
Qty |
Manufacturer |
|
Servo Motor |
ECMA-C20807RS |
1 |
Taiwan taida |
|
server Driver |
server Driver |
1 |
Taiwan taida |
|
PLC main module |
CP1L-M30DR-A |
1 |
Omron |
|
PLC temperature module |
CP1W-TSOO2 |
1 |
Omron |
|
PLC touch screen |
6AV6/648-0BC11-3AX0 |
1 |
Siemens |
|
Encoder |
ZSP3806-003G-1500BZ3-5-24F |
1 |
United States Rip Ann Waco |
|
Main motor |
RC series helical gear motor |
1 |
Suncheon |
|
Frequency converter |
VFD015B43A |
|
taiwantaida |
|
Stainless steel plate |
304 316 |
|
Korea,japan |
|
Switching power supply |
NES-100-24 |
|
Taiwan mingwei |
|
Positioning cylinder |
SDA32×10 |
|
AirTAC |
|
Double pressure reducing valve |
BFC4000-N |
|
AirTAC |
|
The electromagnetic valve |
4V210-08 |
|
AirTAC |
|
Pressure reducing valve |
AC2010-02 |
|
AirTAC |
|
emergency button |
XB2-BS542 |
|
Schneider |
Blister packing machine 260R CE GMP has the function of emergency stop which can smoothly ensure the good quality of medicine packing. Because 260R type will timely stop when there is something wrong.
This type of CE GMP blister machine can automatically operate without any supervision of people and users can do many other things during this period of working time.
Tens of thousands of the customers at homeland and abroad has praised it for its excellent performance and good quality of packing.
*** Certification: SGS, CE, ISO
***
Blister packing machine CE GMP 260R fully meets the standard rules of GMP production and it surely will never let any operator down.
These type of 260R machine CE GMP has been so popular among so many clients all over the world and the Guangzhou Pharmaceutical Group is one of our Rich Packing’s clients. This blister packing machine pharmacy CE GMP is truly safe for people to operate because safety covers have been provided to all stations to well protect people who use it.
It takes full advantages of the functions of the automatic alarm and the fragments stop of PVC and PTP to ensure all the safety of all machine parts and all products inside the 260R machine.
