Stick Cartoning Machine

Automatic Carton Box Packing Machine For Sticks

Product Parameters

Sachet Cartoning Machine: 6 Critical Upgrades in the RQ-ZH-130W to Overcome Stick Pack Packaging Bottlenecks

Introduction: Resolving the Secondary Packaging Dilemma for Flexible Dose Formats

Standard, legacy cartoning systems are built to handle rigid items like blister cards or bottles. When fed flexible strips or sticks, they routinely suffer from material jams, miscounts, and cosmetic damage to the outer carton. For operations managers across Europe and North America striving to optimize Overall Equipment Effectiveness (OEE) and minimize manual labor costs, investing in a specialized, automated line is a operational necessity.

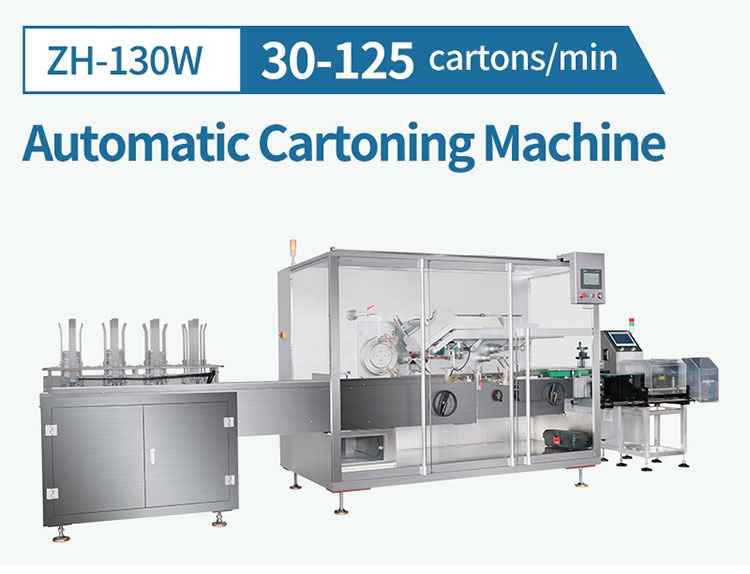

The Rich Packing RQ-ZH-130W Horizontal Automatic Sachet Cartoning Machine represents a significant engineering shift in secondary packaging automation. Operating at verified production speeds of up to 125 cartons per minute, this system is engineered precisely to handle the complex kinematics of flexible pouch manipulation.

In this exhaustive commercial and technical guide, we will examine the industrial applications of this high-speed line and dissect the 6 core technological upgrades that enable the RQ-ZH-130W to provide zero-error, continuous cartoning performance for your premium brands.

Part 1: The Multi-Industry Necessity for Specialized Stick Pack Automation

The flexible stick pack has become a dominant packaging format globally due to consumer demand for single-dose convenience, portion control, and portable freshness. However, a generic Carton Box Packing Machine cannot adapt to the erratic structural behavior of flexible pouches. The RQ-ZH-130W Sachet Cartoning Machine is specifically optimized to bridge this gap across three primary industrial sectors.

1. The Pharmaceutical Industry

In pharmaceutical packaging, absolute quantity precision and cross-contamination prevention are legally mandated under strict cGMP guidelines. Whether processing granular antibiotics, powder suspensions, or single-dose oral liquids, a specialized Cartoning Machine for Stick Pack formats must ensure that every box contains the exact uncompromised count. The RQ-ZH-130W integrates seamless sensor arrays to verify pouch presence, eliminate missing-unit errors, and manage downstream pharmaceutical track-and-trace requirements.

2. The Nutraceutical & Dietary Supplement Market

The nutraceutical sector is defined by high-mix, high-volume production schedules. Products like collagen peptides, sports nutrition electrolytes, greens powders, and liquid energy gels require an exceptionally flexible Stick Cartoning Machine. Because nutraceutical formulations often utilize thick, multi-layer foil laminates or modern eco-friendly recyclable materials, the cartoning line must handle varying pouch thicknesses and seal profiles without altering its structural accuracy.

3. The Food & Beverage Sector

From instant coffee and powdered dairy creamers to specialized drink mixes and liquid condiments, the food industry demands relentless high-speed performance and low operating costs. Operating as a reliable Coffee Stick Cartoning Machine, the RQ-ZH-130W handles continuous multi-shift workloads with minimal human intervention. Its hygienic design ensures rapid cleanability, allowing food facilities to maintain pristine sanitary conditions while maximizing daily line throughput.

Part 2: Technical Deep Dive: The 6 Core Architectural Upgrades of the RQ-ZH-130W

The commercial success of the RQ-ZH-130W Sachet Cartoning Machine is rooted in its mechanical departures from standard cartoning designs. Below is an engineering breakdown of the seven specific features built to eliminate operational errors and maximize line stability.

Upgrade 1: Advanced Collimation Feeder for Precise Sachet Sorting

Flexible stick packs are inherently chaotic when discharged from primary vertical packaging machinery. They slide, overlap, and arrive at irregular intervals. A standard Carton Box Packing Machine trying to receive this chaotic flow will inevitably jam.

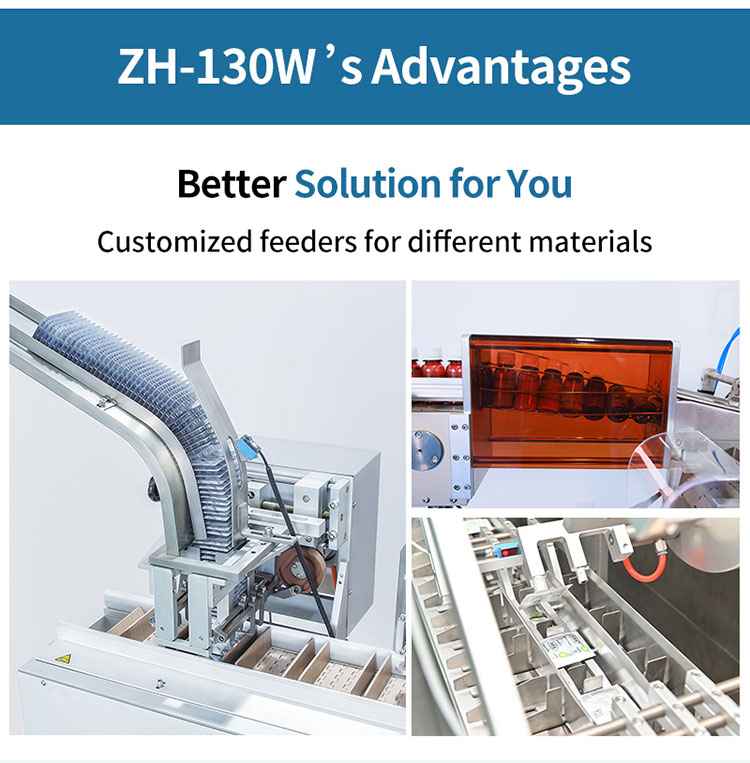

● The Engineering Solution: The RQ-ZH-130W replaces basic drop-chutes with an intelligent, automated collimation sorting feeder. This module utilizes a series of independent vibratory tracks and mechanical guide rails that capture the irregular flow of stick packs and mechanically align them into a perfectly ordered, single-file arrangement.

● The Commercial Benefit: By transforming a chaotic material stream into a predictable, structured layout, the Sachet Cartoning Machine eliminates human intervention at the induction phase, allowing the secondary packaging line to match the maximum output of high-tier multi-lane stick pack machinery.

Upgrade 2: Preset Grouping Push Mechanism (Zero-Error Stacking)

European and American consumers demand exact quantities, and a single missing pouch in a retail box can destroy brand trust and trigger retailer penalties. Furthermore, marketing strategies often require intricate cartoning layouts, such as stacking ten sticks in a 5x2 double-layer grid.

● The Engineering Solution: The RQ-ZH-130W features a servo-driven, preset grouping and counting push mechanism. This system counts individual pouches as they pass through the collimation channel and accumulates them into precise mechanical gates. Once the target number is reached, the mechanism executes a smooth, positive-displacement stroke to push the entire bundle forward.

● Flexibility Matrix: The system is fully configurable to support both single-layer layouts and double-layer pouch stacking configurations within the cardboard box. The pusher operates with mechanical synchronization, ensuring a zero-error count per box regardless of the pouch film's slipperiness or thickness variations.

Upgrade 3: Planetary Wheel Carton Suction & Opening Mechanism

At speeds exceeding 100 cartons per minute, the process of extracting a flat cardboard blank from the magazine and erecting it into a perfect three-dimensional box is highly prone to failures. Simple linear pull-vacuum systems often misalign the cardboard, causing warped cartons and line stoppages.

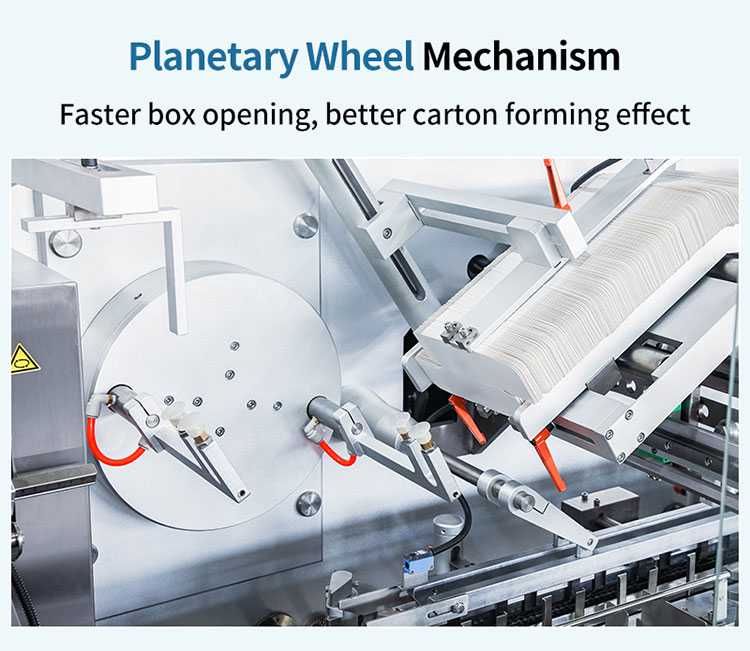

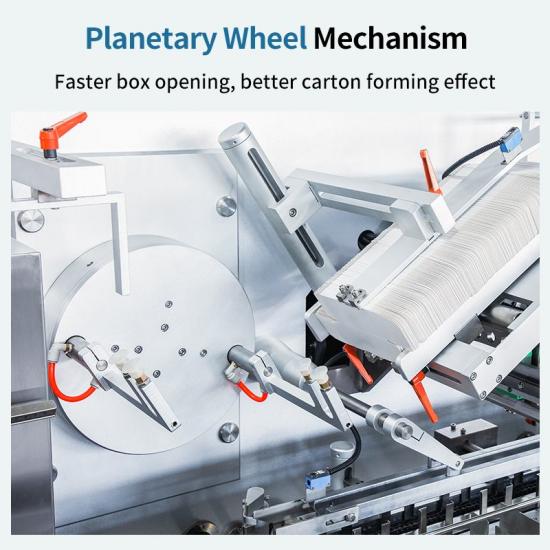

● The Engineering Solution: The RQ-ZH-130W Sachet Cartoning Machine utilizes a state-of-the-art planetary wheel extraction and suction system. Multiple vacuum cups rotate on a planetary gear indexing head, approaching the flat carton magazine at a tangent.

● The Kinetic Advantage: The planetary motion ensures that the cardboard blank is pulled down and forced open symmetrically from both sides simultaneously. This high-speed, positive mechanical opening action guarantees an exceptional carton forming effect, even when working with stiff, high-density recycled paperboard or cartons with stubborn, pre-glued seams.

Upgrade 4: Multi-Point Intelligent Auditing Sensor Array

An automated packaging line is only as good as its quality control logic. If a machine blindly cartons empty compartments or fails to detect a missing leaflet, it creates downstream liability.

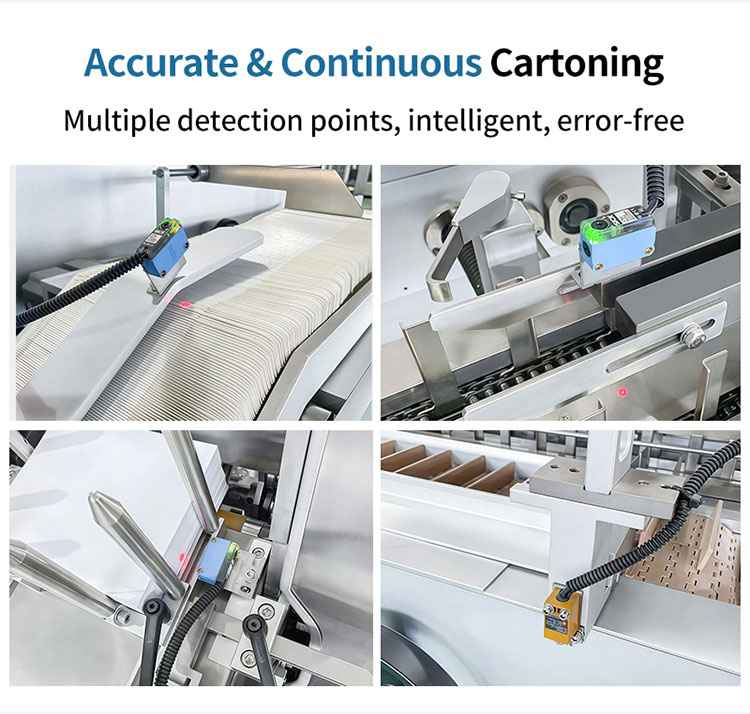

● The Engineering Solution: This advanced Sachet Cartoning Machine is built with a comprehensive network of fail-safe photoelectric sensors that continuously audit every step of the packaging cycle:

1. Pouch Presence Detection: Verifies that a valid pouch bundle is ready before a box is drawn.

2. No Material - No Carton Logic: If a product slot on the conveyor arrives empty, the machine automatically skips carton extraction for that cycle, saving valuable packaging material.

3. Leaflet Insertion Verification: Ensures the user manual or informational brochure is successfully placed alongside the product.

4. Box Jam Detection: Instantly stops the line if a structural deformation occurs down the track.

● The Operational Benefit: This multi-point monitoring loop transforms the unit into an intelligent, error-free system. Any defective or incomplete package is automatically flagged and diverted via a pneumatic rejection gate at the discharge chute, ensuring that 100% of finished stock shipped to retailers is completely flawless.

Upgrade 5: Servo-Driven Carton Feeding Mechanics

Traditional cartoning equipment relies heavily on complex mechanical linkages, chains, and overhead cams to move cartons through the machine. Over time, these mechanical parts stretch and wear, leading to timing errors and jerky movements at high speeds.

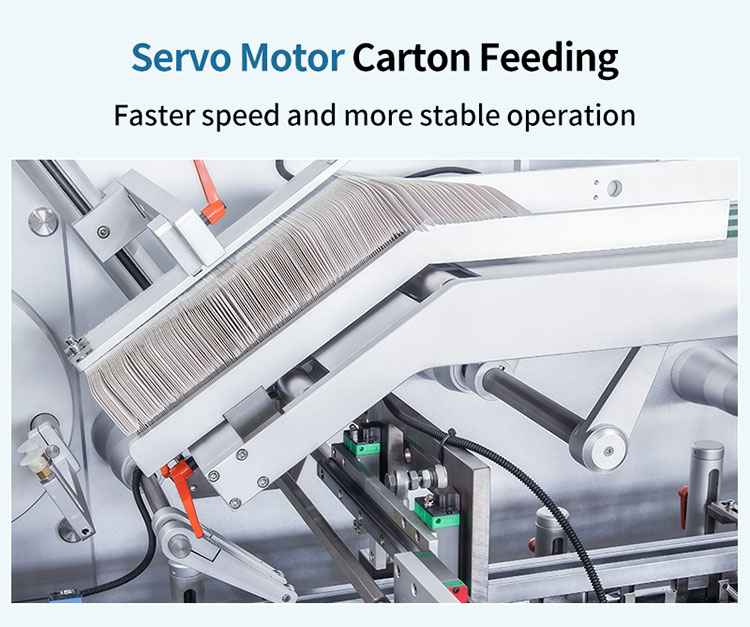

● The Engineering Solution: The box-feeding and transport architecture of the RQ-ZH-130W is governed by a dedicated, high-torque servo motor drive network.

● The Operational Benefit: The servo drive provides perfectly linear, vibration-free kinematics. It allows for ultra-smooth acceleration and deceleration profiles during the transport cycle. By eliminating the mechanical backlash common in older Automatic Carton Box Packing Machine For Sticks designs, the machine runs significantly quieter, experiences less wear, and maintains absolute positioning accuracy over decades of multi-shift operation.

Upgrade 6: Centralized Siemens PLC Control Architecture

A high-efficiency Sachet Cartoning Machine requires an electronic control system capable of processing hundreds of sensor signals every millisecond without lag.

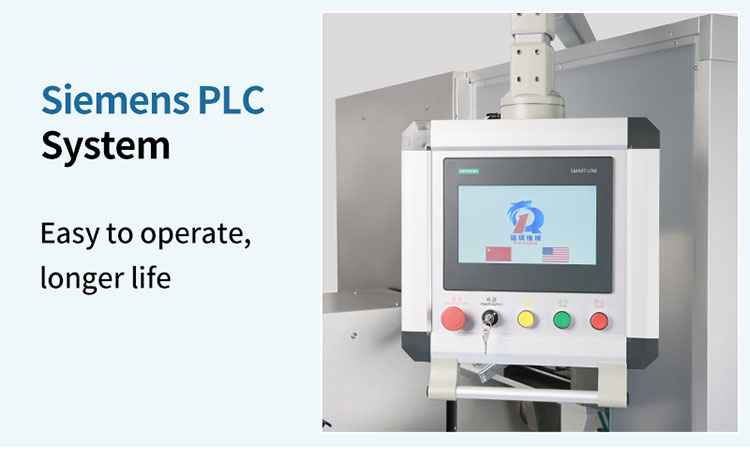

● The Engineering Solution: The entire operational framework of the RQ-ZH-130W is anchored by an industrial-grade German Siemens PLC coupled with a high-definition, responsive Human-Machine Interface (HMI) color touch screen.

● The Technical Advantage: The Siemens architecture ensures long-term operational stability, elite processing speeds, and global ease of component sourcing. The HMI translates complex machine kinematics into a simple, user-friendly control experience. Operators can recalibrate pusher stroke lengths, modify sensor timings, monitor real-time OEE metrics, and access explicit fault-diagnostic logs instantly, rendering the machine accessible to personnel of varying experience levels.

Part 3: Operational Comparison: RQ-ZH-130W vs. Legacy Equipment

For a commercial procurement team, justifying capital expenditure requires a clear understanding of performance differentials. The table below illustrates the stark operational advantages of the RQ-ZH-130W over standard generic cartoning platforms.

Part 4: Maximizing Total Cost of Ownership (TCO) and Production Value

When European and American procurement executives evaluate a Cartoning Machine for Stick, the financial calculation must extend beyond the initial purchase price to consider long-term operating costs.

1. Drastic Packaging Material Savings

The absolute precision of the planetary suction wheel and the servo-driven pusher prevents carton deformation. In standard machinery, a single misfeed can ruin an entire string of cartons before the line can be stopped. The RQ-ZH-130W’s "No Material - No Carton" sensor logic ensures that zero cardboard blanks are sacrificed due to upstream feeding variations. Over a year of high-speed manufacturing, this savings in cardboard costs can return thousands of dollars directly to your bottom line.

2. Elimination of Labor Overhead

Because the RQ-ZH-130W functions as a fully Automatic Carton Box Packing Machine For Sticks, it can be linked directly to your upstream multi-lane stick pack VFFS line via a smart conveyor bridge. The machine manages its own sorting, grouping, loading, and defect rejection. This complete automation removes the need for dedicated manual packing staff, allowing you to reallocate your workforce to higher-value roles within the facility.

3. Reduced Lifetime Tooling Overhead

Many commercial facilities shy away from automated cartoning because of the massive costs associated with buying new change parts for different box sizes. Rich Packing resolves this through structural modularity. The RQ-ZH-130W is engineered with quick-adjust scales and fast-mount components. When changing from a small 5-count box to a large 30-count retail display carton, you only need to swap specific modular guides rather than purchasing a completely new tool set, keeping your long-term inventory costs exceptionally low.

Part 5: Complete cGMP Compliance and Structural Integrity

For European and North American buyers operating under the watchful eye of the FDA, EMA, and national health boards, machinery construction is inseparable from regulatory compliance.

● Premium Materials: The entire structural frame and skin of the RQ-ZH-130W are fabricated from high-grade SUS304 stainless steel. All mechanical components that come into direct contact with your product are forged from premium, chemically inert SUS316L stainless steel or medical-grade, anodized aluminum alloys.

● Hygienic Balcony Design: The machine utilizes a sanitary, open-architecture layout. Mechanical driving gears, motors, and grease lines are completely isolated at the rear of the machine, safely enclosed away from the front operating zone. This eliminates any possibility of lubricating oils contaminating your food or pharmaceutical pouches and allows for effortless washdowns that pass rigorous sanitary audits with ease.

Part 6: Summary: Future-Proofing Your Packaging Enterprise

The secondary packaging phase should never be the factor that limits your factory’s daily throughput. The Rich Packing RQ-ZH-130W Horizontal Sachet Cartoning Machine represents a reliable, highly efficient solution to the unique mechanical challenges posed by flexible stick packs and sachets.

By blending the brute reliability of a Nodular Cast Iron foundation with the digital intelligence of a Siemens PLC control loop, planetary wheel suction, and servo-driven collation tracks, the RQ-ZH-130W ensures that your product is packaged quickly, accurately, and beautifully every single shift. Stop allowing manual packing lines or underpowered generic machinery to bottleneck your enterprise's true growth potential.

FAQ: Expert Technical Clarifications for Commercial Buyers

Q1: Can the RQ-ZH-130W handle both powder stick packs and liquid gel sachets on the same line?

A: Yes, absolutely. The automated collimation sorting conveyor and the servo grouping push mechanism are completely agnostic to the internal state of the pouch. Whether the stick contains loose powder, granules, or viscous liquid gels, the machine handles the outer laminate surface with the same precision, making it an incredibly versatile Sachet Cartoning Machine asset.

Q2: How does the machine handle the inclusion of consumer leaflets or informational booklets?

A: The RQ-ZH-130W can be equipped with an integrated, high-speed automatic leaflet folding and insertion module (such as a GUK system). The system automatically takes a flat paper leaflet, folds it according to your specification (cross-fold or Z-fold), and inserts it into the cardboard box along with the stick pack bundle.

Q3: How long does it take an operator to switch the machine from one carton size to another?

A: Thanks to the calibrated scale markings on our handwheels, digital position indicators, and the modular design of the change parts, a standard machine operator can complete a full format changeover in approximately 15 to 30 minutes without requiring specialized mechanical tools or an engineer.

Q4: Can the RQ-ZH-130W be integrated directly with an upstream multi-lane stick pack machine?

A: Yes. This is its primary deployment mode. Rich Packing designs custom smart synchronization conveyors that take the multi-lane discharge from your VFFS machine, consolidate it, and feed it directly into the collimation system of the Sachet Cartoning Machine for a 100% automated, touchless production line.

Q5: What type of box closing methods are supported by this line?

A: The machine is highly modular and can be configured at the factory to support standard mechanical tuck-in closures, interlocking safety flaps, or an automated hot-melt glue sealing system utilizing industry-standard units like Nordson or Robatech.
