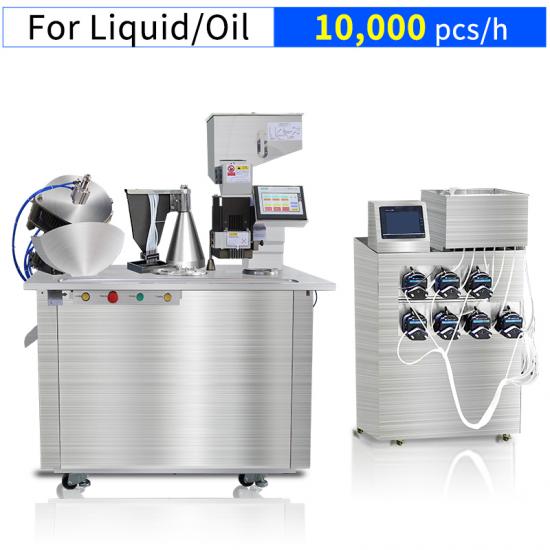

NJY 300C Oil Capsule Liquid Filling Machine

For Filling Hard Capsule With Oil Liquid Solution | Provide Door-To-Door On-Site Service|Only 14 Minutes to Change Mold|3 Years Warranty|2 Weeks Delivery|Global On-Site Service|Factory Price|Producing Capsule Filler Filling Machine Since 1993|Lifetime Free Maintenance and Spare Parts. Global Capsule Filling Machine On-Site Services|Precise Capsule Filling for #00 to #3|Passed SGS,CE,ISO,GMP

  • Product Name

    NJPY-300C Liquid Capsule Filling Machine
  • Certification

    cGMP CE ISO SGS and etc.
  • Lead Time

    14 Days Fast Delivery.
  • Loading Port

    Yantian Port, Shenzhen / Yangshan Port, Shanghai
  • Product Function:

    For Hard Shell Capsule Size 000,00,0,1,2,3,4,5# Filling
  • After-Sales Provided:

    Engineers available to service machinery overseas.
  • Warranty:

    3 Years
  • MOQ.:

    1
  • Product Detail

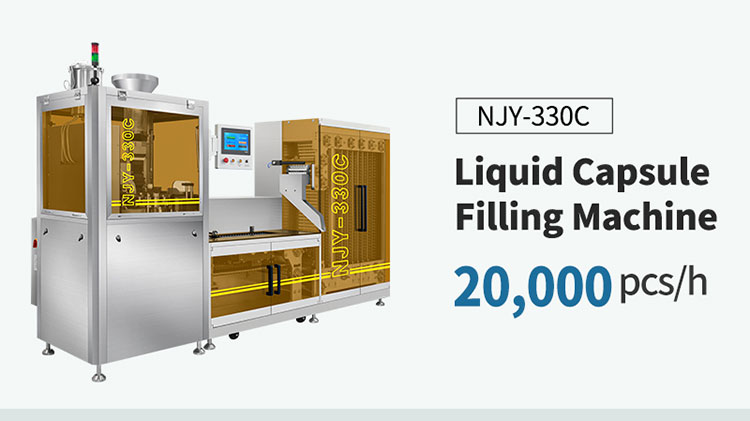

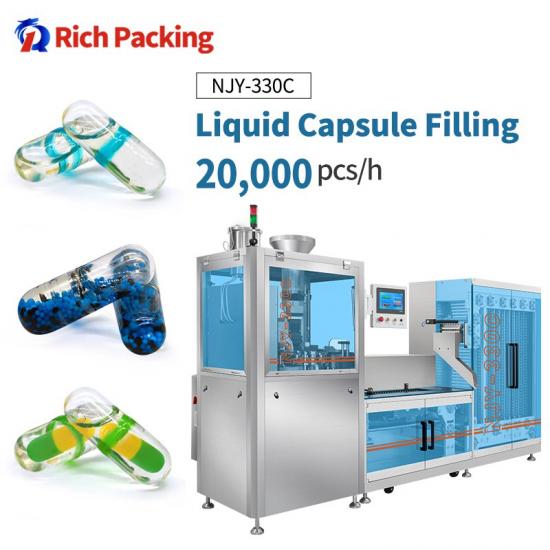

NJY 300C Oil Capsule Liquid Filling Machine By Rich Packing








capsule filling auto

capsule liquid filling machine

automatic capsule filling machine

automatic capsule filling machine



auto capsule filler



liquid capsule filling machine size 1

capsule filling company

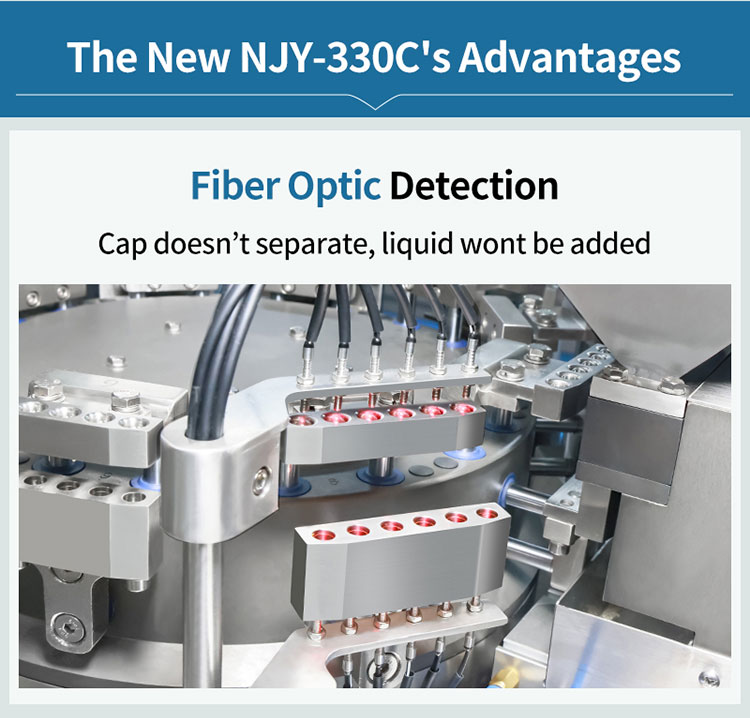

Why is the RICH PACKING oily filled gelatin hard shell hollow capsule liquid filling machine running so stable? Because the NJY300C type model comes with a very good precision and real time running detection system, once a machine error occurs during operation, this capsule machine will eliminate that part of the defective product in real time. ***  Applications

***  The another important guarantee of 300C is that the super enclosed structure of the NJY model capsule machine will effectively prevent the powder and dust brought by the external environment from entering the capsule machine’s inner turntable.

***  So the capsuling operation is stable and the error’s rate is extremely low during the running process of completing the capsuling production of hard shell capsule products.

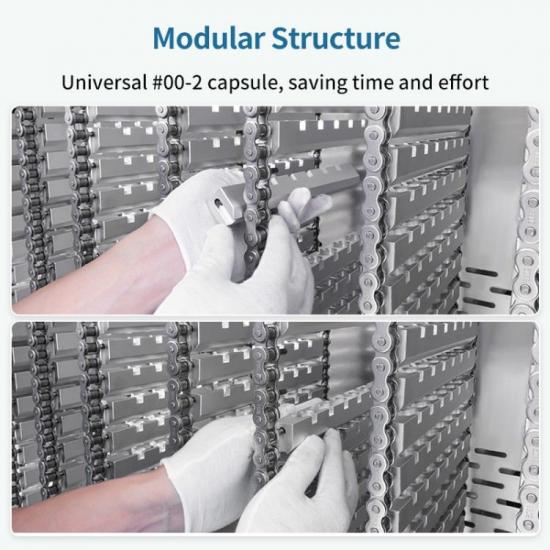

***  This capsule liquid filling machine adopts the fully auto functions, and the structure of the quick mould changing ensures that the complete set of moulds can be replaced within fourteen minutes, while 300C also protecting the material capsule packaging materials.

***  Why choose ours NJY-300C model? The time for changing moulds be shortened to 14 minutes. This efficiency making more time for the pharmaceutical factory to use for other tasks.

This type of hard shell capsule liquid filling machine and making machine only needs to spend a very small amount of the production cost, but 300C can bring considerable production capacity to pharmaceutical and packing factories.
The RICH PACKING’s NJY 300C equipped with the heart of the intelligent system will automatically display the various states and the data in the running process on the CNC machining visual screen, effectively improving the efficiency of capsuling production and the troubleshooting.

***  Technical parameter

Production capacity

300pcs/min

Net weight of machine

750KG

Overall size of machine

860*960*1800mm

Power

380V    50Hz

Total power

5KW

No.of segment bores

6

Noise

<75DB(A)

Making rate

Empty capsule 99.9%   Full capsule 99.8%

Filling error

≤2%

Applicable product

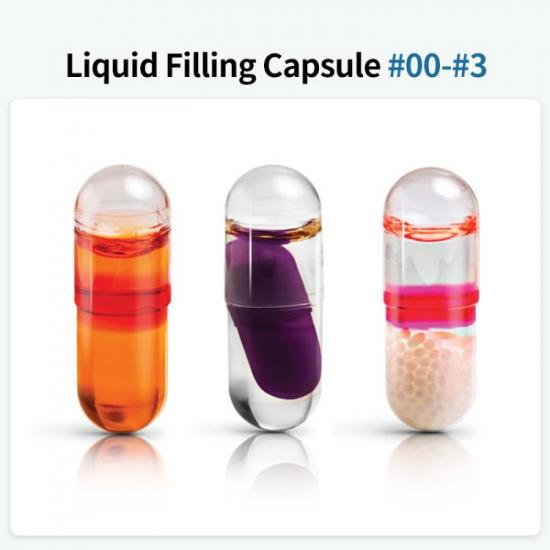

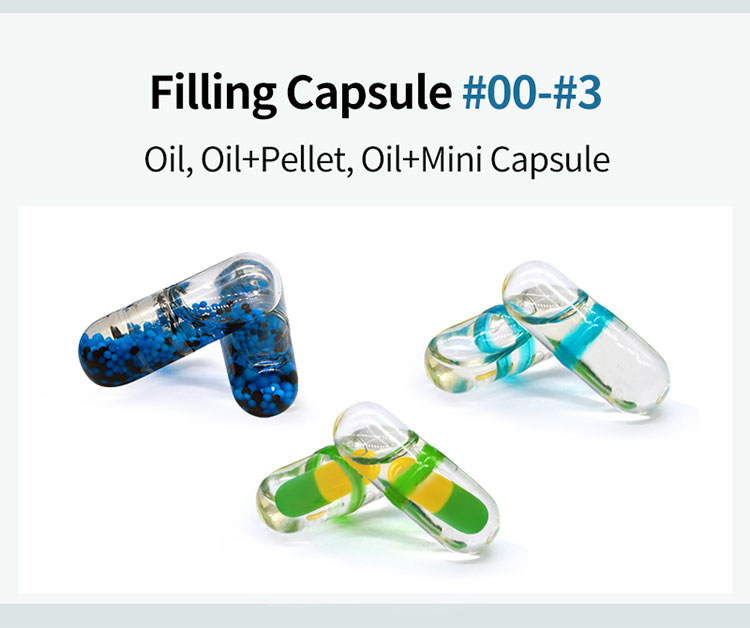

00-3# gelatin capsule, methyl cellulose, plant capsule



***  Configuration

Item

Specification

Qty.

Manufacturer

Touch screen

6AV6648-0BC11-3AX0

1

Germany Siemens

PLC

6ES7/288-1ST30-0AA0

1

Germany Siemens

Frequency converter

MODECVFD015 B21A

2

Taiwan Delta

Intermediate relay

MY2NJ

2

Omron

AC Contactor

3TB42

4

SIEMENS

Switch

S-50-24

1

Taiwan Mingwell

Main Motor

R37DM90LS4

2

Germany SEW

Servo Motor

SGM7J-04AFC6S

2

Japan Yaskawa

Vacuum pump(dry)

KRX3-P-VB-03

1

Japan Orion

Detection optical fiber

FS-N18N

4

Japan Keyence

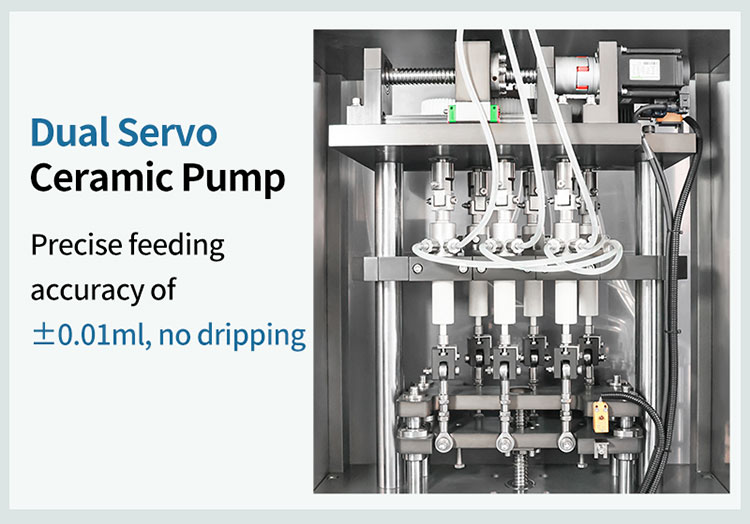

Ceramic pump

0.2-0.5ML

2

Shenzhen

Transmission bearing

Bearing

90

Japan

Cam

RU-63DS10

1

Taiwan Safepower



Want to know about this product?

SEND A MESSAGE
Something isn’t Clear?

Feel free to contact me, and I will be more than happy to answer all of your questions.

Related Products
Vertical Carton Packing Machine
ZH 120L Automatic Packing Box Cartoning Machine
3 Years Warranty and Lead Time in 21 Days Delivery, These automatic carton box packing machine vertical has formed finally the advantages of small space through rigorous and scientific making. It's not only smaller than these horizontal model, but also have the better space occupy and volume advantages compared with those similar vertical types. We Rich Packing scientifically designed a machinery similar to a car clutch in our 120L.
Capsule Machine Half Automatic
CGN-208D Capsule Machine Half Automatic
Counted among the trusted partners of Fortune 500 companies, RichPacking leverages over three decades of manufacturing prowess and superior service quality to distribute its 208D Capsule Filling Machine in over 80 countries and territories worldwide. Recognized as a leading manufacturer in China, RichPacking concentrates on delivering reliable pharmaceutical manufacturing equipment, earning considerable customer accolades for its top-tier after-sales service.
Size 1 Capsule Filler Machine Automatic
Size 1 Automatic Capsule Filler Machine
This NJP-400 C capsule filler machine is to made to fill into the powder and pellets into hard  hollow type capsules. NJP 400 C Can finished 24100 in one hour, fit to the size of capsules in size 000,00,0,1,2,3,4,5 number of 400 C. 400 C for used in the small scales factory of pharmaceutical industries and small pharmacy sub-package and also the personnel pharmacy school to making capsules.
njp 1200 capsule filling machine
NJP1200 Capsule Filling Machine
The NJP-1200C pharmaceutical capsule filling machine represents the latest innovation in the pharmaceutical industry. It is characterized by high production capacity, intelligent operation and long life, and stands out with a high production capacity of 72,000 capsules per hour. This exceptional production speed is an irreplaceable asset for pharmaceutical companies. High production capacity means an increase in production efficiency, which helps to meet market demand faster, reduce production costs, and improve competitiveness.
pill tablet counting bottling machine

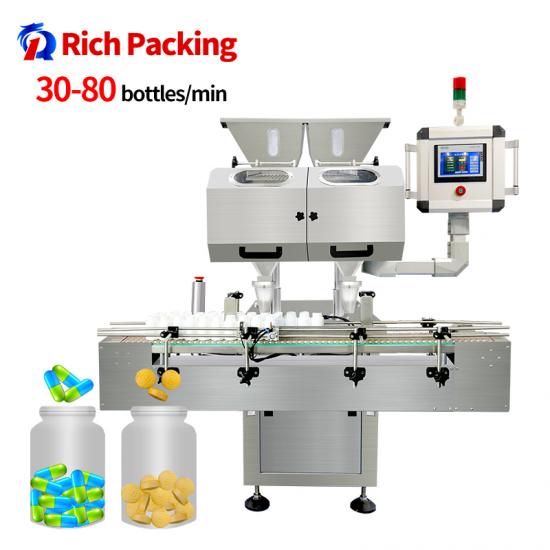

DSL-16C Pill Tablet Counting Bottling Machine
The 16 Track Tablet Capsule Counting Filling Machine of 70 bottles one minutes output is an advanced piece of equipment used in pharmaceutical and nutraceutical industries for precise counting and filling of tablets and capsules. This sophisticated machine is equipped with 16 tracks, allowing for simultaneous counting and filling operations, significantly enhancing production efficiency.
gummy bottling machine
DSL Counting Gummy Bottling Machine
Fortune 500 Partner, Counting Accuracy more than 99.98%, Patented CE Gummy Bear Candy Counting Machine. cGmp/CE/SGS, In Stock and 15 Days Delivery, Since1993. Quality Problem, Refund Directly!Gummy Bear Candy Counting Machine Repurchase Rate 94%. Factory Direct, Since 1993! Producing Gummy Pectin Candy Counter Counting Machine, Source Patented Automatic Counter Counting Bottling Machine Factory.
Pill Compressor Machine For Sale

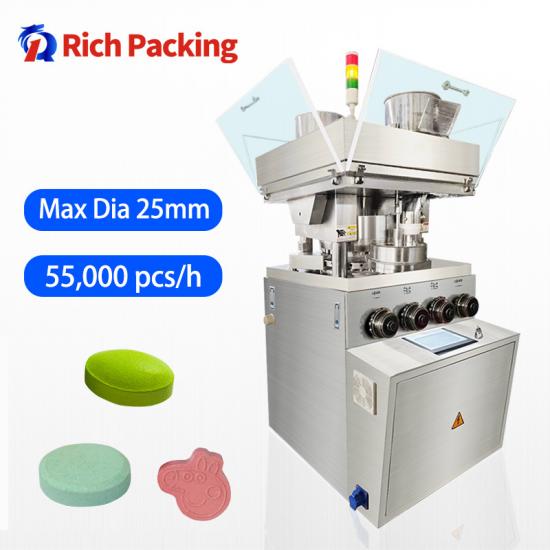

ZP 15/19E Automatic Rotary Pill Tablet Press Machine
