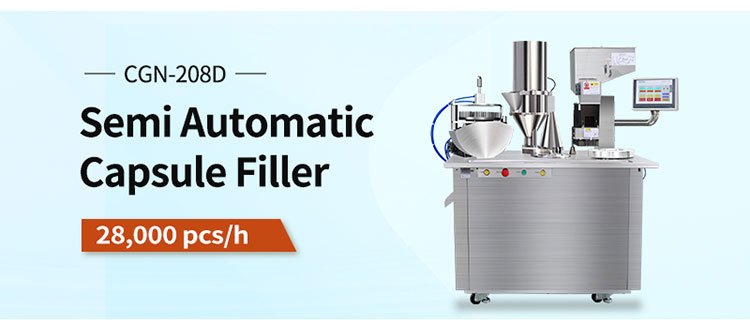

CGN-208D Capsule Machine Semi Automatic
*** Technical parameter
|
Model |
CGN-208D |
|
Max.Capacity |
30000pcs/h |
|
Applicable capsule |
000# /00# /0# /1# /2# /3# /4# /5# |
|
Power supply |
2.2kw |
|
Power |
380V/50Hz |
|
Outline dim. |
1300*800*1750mm |
|
Net weight of machine |
400kg |
|
Gross weight of machine |
500 kg |
|
Packing size |
1640*720*1700mm |
Capsule Machine Semi Automatic: The Ultimate CGN-208D Semi Automatic Capsule Filling Machine
Introduction
In the pharmaceutical, and nutraceutical capsules manufacturing sectors, the demand for reliable, compact, and cost-effective capsule filling solutions continues to rise. For small-batch production, laboratory trials, hospital pharmacies, and medium-scale enterprises, a fully automatic capsule filling line is often overkill in terms of investment, space, and operational complexity. This is where a high-performance capsule machine semi automatic becomes indispensable. Among the leading models in this category, the CGN-208D semi automatic capsule filling machine stands out with its optimized structure, precise filling control, and a maximum output of 30,000 capsules per hour. Unlike basic semi-automatic models, this machine integrates professional pharmaceutical engineering design, supporting both powder and pellet filling, horizontal capsule locking, precision CNC-machined molds, and a user-friendly multi-language HMI.
This article provides a comprehensive, science-based review of the CGN-208D semi auto capsule filling machine, covering its core applications, working principles, structural advantages, filling accuracy, operational efficiency, and compliance benefits. We focus on the six patented and engineered highlights that make this machine a top choice for global buyers: dual feeder compatibility, horizontal locking superiority, CNC chamfered molds, wide-coverage powder pressing plates, arc-fit locking design, and multi-language touchscreen control. Whether you are searching for a semi automatic capsule making machine for startup production or upgrading from manual filling, this guide will help you understand why the CGN-208D capsule filling machine semi automatic format delivers consistent value, stability, and return on investment.
1. Core Applications of the CGN-208D Capsule Machine Semi Automatic
The CGN-208D semi automatic capsule filling machine is a versatile workhorse designed for small-to-medium batch capsule production across multiple industries. Its balanced speed, compact footprint, and gentle handling make it suitable for:
1.1 Pharmaceutical Manufacturers
Ideal for producing small-batch medicine production, clinical trial materials, and hard gelatin capsule products. It complies with GMP design principles and supports #000 to #5 capsule sizes, covering nearly all standard oral solid dosage requirements.
1.2 Nutraceutical & Health Supplement Brands
Perfect for filling vitamin blends, mineral powders, herbal extracts, and pellet-style supplements. The machine’s dual-feeder design allows simultaneous or separate filling of powder and micro pellets, supporting multi-component formulations widely used in the supplement industry.
1.3 Hospital Pharmacies & Compounding Centers
Suitable for in-hospital capsule preparation, personalized formulations, and small-batch dispensing. Its semi-automatic operation reduces labor intensity while maintaining high filling accuracy.
1.4 Laboratories & R&D Institutions
Used for formula development, sample production, and stability testing. The machine’s easy adjustment and quick mold change enable rapid switching between different formulations and capsule sizes.
1.5 Small & Medium-Sized Enterprises (SMEs)
A cost-effective alternative to fully automatic lines. The CGN-208D achieves up to 30,000 capsules per hour, balancing productivity and affordability for growing businesses.
With its broad material compatibility and stable performance, the CGN-208D capsule machine semi automatic has become a preferred solution for manufacturers seeking a durable, low-maintenance, and high-accuracy semi auto powder capsule filling machine.
2. Key Technical Overview: 30,000 Capsules Per Hour
The CGN-208D is engineered to deliver consistent output without compromising precision. Its core performance parameters include:
• Maximum Production Capacity: 30,000 capsules per hour

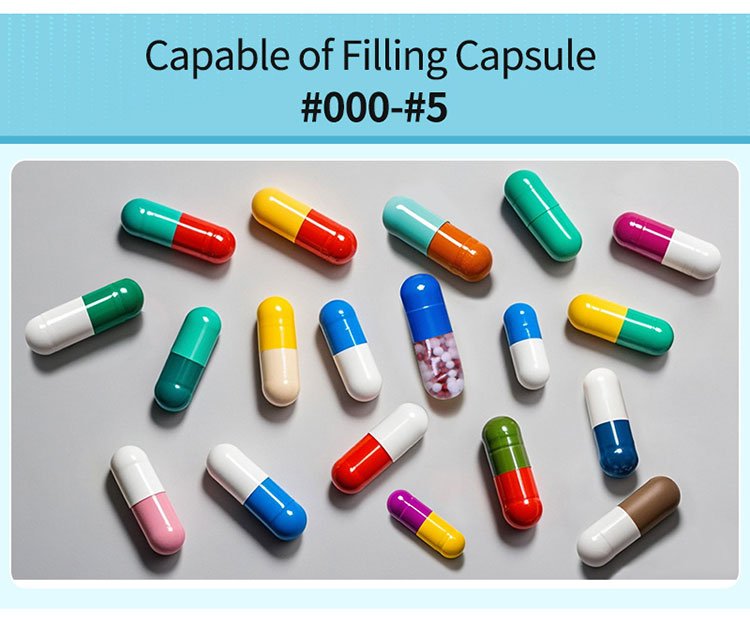

• Applicable Capsule Sizes: #000 - #5
• Filling Materials: Dry powder, micro pellets, granules
• Operation Mode: Semi-automatic (electric-pneumatic control)
• Accuracy: High filling consistency with low deviation
• Structure: Stainless steel construction compliant with GMP
• Footprint: Compact for small workshops and laboratories
Unlike low-cost semi-automatic machines that suffer from uneven filling, capsule breakage, powder leakage, and low efficiency, the CGN-208D integrates six professional design improvements to solve these pain points systematically.
3. 6 Advantages of the CGN-208D Semi Automatic Filling Capsule Machine

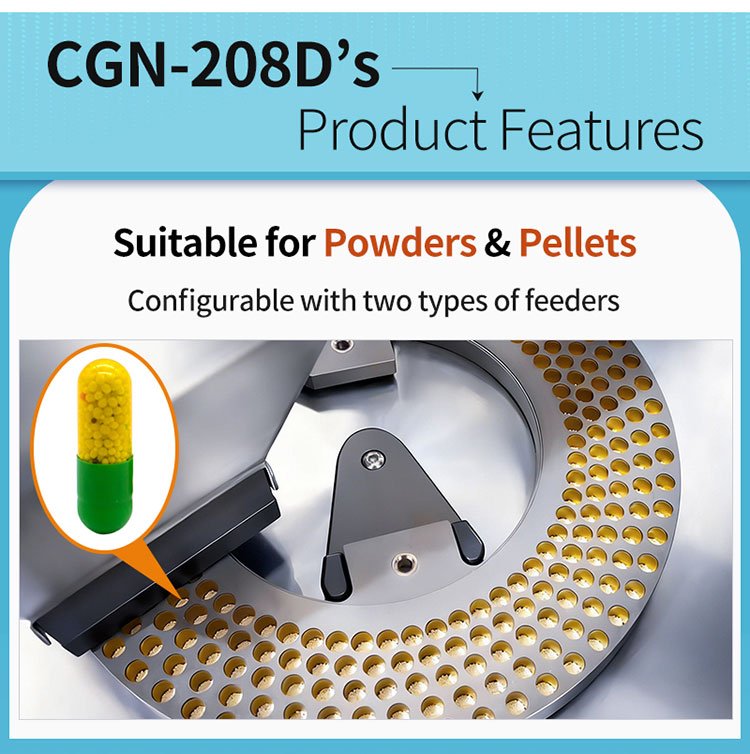

3.1 Dual Feeder System for Powder & Pellet Filling
A standout feature of the CGN-208D capsule machine semi automatic is its ability to support two types of feeders simultaneously, allowing operators to fill both powder and micro pellets in one machine. This dual-function design eliminates the need to purchase separate machines for different materials, saving cost, space, and workflow complexity.
• The powder feeder ensures uniform dosing of fine, loose, or blended formulations.
• The pellet feeder handles micro pellets, granules, and sustained-release pellets smoothly without damaging beads.
• Switching between powder and pellet modes is fast and tool-free.
• Ideal for multi-component supplements, layered doses, and complex pharmaceutical formulas.
This dual-feeder structure makes the CGN-208D one of the most flexible models in the semi auto capsule filling machine category, supporting diversified production demands in a single unit.

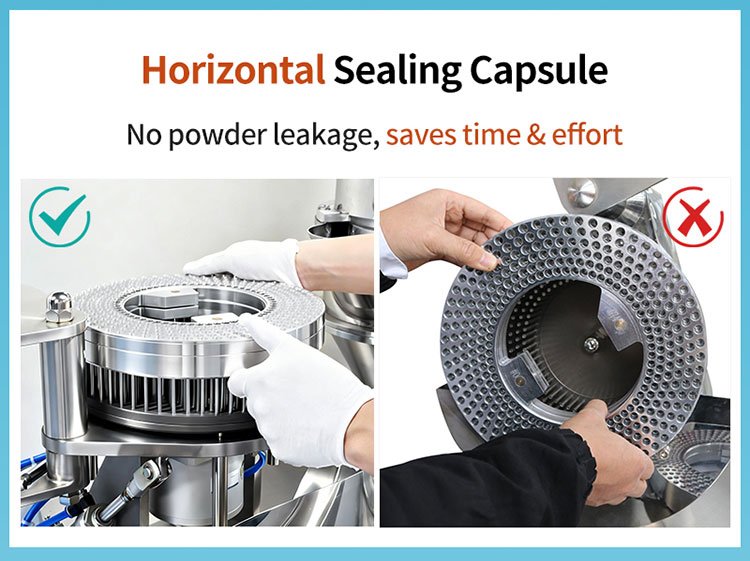

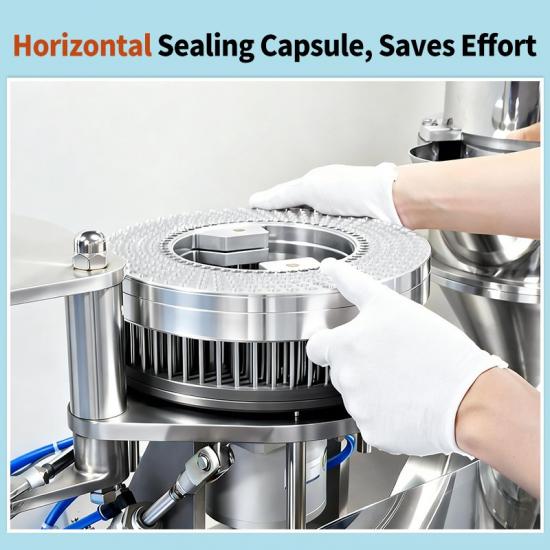

3.2 Horizontal Capsule Locking vs Vertical Locking: Leakproof & Labor-Saving
One of the most significant engineering advantages of the CGN-208D is its horizontal capsule locking system, which outperforms traditional vertical locking in nearly every practical aspect.
In a vertical locking mechanism:
• Capsules are locked vertically, leading to frequent powder spillage.
• Friction and alignment errors cause high capsule breakage rates.
• Operators experience more fatigue due to uneven force distribution.
• Cleanup is frequent, reducing effective working time.
In contrast, the CGN-208D’s horizontal locking design:
• Locks capsules in a horizontal posture, preventing powder leakage during closing.
• Ensures even force distribution, avoiding cap damage or incomplete locking.
• Reduces operator fatigue with smoother, lower-resistance action.
• Maintains a cleaner working environment with minimal dust emission.
• Improves finished capsule appearance and yield rate.
For manufacturers prioritizing cleanliness, yield, and ease of use, the horizontal locking system makes the CGN-208D a superior choice over conventional semi automatic capsule filling machines.

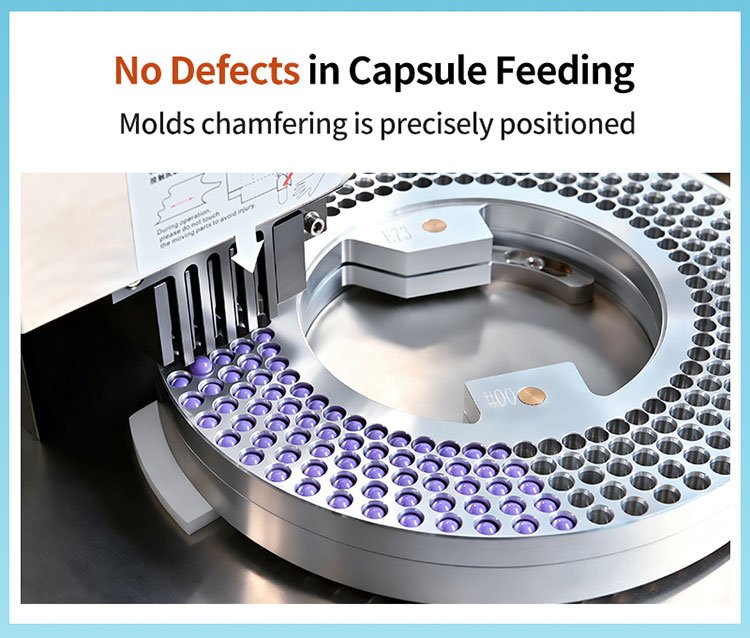

3.3 CNC-Machined Chamfered Molds for Smooth Capsule Feeding
The CGN-208D uses precision CNC-machined molds with optimized chamfering to ensure smooth capsule feeding and zero missing capsules. Many low-cost machines use poorly finished molds that cause jams, cap damage, and incomplete filling.
Key benefits:
• CNC machining ensures high dimensional accuracy and consistent mold geometry.
• Chamfered edges guide capsules gently into position without sticking or jamming.
• Capsule feeding is stable and continuous, reducing downtime.
• Mold surfaces are polished to prevent abrasion to capsule shells.
• Quick mold changeover in 5–10 minutes for different capsule sizes.
This professional mold design ensures that the CGN-208D capsule machine semi automatic maintains high efficiency even during long production runs.

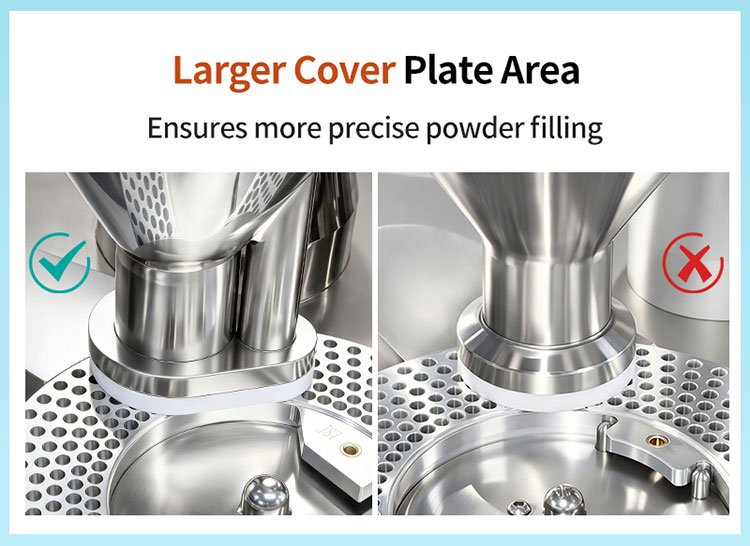

3.4 Wide-Coverage Powder Pressing Plate for Improved Filling Accuracy
Filling consistency is critical for pharmaceutical and supplement compliance. The CGN-208D uses a wide-coverage powder pressing plate that uniformly compacts powder before filling, ensuring:
• Even material distribution in every capsule
• Reduced weight variation between capsules
• Stable filling accuracy even for low-density or fluffy powders
• Prevention of bridging, voids, or uneven dosing
• Compliance with strict weight control standards
The extended coverage of the pressing plate ensures full contact with the material, eliminating inconsistencies common in basic semi auto powder capsule filling machine models.

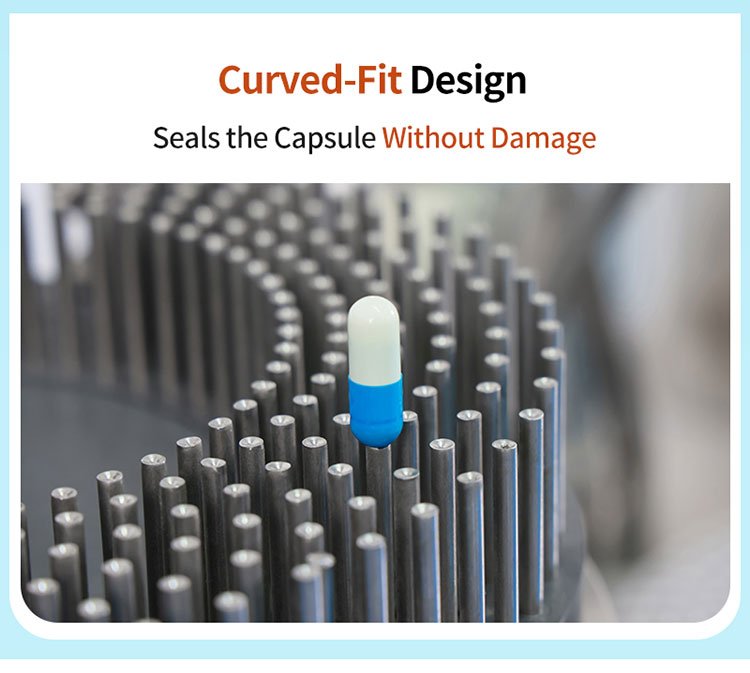

3.5 Arc-Fit Locking Design That Protects Capsules
Many semi-automatic machines use rigid, straight locking structures that crack, deform, or crush capsule caps. The CGN-208D uses an arc-fit locking design that matches the natural curvature of the capsule shell.
Benefits:
• Gentle, uniform pressure during locking
• No shell breakage, splitting, or deformation
• Perfect sealing without damaging capsules
• Higher yield and lower waste rate
• Longer service life for molds and locking components
This ergonomic engineering makes the CGN-208D ideal for fragile gelatin or vegetarian HPMC capsules.

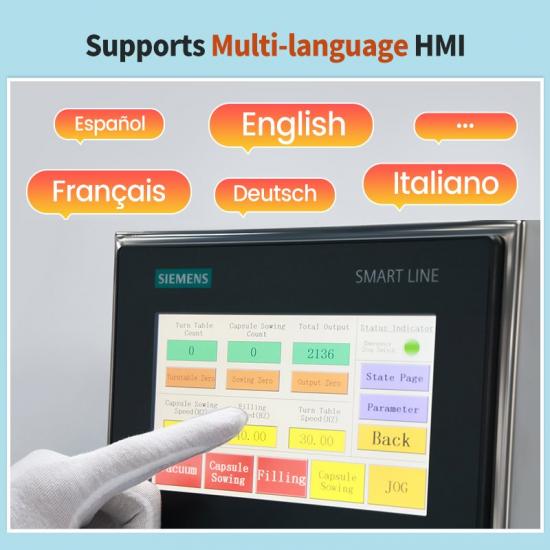

3.6 Multi-Language HMI Touchscreen for Global Usability
To support international operations, the CGN-208D is equipped with a user-friendly HMI touchscreen that supports multiple languages, including English, Spanish, French, Russian, Arabic, and more.
Features:
• Intuitive icon-based interface
• One-touch parameter setting
• Real-time production counting
• Fault diagnosis and prompt alerts
• Easy for new operators to learn
• Suitable for global factories and export markets
This multi-language capability makes the CGN-208D a truly global capsule machine semi automatic, trusted by buyers in over 80 countries.
4. How the CGN-208D Capsule Machine Semi Automatic Works
The CGN-208D follows a scientifically optimized, four-stage semi-automatic capsule filling process:
Step 1: Capsule Feeding & Separation
Capsules are loaded into the hopper and automatically oriented. The vacuum system separates caps and bodies smoothly, guided by CNC chamfered molds to prevent jams or missing capsules.
Step 2: Material Filling
Powder or pellets are fed into the capsule bodies using the dedicated feeder. The wide-coverage powder pressing plate ensures uniform density and high filling accuracy.
Step 3: Horizontal Capsule Locking
Caps are gently aligned with bodies and locked horizontally. The arc-fit design ensures tight sealing without leakage, breakage, or deformation.
Step 4: Capsule Discharge & Collection
Finished capsules are automatically discharged by cylinders, ready for inspection, polishing, and packaging.
5. Why Choose the CGN-208D Over Other Semi Automatic Capsule Filling Machines?
In the competitive market of capsule filling equipment, the CGN-208D stands out due to its professional engineering, durable construction, and user-centric design:
• 30,000 capsules per hour high output
• Dual feeder for powder and pellets
• Horizontal locking for leakproof, low-fatigue operation
• CNC precision molds for smooth feeding
• Wide pressing plate for unmatched filling accuracy
• Arc-fit locking to protect capsules
• Multi-language HMI for global use
• GMP-compliant stainless steel structure
• Easy maintenance
• Affordable cost compared to fully automatic lines
For small and medium manufacturers, the CGN-208D capsule machine semi automatic delivers professional performance at a practical cost.
Conclusion
The CGN-208D capsule machine semi automatic represents a new generation of high-performance, user-friendly, and reliable semi automatic capsule filling solutions. With a steady output of 30,000 capsules per hour, dual feeder compatibility, horizontal locking, CNC precision molds, wide-coverage powder pressing plates, arc-fit protective locking, and a multi-language HMI, it solves the most common pain points of traditional semi-automatic filling machines.
Whether you are a pharmaceutical manufacturer, nutraceutical brand, hospital pharmacy, laboratory, or growing SME, the CGN-208D semi automatic capsule filling machine delivers accuracy, efficiency, durability, and compliance at an exceptional value. For businesses seeking a robust, low-maintenance, and high-yield capsule filling solution, this machine sets a new benchmark in the semi auto capsule filling machine market.
If you are looking for a dependable, cost-effective, and professional capsule filling solution, the CGN-208D is built to elevate your production stability and product quality.
FAQ: Frequently Asked Questions
Q1: What is the maximum output of the CGN-208D capsule machine semi automatic?
A: The maximum production speed of the CGN-208D can reach 30,000 capsules per hour, depending on capsule size, material characteristics, and operator proficiency.
Q2: Can this machine fill both powder and pellets?
A: Yes. It supports two independent feeders for powder and micro pellets, allowing flexible production of various formulations.
Q3: Why is horizontal locking better than vertical locking?
A: Horizontal locking prevents powder leakage, reduces capsule breakage, eases operator labor, and maintains a cleaner production environment.
Q4: Are molds CNC machined?
A: Yes. All molds are precision CNC-machined with chamfered edges to ensure smooth capsule feeding and zero missing capsules.
Q5: Does the machine damage capsules during locking?
A: No. The arc-fit locking design matches the capsule’s curvature, applying gentle, even pressure to avoid cracking or deformation.
Q6: What languages does the HMI support?
A: The touchscreen supports multiple languages, including English, Spanish, French, Russian, Arabic, and others for global use.
Q7: How long does CGN-208D take to change molds?
A: Mold changeover takes only 5–10 minutes, enabling fast switching between capsule sizes.
