CGNT-209 Double Head Semi Automatic Capsule Filling Machine

Filling Powder From 65-975 mg | Capacity Upper to 40,000pcs/h | Free Spare Parts,7*24 Service | Free Maintenance For Lifetime | Door To Door On-Site Service | RICH PACKING Annual Production 3840 Sets | The World's Top 500 Suppliers | Passed SGS,CE,ISO,Gmp | 29 Year Manufacture Experience | High-Quality, Easy Operation

  • Product Name

    CGN-209 Semi Automatic Capsule Filling Machine
  • Warranty

    3 Years
  • Product Function:

    For Hard Shell Capsule Size 000,00,0,1,2,3,4,5# Filling
  • After-Sales Provided:

    Engineers available to service machinery overseas.
  • Certification:

    cGMP CE ISO SGS and etc.
  • Lead Time:

    14 Days Fast Delivery.
  • MOQ.:

    1
  • Loading Port:

    Yantian Port, Shenzhen / Yangshan Port, Shanghai
  • Product Detail

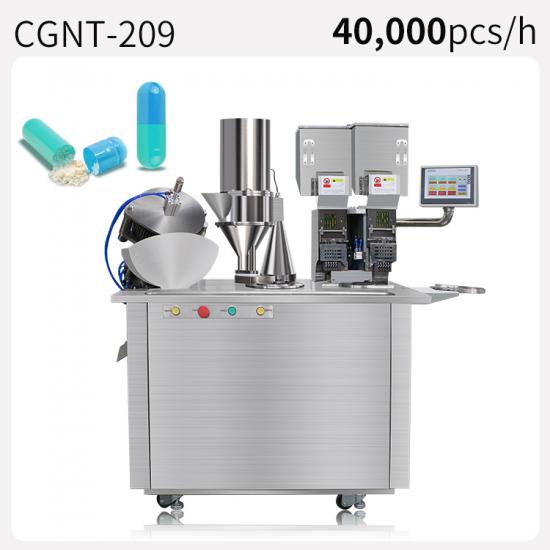

CGNT-209 Double Head Semi Automatic Capsule Filling Machine OF Rich Packing




capsule fiiller machinery

capsule filling machine

auto capsule filler

semiauto capsule filling machine

capsule filling service

semi automatic capsule filler

capsule filling company

That is the reason that the price of our RICH PACKING CGN209d semi automatic capsule filling machine is higher than other competing factory products? On this page we will tell you those of the most important improvements and advantages. We have redesigned the machine materials of the loading port on the top of the machine using the newly applied national invention patent in China.
What are the powder and the granular material addition ports of the other capsule filling machine manufacturers? The design and the manufacture of the old capsule filler machine is very simple, and the feeding of it only uses the gravity of the material by itself. In this case, it is quite very difficult feeding process for the viscous powders with a high humidity and large meshes, and will finally affect the unit dose problem at the end of the entire capsule filling working process.
The new D-type 209 capsule filling machines of our Rich Packing company have been scientifically and effectively designed and manufactured in the powder material feeding device. These CGN209dare equipped with a special cylinder valve, which is turned over by the valve controlled by the cylinders, which interferes with the controlling of unit dose addition at the beginning of the material feeding. At the same time, this machine also has the effect of forcibly feeding the viscous powder with the poor fluidity, so that the powders will not stick to the inside of the materials conveying pipe.



***  Technical parameter

Model

CGNT-209

Max.Capacity

40000pcs/h

Applicable capsule

000# /00# /0# /1# /2# /3# /4# /5#

Power supply

2.2kw

Power

380V/50Hz

Outline dim.

1300*800*1750mm

Net weight of machine

400kg

Gross weight of machine

500 kg

Packing size

1640*720*1700mm



***  Configuration

Item

Specification

Qty.

Manufacturer

Frequency converter

S310-201-H1BCD

3

Taiwan taian

Intermediate relay

MY4N-SS

9

Omron

AC relay

LC1N1210M5N

1

Schneider

breaker

IC65N C25

1

Schneider

breaker

IC65N C16

1

Schneider

Emergency stop switch

ZB2-BS54C

1

Schneider

touch screen

6AV6648-0CC11-3AX0

1

SIEMENS

PLC programmable controller

6ES7-288-1ST30-0AA0

1

SIEMENS

Photoelectric

GL-8F

1

Japanese God

Proximity switch

PR12-4DN

1

Autonics

Switching power supply

NFS-24-50

1

Mingwei



Want to know about this product?

SEND A MESSAGE
Something isn’t Clear?

Feel free to contact me, and I will be more than happy to answer all of your questions.

Related Products
Capsule Filling Machine

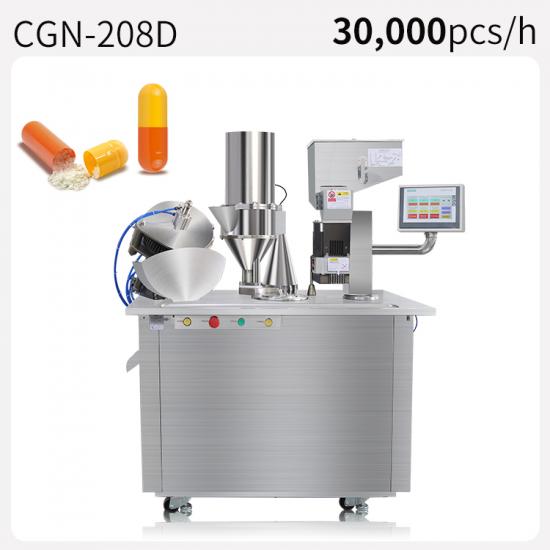

CGN 208D Capsule Filler Capsule Filling Machine
In Stock|2 Week Delivery|Factory Price|Producing Capsule Filler Filling Machine Since 1993|Automatic|Semi Automatic|Guaranteed For 3 Years|Precise Capsule Filling for #000 to #5|Passed SGS,CE,ISO,GMP|Provide Door-To-Door Oversea On-Site Service, Field installation Commissioning & Training
bottle capsule counting machine

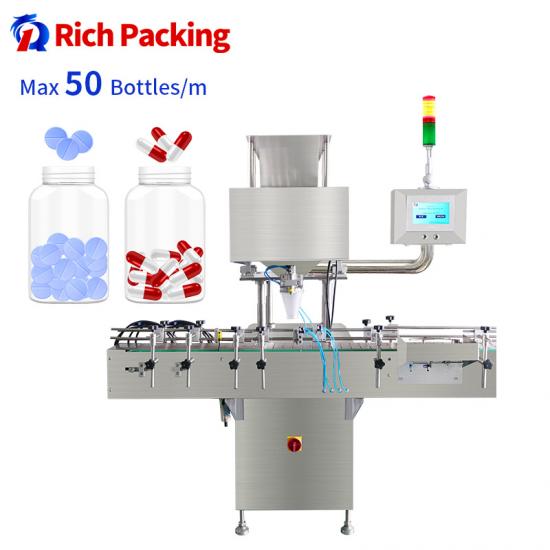

16 Channel Tablet Capsule Counter Machine
