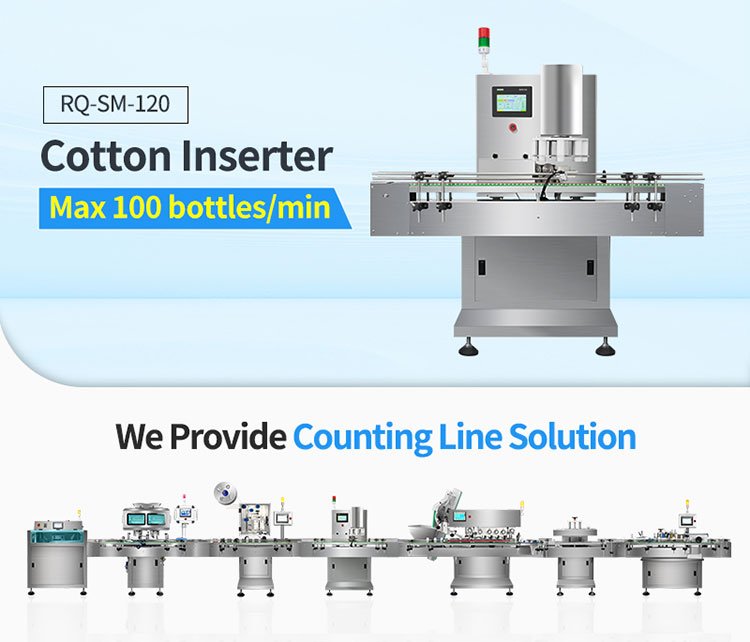

RQ-SM-120 Cotton Inserter
*** Technical parameter
|
Production capacity(bottles/min) |
50~80 bottles/min |
|
Specification of bottles |
Dia.25-70mm |
|
Outline dim. |
1600mm×750mm×1400mm |
|
Weight（kg） |
180 |
|
Power consumption（w） |
0.7kw |
|
Power supply |
220V / 50～60Hz |
Want to know about this product?
SEND A MESSAGE
Something isn’t Clear?
Feel free to contact me, and I will be more than happy to answer all of your questions.
Automatic Cotton Inserter: 5 Critical Bottling Upgrades to Stop Neck Jams and Guarantee cGMP Purity
Introduction: The Overlooked Bottleneck in High-Speed Solid Dosage Bottling Lines
In modern oral solid dosage (OSD) packaging facilities across Europe and North America, maximizing the Overall Equipment Effectiveness (OEE) of a high-speed tablet or capsule bottling line requires eliminating minor mechanical errors. When engineering teams build out a new line, they often spend most of their budget on high-precision electronic tablet counters or advanced high speed capping systems. However, the counting packaging line efficiency is only as strong as its weakest link.
In many high-volume processing environments, the single most common cause of unplanned line stoppages, product contamination, and cleanroom downtime is the secondary station responsible for inserting protective material: the automatic cottoner.
Within a high-speed cGMP capsule tablet bottling line equipment matrix, inserting a precise length of clean medical cotton coil into the container neck is an essential step. This coil protects fragile solid dosages from dynamic movement and friction damage during long-distance transit, while helping to absorb trace moisture inside the sealed container.
However, executing this process continuously on low-tier or poorly engineered machinery introduces severe quality control risks. Standard entry-level systems frequently struggle with inconsistent coil tensioning, static electricity generation, and imprecise mechanical cutting.
These operational flaws lead to unevenly cut cotton sections, frayed fibers that drop directly into the product mass, or catastrophic container neck jams. When a cotton piece catches on the bottle lip rather than seating cleanly inside the container body, downstream sensors trigger immediate line stops, resulting in expensive material rejections, lost operator hours, and compromised cleanroom purity.
Permanently overcoming these secondary solid-dosage packaging bottlenecks requires a production platform engineered around decentralized motorized control, smart sensor arrays, and advanced sanitary mechanics. The Rich Packing high-performance Automatic Cotton Inserter solves this persistent packaging challenge.
Engineered with an innovative, electronically synchronized multi-axis control drive and a pure SUS316L material path, this robust machine eliminates fiber shedding and neck jamming, providing the absolute process repeatability required by high-output medical and nutritional packaging operations.
Decoupling the Automation Loop: How an Automatic Cotton Inserting Machine Operates
To maintain absolute processing consistency across high-volume production campaigns, packaging engineers must look past generic exterior enclosures and analyze the synchronized subsystems that govern the material's lifecycle. A generic, budget-tier cottoner often relies on legacy mechanical linkages, open drive chains, and basic analog timers, which struggle to adapt to varying bottle heights and coil dimensions.
Our modernized Automatic Cotton Inserting Machine updates this sequence by employing a highly responsive, modular mechanical architecture where each phase of the feeding, cutting, and insertion cycle is driven by independent, electronically tracked workstations:
1. The Dynamic Cotton Coil Feeding and Measuring Stage
The processing cycle begins at the automatic reel station, where standard raw medical cotton, absorbent synthetic rayon, or polyester coil rolls are loaded. As the raw material unwinds, it passes through our specialized cotton coil feeding and cutting system.
Driven by dual high-torque stepping motors, the material is pulled forward through precision-ground rollers without stretching or thinning the fibers. The microprocessor control system tracks the exact length of the coil advanced per stroke, matching the parameter configuration pre-set on the central digital interface. This dynamic tracking ensures absolute dimensional uniformity from the first container to the last.
2. The Cleaving and Inverse Folding Stage
Once the precise target length of the coil enters the cutting throat, the feeding rollers lock instantly to maintain web stability. A high-speed, heavy-duty mechanical cutter executes a clean, rapid slice across the material path. Rather than utilizing a slow, crushing scissor action that creates loose dust, the system uses a high-velocity linear stroke to split the ribbon cleanly.
Immediately following the cut, an integrated, mechanical down-folding arm catches the center of the separated cotton strip, pushing it through a tight guide fork to form a dense, uniform, inverted "U" or "V" shape. This pre-folding geometry is essential for reducing the material's exterior diameter, making it easy to guide down narrow container necks.

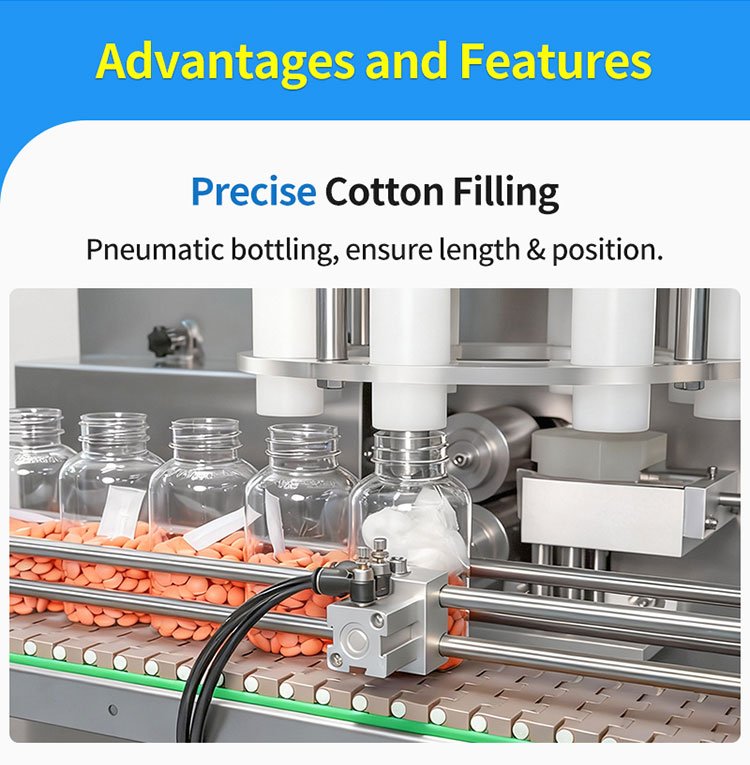

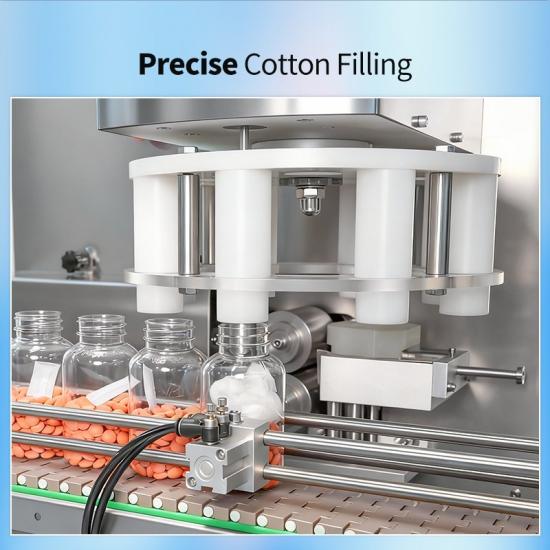

3. The Controlled Linear Plunging and Verification Stage
While the cotton section is being folded, the main conveyor line advances empty, pre-counted containers along an indexing track. High-sensitivity photoelectric sensors detect the incoming container bodies, locking them into perfect physical alignment beneath the plunging station.
Once aligned, a heavy-duty pneumatic linear cylinder extends vertically, driving a polished micro-plunging rod straight through the center of the guide fork. This action pushes the pre-folded cotton piece directly through the container neck, seating it firmly inside the container body. The plunging rod then retracts rapidly, allowing the container to advance seamlessly to the downstream capping line.
5 Mechanical Innovations of the Rich Packing Electronic Cottoner Series
The superior processing speed and exceptional purity metrics achieved by the Rich Packing high speed cottoning machine for bottles are driven by advanced metallurgy, full-process digital tracking, and strict compliance with global cleanroom guidelines. Below is an in-depth engineering analysis of the 5 core upgrades built into our automatic system.
1. High-Speed Output with Universal Container Dimension Compatibility
High-volume pharmaceutical and contract packaging facilities require machinery capable of sustaining high output speeds across a broad array of product form factors.
● The Mechanical Solution: The machine is built on a heavy-duty, vibration-dampened frame driven by an advanced, multi-axis automatic synchronization engine, achieving a verified peak production throughput of up to 100 bottles/minute.
● The Technical Benefit: The processing chamber is fully optimized to run a massive array of container shapes and sizes without requiring custom structural components. The system handles bottle diameters ranging from 40-120mm and bottle heights from 50-200mm. This structural flexibility allows facilities to run small, high-density polyethylene (HDPE) clinical bottles alongside large glass nutraceutical wide-mouth jars on a single, unified packaging asset.

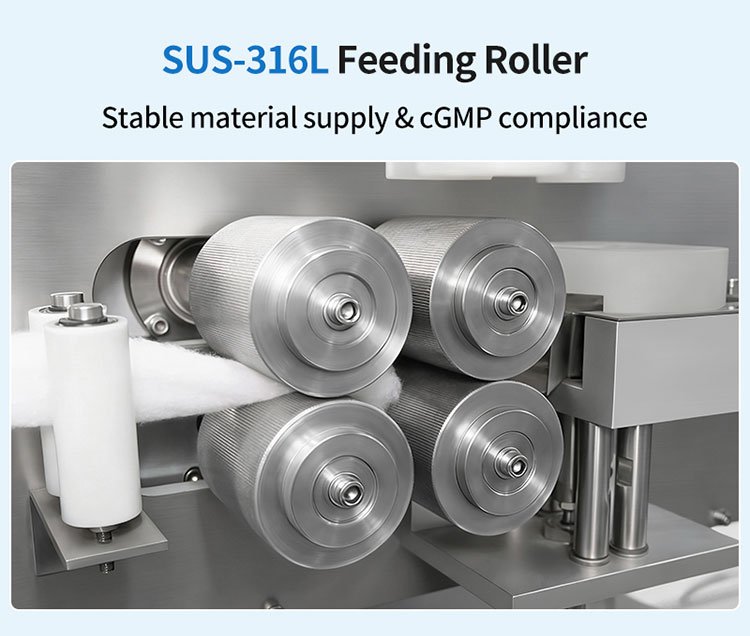

2. Full SUS316L Stainless Steel Feeding Rollers of Cotton Inserter for Absolute GMP Compliance
Running sensitive medical tablets or clean nutritional capsules requires a material path that completely eliminates the risk of cross-contamination or structural degradation over years of continuous use.
● The Mechanical Solution: The core components within the material path—including the main cotton coil feeding and cutting system rollers, guide slots, and internal contact rails—are machined from premium, solid SUS316L stainless steel.
● The Technical Benefit: By utilizing premium SUS316L alloy rather than standard industrial plating or lower-grade steels, the system eliminates the risk of surface paint chipping, electroplating flaking, or oxidative rust micro-contamination. The ultra-smooth, micro-polished steel rollers prevent fiber friction, ensuring a clean processing path that fully satisfies international GMP guidelines and passes cleanroom audits with ease.

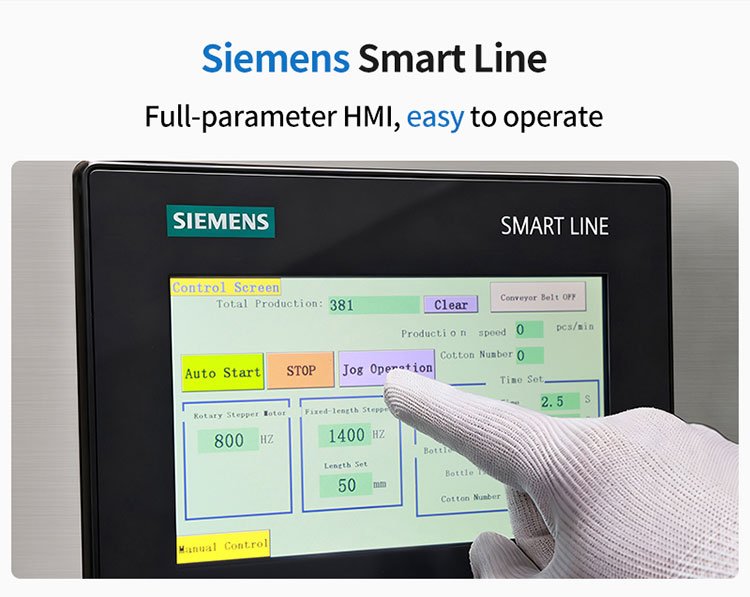

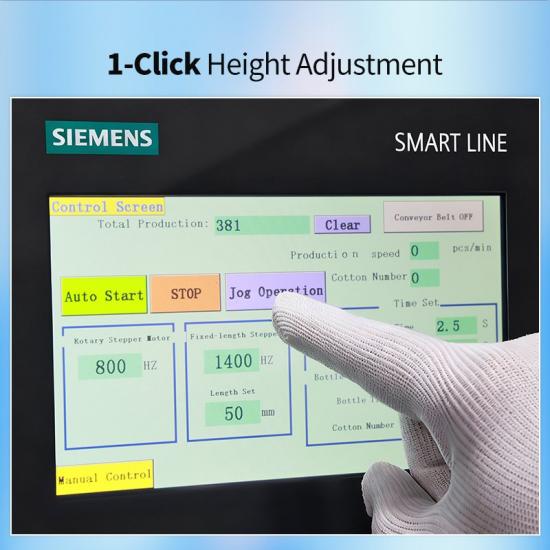

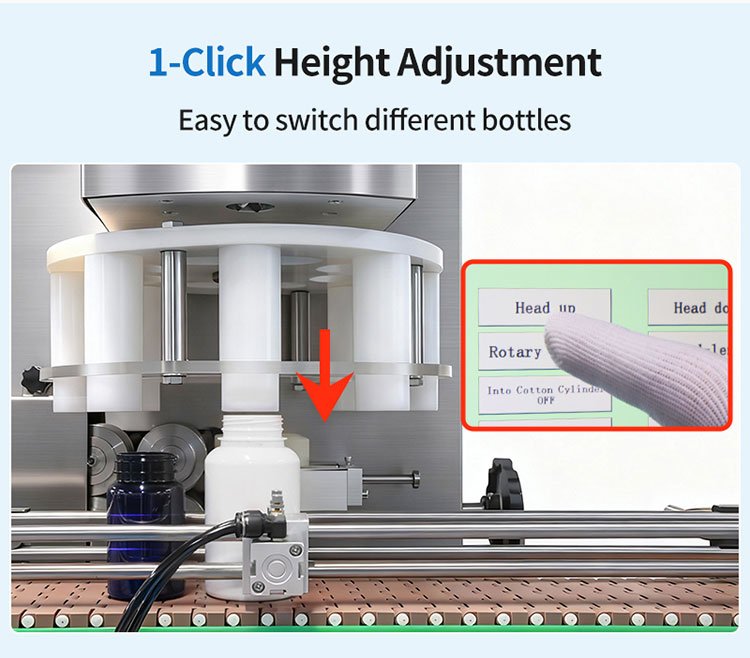

3. Smart PLC HMI Screen One-Click Automatic Height Adjustment
Traditional packaging machinery often requires operators to manually adjust mechanical hand cranks, heavy lead screws, and mechanical brackets to alter the insertion depth when changing product formats.
● The Mechanical Solution: The system replaces legacy manual handwheels with a digital motorized elevation drive linked directly to a central, touchscreen HMI console driven by an industrial Siemens PLC.
● The Technical Benefit: Operators can change the absolute height of the cotton insertion entrance instantly through the touchscreen interface with a single click. This automatic setup completely eliminates operator manual adjustments and human error during format changes, allowing the machine to adjust its physical height to match different container lengths in seconds. This speed makes it an exceptionally flexible option for contract manufacturing organizations (CMOs) handling high-mix, short-run production schedules.

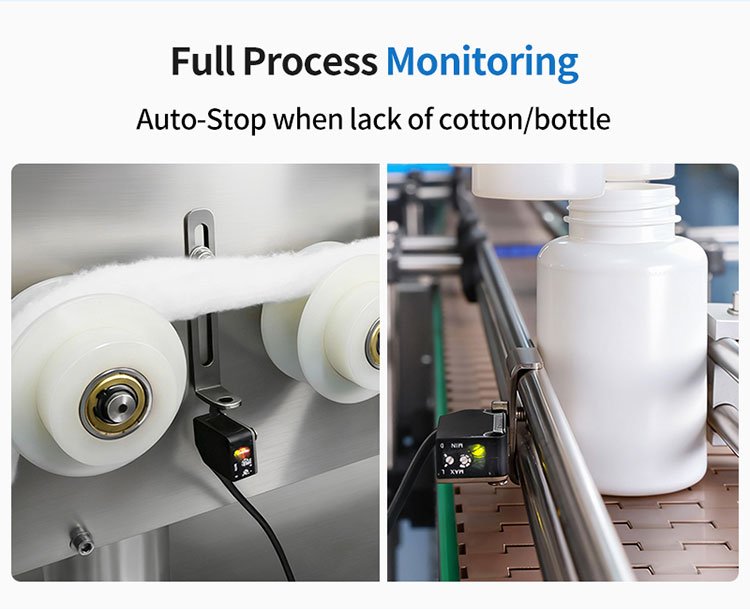

4. Advanced Full-Process Optical Detection with automatic Shutdown Safeguards
Operating a high-speed automatic packaging line introduces the risk that a raw material shortage upstream can go unnoticed, resulting in thousands of un-filled or defective final packages.
● The Mechanical Solution: The system incorporates a comprehensive, closed-loop network of high-sensitivity photoelectric tracking sensors that continuously monitor the line.
● The Technical Benefit: The system executes continuous, real-time tracking across all key processing zones. If the upstream automatic counting machine experiences a delay and a container fails to arrive at the station, or if the cotton coil roll runs out, the system triggers an immediate automatic shutdown. This automatic pause stops the line instantly, preventing the machine from operating without material, protecting expensive containers, and ensuring that no defective packages move downstream.
5. Open Balcony cGMP Structural Architecture with Anti-Static Controls
A major challenge when processing fibrous raw cotton at high speeds is static electricity, which can cause loose fibers to cling to the container neck and compromise the induction seal.
● The Mechanical Solution: The machine is built on an open balcony layout that separates the front mechanical operation path from the rear electronic drive cabinets, and integrates a localized anti-static air curtain at the cutting station.
● The Technical Benefit: The open balcony layout eliminates hidden corners and cleaning dead zones, allowing for rapid, trace-free washdowns between batches. The anti-static system neutralizes surface charges on the cotton fibers instantly, preventing them from adhering to the container neck or floating into the cleanroom. This keeps the bottle lip clean, ensuring a flawless, leak-proof downstream induction foil seal.
Technical Specification Matrix: High-Performance Automatic Cottoner Data
To assist facility validation engineers, production directors, and commercial procurement managers during line integration planning, the matrix below details the mechanical and operational specifications of our advanced Automatic Cotton Inserter:
|
Technical Processing Feature |
Rich Packing Industrial Manufacturing Data |
|
Maximum Production Capacity |
Up to 100 bottles/min (Continuous steady-state high-speed run) |
|

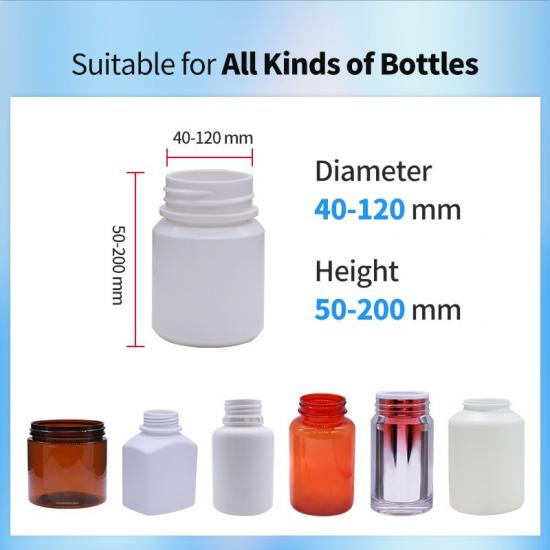

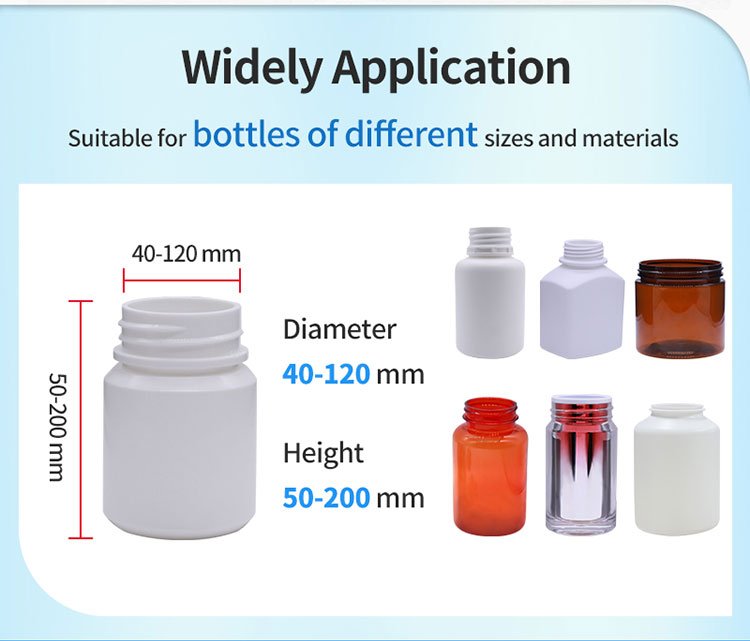

Applicable Bottle Diameter Range |
40mm – 120mm (Handles wide-mouth jars and narrow-neck vials) |
|
Applicable Bottle Height Range |
50mm – 200mm (Accommodates standard clinical and retail containers) |
|
Inserting Entry Height Adjustment |
PLC Touchscreen One-Click Automatic Motorized Adjustment |
|
Material Feeding Roller Design |
Forged SUS316L Stainless Steel (Zero paint, fully GMP compliant) |
|
Systemic Automation Control |
Integrated Siemens PLC Platform paired with Touchscreen HMI |
|
Fault Protection Monitoring |
Full-Process Interlocked Optical Detection (Auto-stop on low bottle/cotton) |
Total Cost of Ownership (TCO) and Cleanroom Compliance (IQ/OQ/PQ)
When evaluating a new machine for a regulated oral solid dosage line, experienced procurement executives look past the upfront purchase price and focus on the long-term Total Cost of Ownership (TCO). Lower-tier equipment that lacks robust electronic tracking or precise cutting dynamics frequently introduces high ongoing costs, including excessive raw material waste, shortened cutting blade lifespans, and long delays during mandatory cleanroom validation inspections.
The Rich Packing series optimizes your facility’s capital efficiency by maximizing single-pass yield and reducing line downtime. By integrating automatic optical tracking and a high-velocity mechanical knife, our machine completely eliminates false cuts and material jamming. This protection prevents container damage and saves raw materials, which is especially valuable during high-volume contract packaging campaigns.
Furthermore, we understand that preparing for strict audits by regional regulatory bodies like the FDA, Health Canada, or European national drug authorities can be a time-consuming and expensive process for your internal quality assurance (QA) teams.
To simplify compliance, every industrial bottle packaging line cottoner supplier setup we deliver ships factory-direct with a complete validation documentation package. This package includes comprehensive, native-English templates for IQ (Installation Qualification), OQ (Operational Qualification), and PQ (Performance Qualification) compliance.
By providing your engineering team with ready-to-use protocols for emergency stops, touchscreen height calibrations, and photoelectric sensor test logs, we help you save significant external consulting fees and accelerate your timeline to commercial production.
Summary & Call to Action: Secure Faultless Bottling Integration
The Rich Packing high-speed Automatic Cotton Inserter provides an efficient, highly reliable solution for processing challenging solid dosage packaging configurations. By combining an advanced SUS316L stainless steel material path with an automatic motorized HMI adjustment system, a clean-cutting mechanical knife, and full-process optical interlocks, this compact platform eliminates the common packaging bottlenecks of frayed fibers, inconsistent weight distribution, and container neck jams.
Whether you are launching a specialized pharmaceutical facility, scaling up a high-capacity nutraceutical line, or optimizing a high-mix contract manufacturing plant, our processing equipment provides the structural reliability and validation support needed to protect your product quality and maximize your daily OEE.
Technical FAQ for Cleanroom Procurement Teams
Q1: What makes the feeding rollers on this machine superior to standard entry-level models?
A: Standard entry-level machines often utilize basic chrome-plated steel or carbon steel components in their material path, which can flake, chip, or rust over time under aggressive cleaning. Our Automatic Cotton Inserter utilizes heavy-duty rollers forged entirely from solid SUS316L stainless steel, ensuring a non-shedding, corrosion-resistant, and completely pure feeding environment that fully satisfies global GMP guidelines.
Q2: How does the touchscreen console simplify changing product formats between different bottle sizes?
A: Rather than requiring operators to use manual hand cranks to adjust the machinery height for different container lengths, our platform features a digital motorized elevation drive. Through the central PLC touchscreen, operators can adjust the cotton insertion entrance height with a single click, allowing you to change bottle specifications quickly and conveniently when running containers from 50-200mm in height.
Q3: What happens if the line experiences a temporary shortage of empty bottles or raw cotton coils?
A: The platform is engineered with an advanced, full-process optical tracking network. If the sensors detect a container shortage on the indexing track, or if the raw material roll runs out, the machine triggers an automatic shutdown instantly. This safety feature stops the line immediately to prevent errors, minimize material waste, and ensure the machine never runs dry.
Q4: What is the maximum processing velocity of this automatic bottle cotton inserting machine specifications layout?
A: Driven by an advanced multi-axis automatic drive, the platform sustains a verified peak production velocity of up to 100 bottles/minute. This high-speed performance makes it the ideal choice for high-volume pharmaceutical cotton inserter manufacturer integrations and high-output contract packaging lines.
Q5: Can this automatic system process alternative ribbon materials like rayon or polyester coils?
A: Yes, absolutely. The hardened alloy mechanical cutting blades and adjustable tension rollers within our cotton coil feeding and cutting system are engineered to process standard medical cotton, absorbent rayon, and synthetic polyester fiber coils cleanly, providing a crisp, burr-free cut across all material options.
