Dry Granulator: 6 Engineering Solutions to Eliminate Powder Fines and Maximize Yield Rate

Introduction: The Challenge of Compacting Heat-and-Moisture Sensitive Formulations

In contemporary oral solid dosage (OSD) manufacturing, processing active pharmaceutical ingredients (APIs) and concentrated botanical extracts requires balancing high processing throughput with material stability. Modern facilities regularly handle advanced molecular structures and delicate natural compounds that exhibit high sensitivity to thermal exposure, residual moisture, or both. When these sensitive formulations require processing into free-flowing granules for high-speed tablet compression or capsule filling, traditional wet granulation methods often fail. The intensive fluidization, addition of liquid binders, and extended high-temperature thermal drying cycles required by wet processes can easily trigger chemical degradation, moisture-induced hydrolysis, or thermal decomposition of valuable active ingredients.

To bypass these risks, facility directors and formulation scientists rely on dry compaction. However, executing this process on standard or poorly engineered machinery introduces a different set of production headaches. A low-tier or unoptimized dry granulator often struggles with inconsistent force distribution across the roller face. When processing non-free-flowing powders, this structural instability creates unevenly compacted ribbons. Portions of the material pass through the roller gap uncompressed, while other sections are over-compacted into unworkable, glassy flakes.

During the downstream milling phase, these poorly formed ribbons disintegrate unevenly, generating an unacceptably high percentage of uncompacted fine powder, or "fines." In typical setups, a high fines ratio means that up to 30% to 40% of the material must be continuously recycled back into the feed hopper. This chronic recycling loop dramatically reduces your line’s true Overall Equipment Effectiveness (OEE), causes uneven granule size distribution, and can lead to over-processing that alters the dissolution profile of the final dosage form.

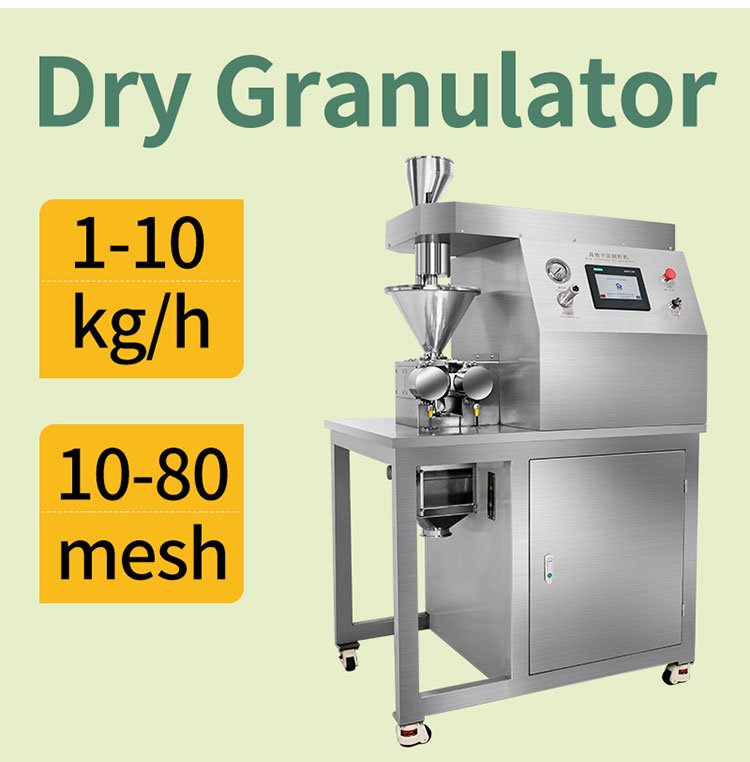

The definitive solution to these secondary solid-dosage bottlenecks requires a processing platform engineered around mechanical repeatability, precise material feeding, and efficient thermal control. The Rich Packing ZKG smart series represents a major advancement in dry compaction technology. Built on an innovative, non-hydraulic high-torque mechanical design, this compact system delivers the exact structural stability needed to eliminate powder fines, handle complex fluid dynamics, and protect sensitive formulations throughout continuous manufacturing campaigns.

Decoupling the ZKG Roller Compaction Process: Mechanical Architecture & Workflow

To maintain consistent particle density shift after shift, a facility must look past superficial machinery frames and examine the synchronized subsystems that govern the material's lifecycle. A generic, low-cost roller compactor often relies on simple gravity chutes and basic chain drives, which fail to deliver uniform material density. The Rich Packing ZKG dry granulator addresses this issue by dividing the compaction sequence into three distinct, electronically managed processing zones:

1. The Dual-Screw Volumetric De-Aeration and Feeding Phase

The process begins at the product feed hopper, where raw, uncompacted powder blends are introduced. Low-density pharmaceutical powders naturally trap a high volume of interstitial air between individual particles. If this air is not removed before the material reaches the compression zone, it will escape violently as the rollers clamp down, causing ribbon splitting, pocketing, and high fines generation.

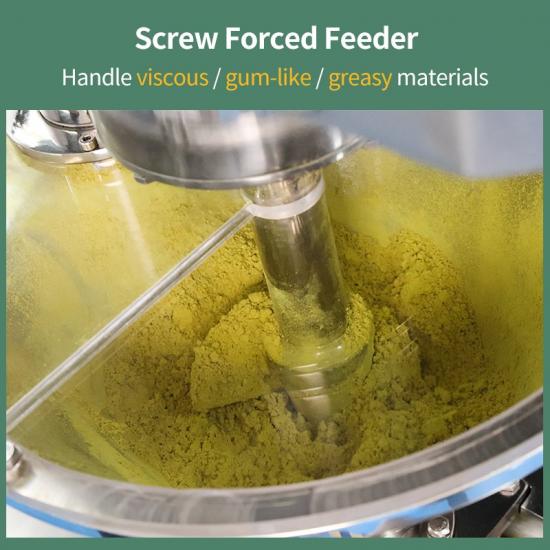

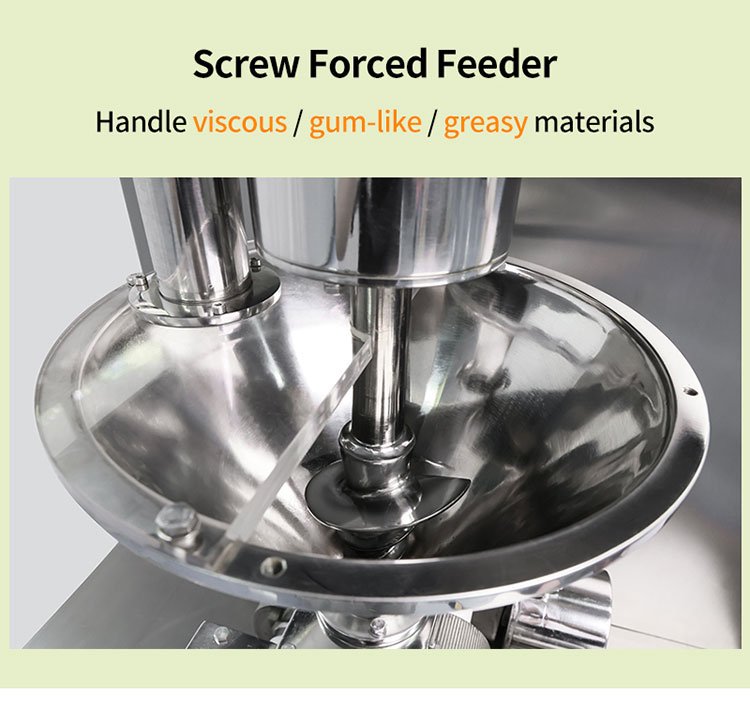

To solve this, our ZKG system incorporates an advanced dual-screw feeding assembly capable of variable adjustments from 0 to 24 r.p.m. The vertical pre-compression auger mechanically forces the powder downward while allowing trapped air to escape upward out of the hopper. This volumetric de-aeration phase ensures that a highly consistent, dense, and uniform mass of powder is steadily fed into the compaction throat, directly matching the exact processing speed of the rollers.

2. The Pure Mechanical Roller Compaction Phase

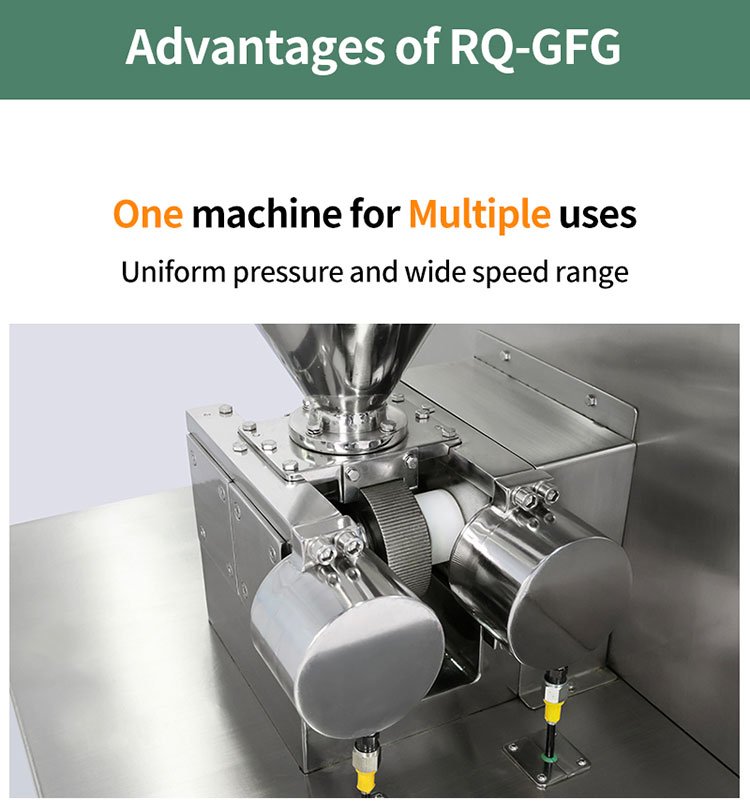

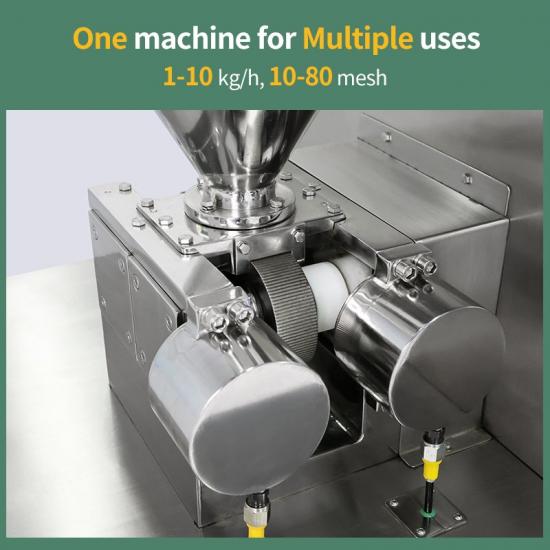

Once the de-aerated material exits the feeding screws, it is pulled directly into the continuous compression zone. This critical area features two counter-rotating, precision-machined rollers. Powered by a heavy-duty mechanical transmission system that adjusts from 0 to 20 r.p.m., the rollers apply a continuous, high-torque thrust of 6-8T.

By eliminating traditional hydraulic oil loops, this smart mechanical architecture completely removes the risk of micro-leak oil contamination within your cGMP cleanroom environment. The system applies massive, continuous mechanical force to deform the loose powder particles, interlocking them into a solid, uniform sheet or ribbon of consistent thickness and density across its entire width.

3. The Two-Stage Granule Sizing and Milling Phase

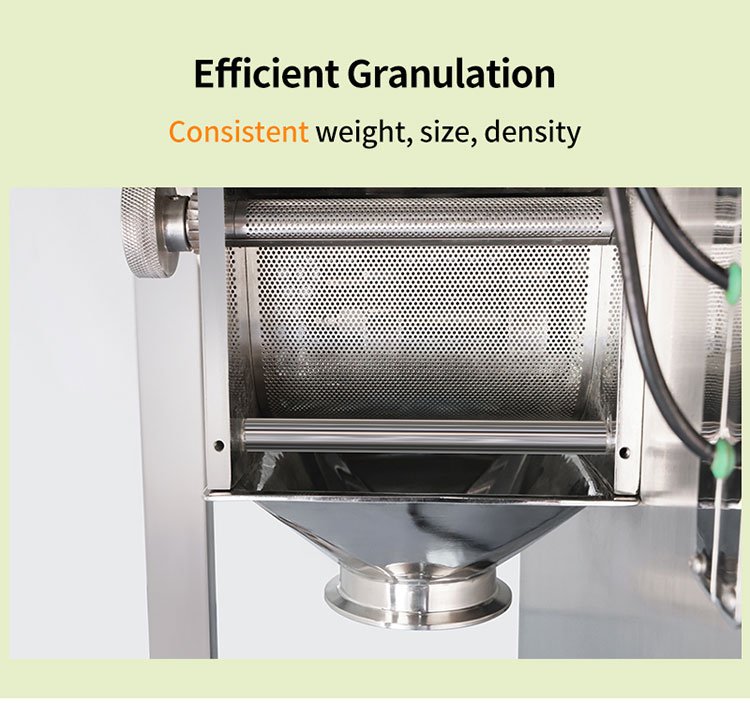

After exiting the rollers, the solid ribbon is guided into the continuous mechanical granulating station. Rather than using high-speed impact blades that smash the material and create excessive dust, the ZKG line employs a gentle, low-speed two-stage sizing mechanism. The solid ribbon is first broken down into smaller flakes by a coarse breaker, then gently massaged through a premium stainless steel sizing screen.

By utilizing variable rotor speeds and interchangeable screens, the system achieves a highly precise, uniform granule size distribution adjustable from 10 mesh to 80 mesh (10-80目). The finished granules are discharged into a clean container, showcasing excellent flow characteristics and optimal tap density for downstream processing.

6 Architectural Upgrades of the ZKG Dry Granulator Series

The superior yield performance and processing consistency of the ZKG dry granulator series are achieved through targeted mechanical upgrades, advanced metallurgy, and strict compliance with sanitary design standards. Below is an engineering analysis of the 6 core upgrades built into every Rich Packing continuous granulation platform.

1. 6-8T Constant Mechanical Thrust Control System

Maintaining an identical solid fraction density across the entire ribbon width requires an exceptionally rigid force application system that eliminates any mechanical deflection or vibration.

● The Mechanical Solution: The ZKG platform features a heavy-duty mechanical force linkage system capable of generating a continuous mechanical thrust of 6-8T.

● The Technical Benefit: By removing traditional hydraulic lines and actuators, the system eliminates the pressure fluctuations caused by oil temperature drift. The mechanical linkage applies an unyielding, uniform force across the $\Phi 100 \times 35 \text{ mm}$ rollers, ensuring a perfectly consistent ribbon density. This design provides absolute process stability while removing any risk of hydraulic fluid contamination in your cGMP workspace.

2. Dual-Channel Roller Cooling System (Maintained Below 20°C)

Continuous high-pressure mechanical compaction naturally generates intense friction heat, which can quickly raise roller face temperatures and cause sensitive compounds to glaze, stick, or thermally degrade.

● The Mechanical Solution: Every ZKG machine integrates an independent dry granulator roller cooling system built directly into the internal core of the compression rollers.

● The Technical Benefit: Chilled water is continuously circulated through dual internal channels to keep the roller surface temperature strictly below 20°C. This rapid thermal dissipation prevents heat-sensitive materials (such as vitamin C, enzymes, or volatile botanical extracts) from melting or adhering to the steel face, ensuring uninterrupted production runs.

3. Optimized Two-Stage Milling System for 10-80 Mesh Output

Standard single-stage high-speed mills often pulverize compacted material aggressively, shattering the formed ribbons and creating a high percentage of fine powder.

● The Mechanical Solution: The ZKG series incorporates a specialized, low-velocity two-stage sizing mechanism that handles material with extreme care.

● The Technical Benefit: The system breaks the ribbon into uniform flakes before gently sizing them through an optimized screen mesh, keeping the fine powder ratio strictly under 10%. This precise control delivers a consistent granule size distribution of 10-80 mesh, drastically reducing the need for material recycling and ensuring maximum single-pass yield.

4. Cantilevered Roller Design for 10-Minute Toolless Disassembly

In high-mix manufacturing facilities, spending hours of valuable production time tearing down and cleaning a complex system between product batches can severely impact profitability.

● The Mechanical Solution: Rich Packing utilizes an innovative cantilevered roller configuration where the main shaft bearings are securely anchored to a rigid rear structural wall.

● The Technical Benefit: This open-front design leaves the compaction rollers and sizing screens completely accessible. A single technician can dismount the entire processing assembly for washing within 10 to 15 minutes without needing heavy or specialized tools, minimizing downtime during product changeovers.

5. High-Efficiency 3kW Motor with Digital PLC Parameter Logging

Modern facilities demand energy-efficient industrial machinery that supports complete data traceability for strict regulatory compliance.

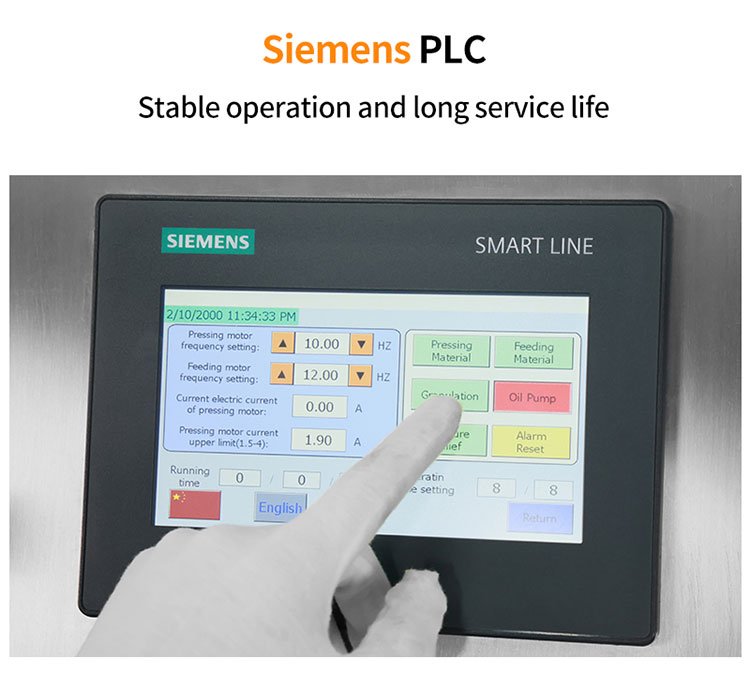

● The Mechanical Solution: The entire ZKG line is powered by a high-torque, energy-efficient 3kW motor linked to an industrial Omron or Siemens PLC system.

● The Technical Benefit: The 3kW drive provides impressive energy efficiency while delivering up to 8T of compaction force. The integrated touchscreen HMI tracks and logs critical processing parameters—such as feeding speeds (0-24 r.p.m.), roller speeds (0-20 r.p.m.), and operating pressures—in real-time, fully satisfying FDA 21 CFR Part 11 data integrity standards.

6. Full SUS316L Material Isolation & Compact cGMP Layout

Integrating high-capacity processing equipment into tight, existing cleanroom layouts can be incredibly difficult if the machinery has an oversized or unhygienic frame.

● The Mechanical Solution: The ZKG system features a highly compact layout measuring just 1000 × 800 × 1650 mm, with an empty net weight of 350KG.

● The Technical Benefit: All product contact components of ZKG pharma granulator are machined from premium SUS316L stainless steel. The compact design uses an internal isolation wall to completely separate the mechanical drive elements from the sanitary cleanroom workspace, eliminating any hidden cleaning dead zones and ensuring effortless compliance with strict international pharmaceutical validation standards.

Technical Specification Matrix: ZKG Series Performance Data

To assist validation engineers and commercial procurement teams during equipment evaluation, the technical matrix below presents the exact mechanical parameters of our smart compact line:

Optimize Your Solid Dosage Production

The Rich Packing ZKG dry granulator series provides an efficient, highly reliable solution for processing challenging solid dosage formulations. By combining an advanced SUS316L stainless steel balcony layout with a 6-8T non-hydraulic mechanical thrust control system, an integrated dual-channel roller cooling system, and a gentle two-stage low-speed milling sieve, this compact platform eliminates the common headaches of material discoloration, thermal degradation, and excessive powder dust generation.

Technical FAQ for Cleanroom Procurement Teams

Q1: Why choose a dry granulator over wet granulation lines for pharmaceuticals?

A: Dry granulation completely eliminates the need for liquid binders and heat-drying phases. It is the premier choice for moisture-sensitive and heat-sensitive active ingredients (APIs), reducing excipient costs and conserving cleanroom energy.

Q2: How does the roller compactor control the maximum thrust without utilizing traditional hydraulic oil systems?

A: Our ZKG series integrates linear force control system that delivers a continuous, high-torque thrust of 6-8T. This design provides absolute pressure stability across the rollers while removing any risk of oil contamination in cGMP workspaces.

Q3: How does the system guarantee a stable granule size distribution within 10-80 mesh?

A: By balancing a synchronized feeding screw (0-24 rpm) with variable roller speeds (0-20 rpm), the machine forms stable ribbons. These are then processed through an optimized two-stage mechanical milling sieve, keeping fine powder levels strictly under 10%.

Q4: Can the ZKG roller compactor handle sticky or low-melting-point herbal botanical powders?

A: Yes. The ZKG dry granulator features a built-in dual-channel water-cooling system within the  rollers. This system keeps surface temperatures below 20°C, preventing sticky extracts from melting, glazing, or adhering to the roller surfaces.

Q5: What is the required floor space and cleaning profile for this 350KG compact granulator?

A: The machine features a compact footprint of 1000 × 800 × 1650 mm, making it easy to integrate into tight cleanrooms. Its advanced cantilevered roller layout allows a single operator to complete a full washdown teardown in 10 minutes without specialized tools.
