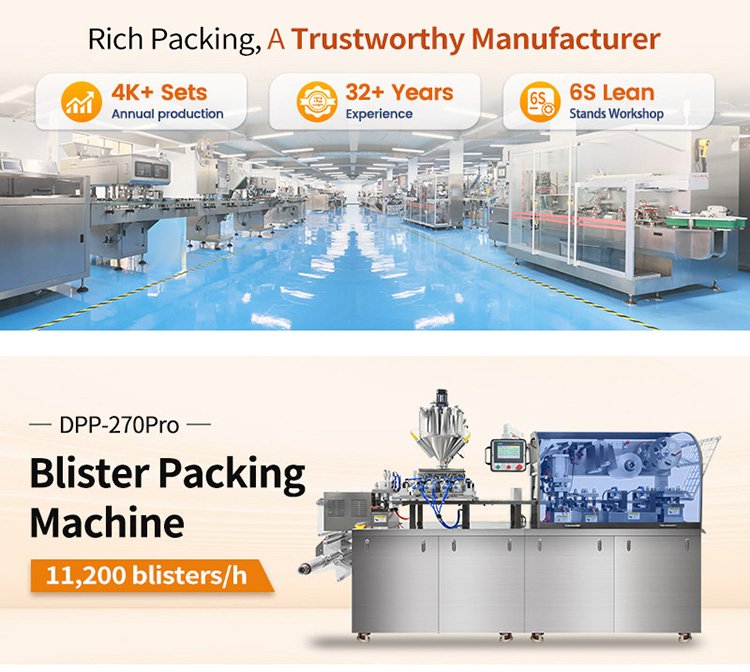

DPP-270Pro Blister Packing Machine

DPP-270Pro Blister Packing Machine

The Definitive Guide to Liquid Blister Packaging Machine: 5 Core Advantages, Full Workflow & Industry Applications

Introduction

In the pharmaceutical, nutraceutical, food, and cosmetic industries, liquid, paste, gel, and high-viscosity materials have long posed unique challenges for packaging. Unlike solid tablets and capsules, fluid materials are highly sensitive to filling accuracy, temperature fluctuations, and sealing stability. Common pain points in production include filling dripping, inconsistent dosage, material solidification or stratification, long downtime for mold replacement, and inability to adapt to deep-cavity blister formats. These issues directly lead to high scrap rates, low production efficiency, and even non-compliance with industry regulatory standards.

A liquid-specific Blister Packaging Machine is the tailored solution to these challenges. Unlike standard solid-product blister equipment, this specialized Blister Machine integrates precision filling, constant temperature material control, stable forming, and reliable sealing into a fully automated workflow, addressing the core pain points of fluid material packaging. In this guide, we will break down the working principles, technical advantages, application scenarios, and common questions of liquid blister equipment, helping production managers and decision-makers choose the right packaging solution for their production lines.

What Is a Liquid Blister Packaging Machine?

A packaging liquid Blister Machine is a fully automated packaging device designed exclusively for fluid, paste, and gel materials. It completes the entire packaging process from thermoforming blister cavities, precision material filling, lidding material sealing, indentation, and die-cutting in one continuous production line.

The biggest difference between this equipment and a traditional solid-material Blister Packaging Machinery lies in its targeted optimization for fluid materials. Standard blister equipment focuses on solid product feeding and positioning, while liquid-focused models prioritize filling accuracy, anti-drip design, material temperature stability, and forming adaptability for different fluid characteristics. It is compatible with a wide range of materials, including free-flowing oral liquids, high-viscosity honey, thick chocolate paste, jam, butter, cosmetic serums, and pharmaceutical gels, making it the core equipment for unit-dose liquid packaging in modern production.

5 Core Technical Advantages of Our Liquid Blister Packaging Machine

To solve the core pain points of liquid packaging, our Machine is designed with industry-leading innovative structures and precision components, delivering stable, efficient, and compliant production performance for global clients. Below is a detailed breakdown of its core technical strengths:

1. Customizable Filling Pump Feeder with Back-Suction Function (±0.1% Filling Accuracy)

The filling system is the heart of a liquid Blister Packing Machine, as it directly determines dosage accuracy, product qualification rate, and packaging cleanliness. Different liquid materials have vastly different physical properties: water-like oral liquids have excellent fluidity, while honey, butter, and chocolate paste have high viscosity and poor flowability, and high-value pharmaceutical serums have extremely strict requirements for filling precision. A single filling pump cannot meet all these diverse needs, which is why we provide fully customizable filling pump solutions for every client.

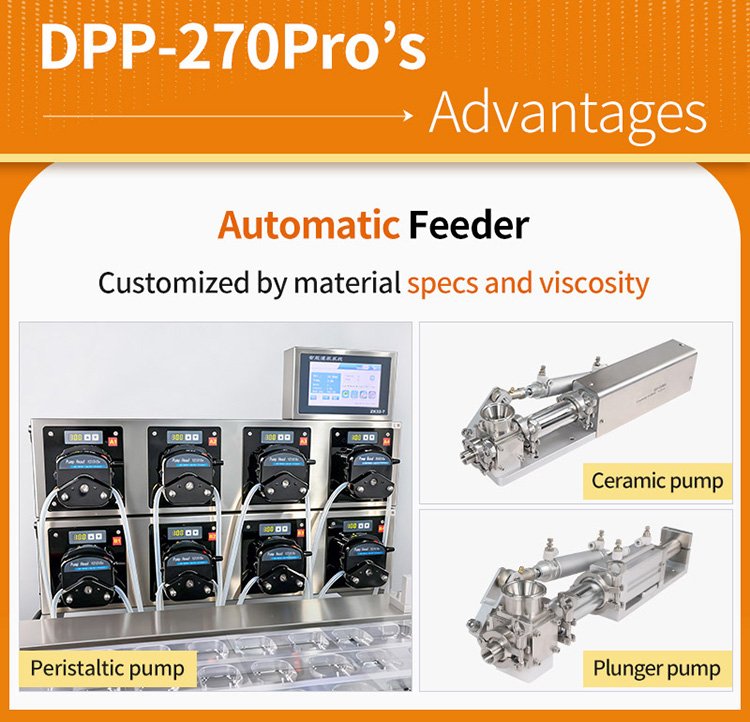

Our filling system supports three professional pump types, all equipped with a reliable back-suction structure. This core design creates a negative pressure suction at the nozzle the moment filling is completed, effectively preventing material dripping, stringing, and wall hanging, ensuring the blister surface is clean and free of contamination, and eliminating product scrap caused by sealing defects from residual material.

• Peristaltic Pump: Ideal for materials with good fluidity, such as pharmaceutical oral liquids, low-viscosity serums, and aqueous solutions. It features a non-contact material cavity design, which is easy to disassemble and clean, fully meeting the hygienic requirements of pharmaceutical and food production.

• Plunger Pump: Specially designed for high-viscosity materials, including honey, cream, chocolate paste, and thick sauces. It provides strong and stable filling power, ensuring consistent filling volume even for thick materials, without clogging or uneven feeding. This makes it the perfect choice for a honey blister packing machine or chocolate blister packing machine.

• Ceramic Pump: The top-tier choice for ultra-high-precision filling scenarios, such as high-value pharmaceutical liquids, active ingredient serums, and precision cosmetic products. It delivers an industry-leading filling accuracy of ±0.1%, ensuring consistent dosage for every single blister unit, fully complying with the strictest pharmaceutical regulatory requirements.

Whether you need a standard configuration or a customized solution for special materials, our filling system can be tailored to your exact production needs, ensuring perfect filling results for every product.

2. Three-Layer Intelligent Temperature Control Barrel for High-Viscosity Materials

For temperature-sensitive high-viscosity materials, maintaining stable material properties is the prerequisite for consistent filling and high-quality packaging. Materials like honey, butter, chocolate, jam, and gel are extremely sensitive to temperature fluctuations: even a small temperature drop can lead to increased viscosity, material solidification, ingredient stratification, or uneven flowability, which directly causes filling inaccuracy, nozzle clogging, and inconsistent product quality. For heat-sensitive pharmaceutical and nutraceutical materials, excessive temperature can even damage the active ingredients, rendering the product ineffective.

To solve this critical problem, our liquid Blister Pack Machine is equipped with an innovative three-layer intelligent temperature control barrel, a proprietary design optimized for fluid material packaging. The barrel adopts a sandwich-type constant temperature insulation structure, paired with a high-precision intelligent temperature control system, to maintain the material at a set stable temperature throughout the production process.

This design delivers two core benefits: first, it keeps the viscosity and flowability of liquid, paste, and gel materials consistent at all times, avoiding solidification, precipitation, stratification, and poor fluidity caused by temperature changes. It ensures continuous and smooth filling, no material clogging, no wall hanging, no stringing, and effectively improves filling accuracy and packaging stability. Second, the precise temperature control avoids overheating, so it will not damage the chemical and physical properties of the material, preserving the active ingredients of pharmaceuticals, the flavor of food products, and the stability of cosmetic formulas.

This temperature control system makes our equipment perform exceptionally well in high-viscosity material packaging scenarios, whether it is a butter blister packaging machine for dairy products, a jam blister packing machine for fruit spreads, or a honey blister packing machine for natural honey products.

3. Mandrel Positioning & External Handwheel Adjustment for 4 Key Stations

The forming, heat sealing, indentation, and die-cutting stations are the four core working units of a Blister Machine. The alignment precision of these workstations directly affects the final product quality, production efficiency, and operational difficulty. Traditional blister equipment often requires opening the protective cover, disassembling parts, and repeatedly debugging when adjusting station alignment, which leads to long downtime, high technical requirements for operators, and easy misalignment during high-speed production.

Our honey Blister Packaging Machine adopts high-precision mandrel positioning design for all four core stations. Each station is positioned with a high-precision mandrel to ensure that the alignment accuracy remains stable even during long-term high-speed operation, avoiding position deviation and product defects. More importantly, all adjustment functions can be completed through the external handwheel, without opening the equipment cover or long-term shutdown.

This humanized design greatly simplifies the station alignment and parameter adjustment process. Even new operators can quickly complete precise positioning with simple guidance, reducing the technical threshold for equipment operation. It also minimizes downtime caused by format adjustment or production line debugging, effectively improving the overall equipment efficiency (OEE) of your production line.

4. Modular Mold Design with 10-Minute Quick Change System

In modern production, more and more manufacturers need to handle multi-specification, small-batch production orders. For example, condiment factories need to switch between different specifications of ketchup and sauce packaging, and pharmaceutical factories need to change production for different dosage oral liquids. The biggest pain point in this process is the long time required for mold replacement: traditional Automatic Blister Machine often takes 1-2 hours or even longer to replace a full set of molds, which seriously occupies production time and reduces the flexibility of the production line.

To solve this problem, our Flat Plate Blister Machine adopts an innovative modular mold design, paired with an integrated aluminum alloy guide rail and a pull-out slot quick-connect installation structure. This design completely subverts the traditional complex mold replacement process: operators can complete the disassembly and installation of the entire set of molds within 10 minutes, without the need for complex professional tools, and the positioning accuracy is fully guaranteed after replacement.

This quick mold change function greatly shortens the switching time between different products and specifications, making the production line more flexible and adaptable. It is especially suitable for ketchup blister packing machine, jam blister packing machine, and other equipment that requires frequent product switching, helping manufacturers respond quickly to order changes and market demands, and maximize production capacity utilization.

5. Custom Groove Cam for Up to 30mm Max Forming Depth

The forming depth of the blister cavity directly determines the product forms that the Blister Packaging Machine can adapt to. Traditional blister equipment usually has a forming depth of only 10-15mm, which can only meet the packaging needs of shallow-cavity products, but cannot adapt to large-dose liquid, butter cups, jam containers, and special-shaped paste products that require deep blister cavities. This limitation greatly restricts the product development and expansion of manufacturers.

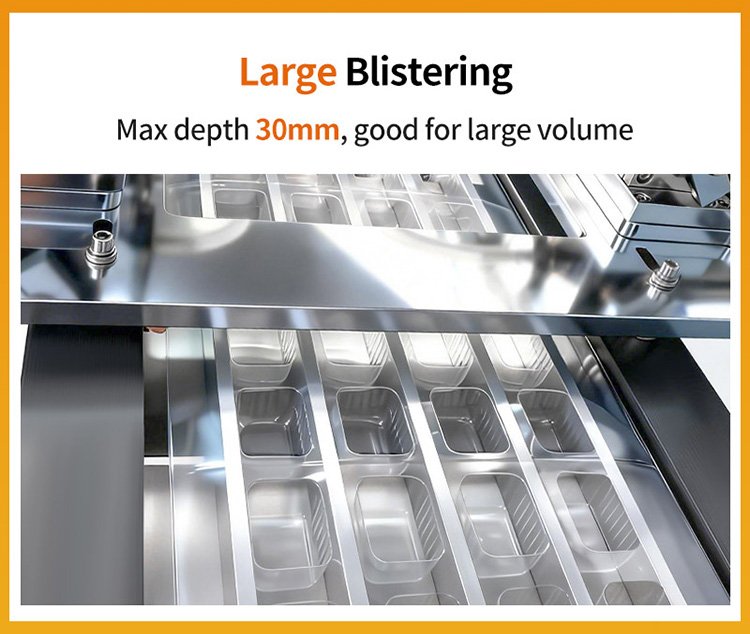

Our liquid Blister Packing Machine uses a specially customized groove cam structure, which extends the running stroke of the upper and lower molds, and supports the customization of secondary forming molds. With this innovative design, the maximum forming depth of the equipment can reach 30mm, which can easily complete the forming of deep blister cavities, and ensure the uniformity and stability of the cavity wall thickness during deep forming, avoiding problems such as film rupture and uneven forming.

This technical breakthrough greatly expands the application scope of the equipment. Whether it is large-dose single-unit liquid packaging, deep-cavity butter cups, or special-shaped paste products, our Blister Packaging Machine can easily handle it, providing more possibilities for your product innovation and packaging design.

Step-by-Step Working Process of Liquid Blister Packing Machine

The entire working process of our liquid Blister Packaging Machine is fully automated, continuous, and stable, and fully complies with GMP and food safety production standards. The detailed workflow is as follows:

1. Forming Film Unwinding: The food-grade/medical-grade plastic forming film (PVC, PET, PP, or other composite materials) is automatically unwound and conveyed to the forming station at a constant speed through the precision traction mechanism, ensuring stable film feeding without deviation.

2. Thermoforming: The forming film is heated evenly to a softened state, and then the blister cavity of the specified shape and depth is formed through positive pressure or vacuum forming. The customized groove cam structure ensures accurate forming, even for deep cavities up to 30mm.

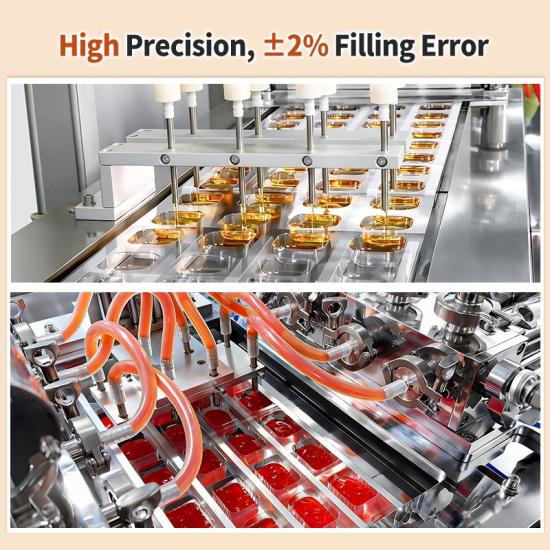

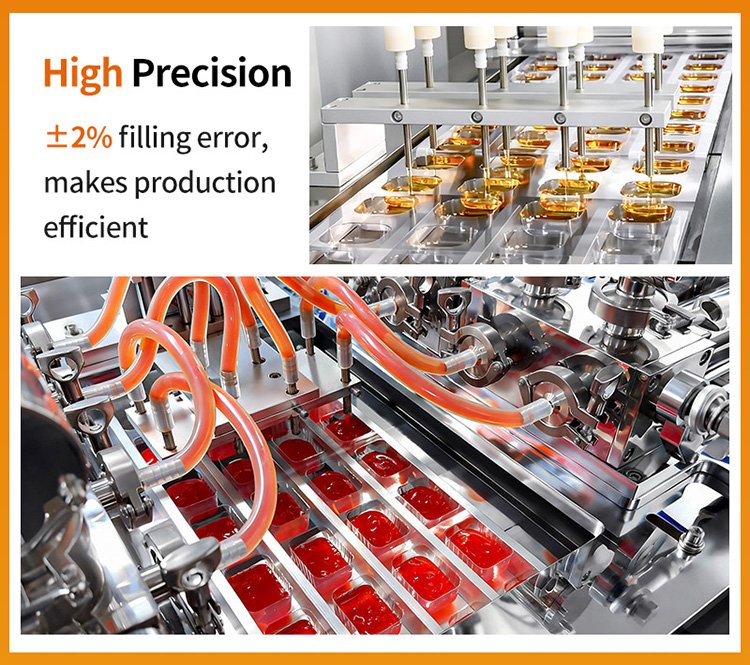

3. Precision Filling: The formed blister cavities are accurately conveyed to the filling station. The customized filling pump system fills the liquid, paste, or gel material into each cavity quantitatively, with a back-suction function to prevent dripping and stringing. The three-layer temperature control barrel ensures stable material properties during the entire filling process.

4. Lidding Film Unwinding & Heat Sealing: The lidding material (aluminum foil, composite film, etc.) is automatically unwound and covered on the filled blister sheet. The heat sealing station applies precise temperature and pressure to tightly seal the lidding film and the forming film together, ensuring airtightness and no leakage, to protect the internal materials from moisture, oxidation, and contamination.

5. Indentation: The indentation station presses easy-tear lines on the sealed blister sheet according to the set specifications, which is convenient for end users to tear and use the single-unit product.

6. Die-Cutting: The die-cutting station cuts the continuous blister sheet into finished blister cards of the set size and shape, with neat edges and no burrs.

7. Finished Product Collection & Waste Recycling: The qualified finished products are automatically collected and output to the subsequent production link (such as cartoning machine), while the edge waste material is automatically wound and recycled, reducing material waste.

Throughout the entire process, the mandrel positioning system ensures the accurate alignment of each station, the PLC control system monitors the operating parameters in real time, and the equipment has multiple safety protection functions to ensure stable, safe, and efficient continuous production.

Key Industry Applications of Liquid Blister Packaging Machine

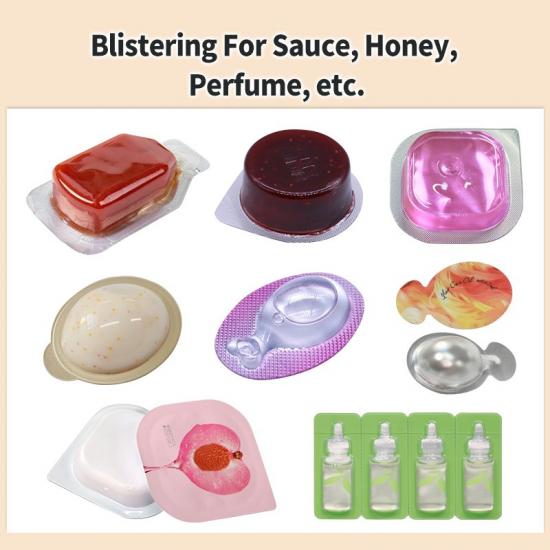

Thanks to its flexible design, high precision, and strong adaptability, our Machine is widely used in multiple industries, covering almost all liquid and paste unit-dose packaging needs:

Pharmaceutical Industry

It is usually used for the packaging of oral liquids,external ointments,  throat gels, liquid medicines, and single-dose pharmaceutical preparations. The high-precision ceramic pump ensures dosage accuracy, the fully enclosed structure meets GMP production requirements, and the complete production data can be traced, fully complying with the strict regulatory requirements of the pharmaceutical industry.

Nutraceutical & Health Food Industry

Suitable for honey, royal jelly, nutritional gels, oral serums, propolis products, and other health foods. The three-layer temperature control system protects the active ingredients of the product, and the unit-dose packaging improves the portability and shelf life of the product. Our honey blister packing machine is widely recognized by health food manufacturers around the world.

Food & Condiment Industry

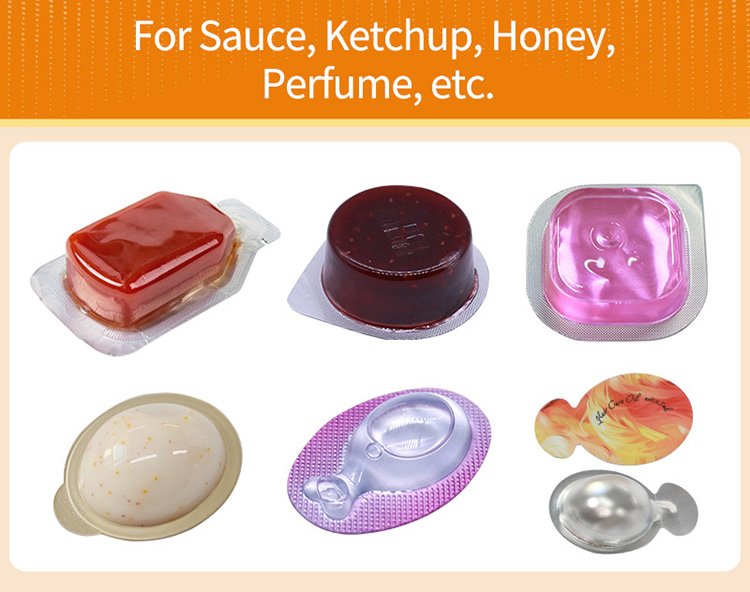

Perfect for the packaging of jam, butter, ketchup, salad dressing, chocolate paste, liquid seasoning, and other food products. The quick mold change function adapts to multi-specification and multi-flavor production, the food-grade material contact parts meet international food safety standards, and the stable filling and sealing system ensures no leakage and long shelf life. Whether you need a ketchup blister packing machine, jam blister packing machine, butter blister packaging machine, or chocolate blister packing machine, our equipment can provide a perfect solution.

Cosmetic & Daily Chemical Industry

Used for the packaging of single-dose facial serums, essential oils, hair care essences, lotion samples, and other cosmetic products. The high-precision filling ensures consistent dosage, the smooth blister packaging improves the product grade, and the unit-dose design reduces the risk of product contamination during use.

Conclusion

For manufacturers producing liquid, paste, and gel products, a high-performance liquid Blister Packaging Machine is not just a piece of production equipment, but a key factor to improve product quality, production efficiency, and market competitiveness. Our liquid blister equipment, with its industry-leading filling accuracy, stable temperature control, convenient operation, quick mold change, and flexible forming capabilities, fully solves the core pain points of liquid packaging, and helps you achieve efficient, stable, and compliant production.

If you want to know more about the customized solution of this Machine for your products, or want to get a detailed parameter manual and case study, welcome to contact our technical team, we will provide you with a tailor-made professional packaging solution.

FAQ

Q1: What types of materials is the liquid Blister Packaging Machine suitable for?

Our equipment is suitable for almost all liquid, paste, gel, and high-viscosity materials, including pharmaceutical oral liquids, honey, jam, butter, ketchup, chocolate paste, cosmetic serums, ointments, and more. We can also customize the filling system and temperature control system according to the special properties of your materials.

Q2: What is the filling accuracy of the equipment?

With our high-precision ceramic pump, the filling accuracy can reach ±0.1%, which fully meets the strict requirements of pharmaceutical and high-end food production. For different pump types, we can ensure that the filling accuracy is within the industry-leading level.

Q3: Can the temperature of the material barrel be adjusted freely?

Yes, the three-layer intelligent temperature control barrel supports digital temperature setting and constant temperature control, and the temperature range can be adjusted freely according to the material's needs, to adapt to different heat-sensitive and high-viscosity materials.

Q4: How long does it take to replace a full set of molds?

With our modular quick-change mold design, a single operator can complete the replacement and positioning of the entire set of molds within 10 minutes, without complex professional tools.

Q5: What is the maximum forming depth of the equipment?

Our customized groove cam structure supports a maximum forming depth of 30mm, and we can also customize the forming scheme according to your product's special blister design requirements.

Q6: Does this Blister Packaging Machine meet the GMP requirements for pharmaceutical production?

Yes, the equipment is designed in full accordance with GMP standards. The parts in contact with materials are made of food-grade/medical-grade materials, with a fully enclosed structure and no sanitary dead corners, which is easy to clean and disinfect, and fully meets the production requirements of the pharmaceutical and food industries.

Q7: Do you provide overseas after-sales service?

Yes, we have a professional after-sales service team that can provide global on-site installation, commissioning, operation training, and maintenance services. We also have an overseas service center in the US to provide faster local support.

Q8: What is the delivery time for the equipment?

For standard models of liquid Blister Packaging Machine, we can achieve delivery within 10 days. For customized models, we will provide a clear delivery schedule according to your customization requirements and strictly follow the contract delivery time.
