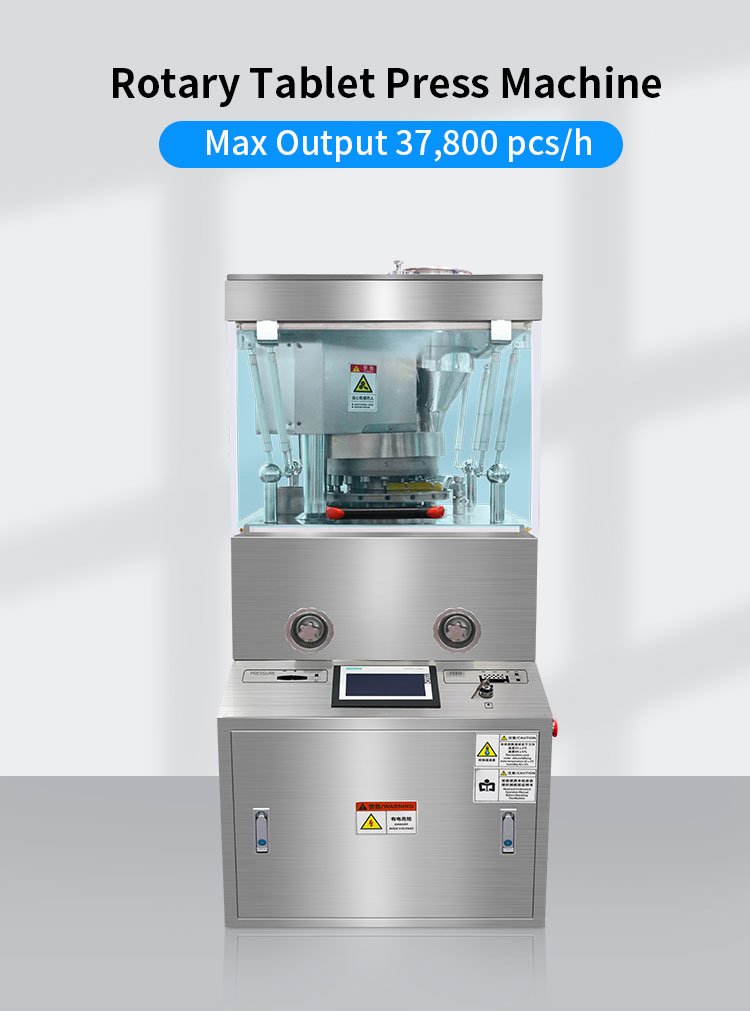

Lab Mini Automatic Rotary Tablet Press Machine By Rich Packing
*** Technical parameter
|
Model |
ZP11D |
ZP15D |
ZP17D |
ZP19D |
ZP21D |
|
Dies No. |
11 |
15 |
17 |
19 |
21 |
|
Max. Pressure |
100kn |
80 kn |
60 kn |
60 kn |
60 |
|
Max. Dia. of Tablet |
40mm |
25 mm |
20 mm |
13 mm |
12 mm |
|
Max.DepthofFilling |
28 mm |
15 mm |
15 mm |
15 mm |
15 mm |
|
Max.Thickness of Tablet |
10 mm |
6 mm |
6 mm |
6 mm |
6 mm |
|
Rotary Speed |
20r/min |
30 r/min |
30 r/min |
30 r/min |
30 r/min |
|
Max. Production Capacity |
13200 pc/h |
27000 pc/h |
30600 pc/h |
34200 pc/h |
37800 pc/h |
|
Power |
3.0kw |
||||
|
voltage |
220v/380v |
||||
|
dimension |
890*650*1680mm |
||||
|
weight |
1000kg |
||||
*** Configuration
|
Item |
Manufacturer |
|
Frequency converter |
Danfoss |
|
Breaker |
Tracy |
|
touch screen |
Siemens |
|
Main motor |
Shanghai Hengli |
|
Fuse |
zhengtai |
|
Indicator light |
yijia |
|
Emergency stop switch |
zhengtai |
|
Speed regulating resistance |
keying |
|
Contactor |
zhengtai |
|
Intermediate contactor |
xinling |
|
button |
yijia |
|
Key switch |
Tracy |
|

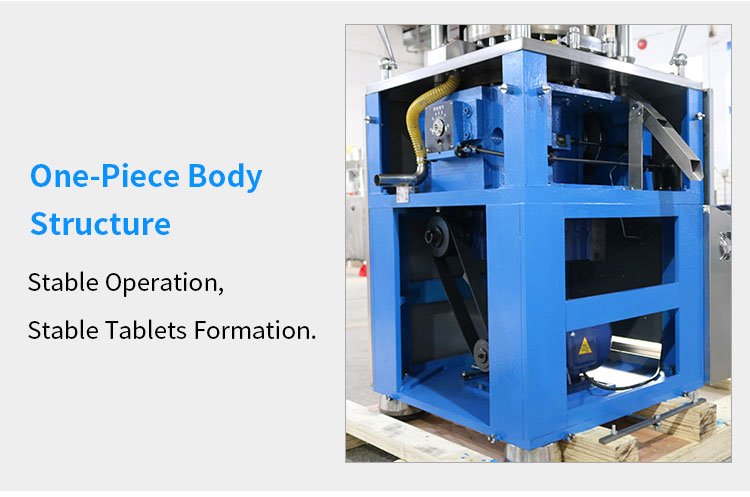

main body |
HT150 rich packing |
|

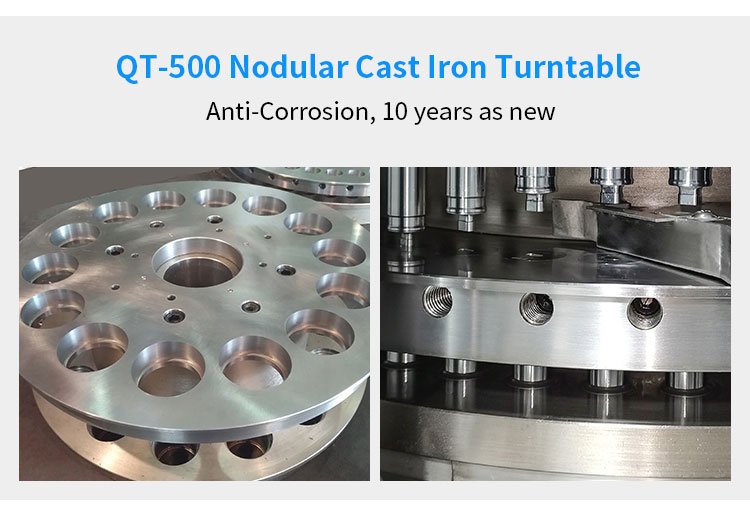

Turntable |
HT300 rich packing |
|
Upper roller frame |
HT150 rich packing |
|

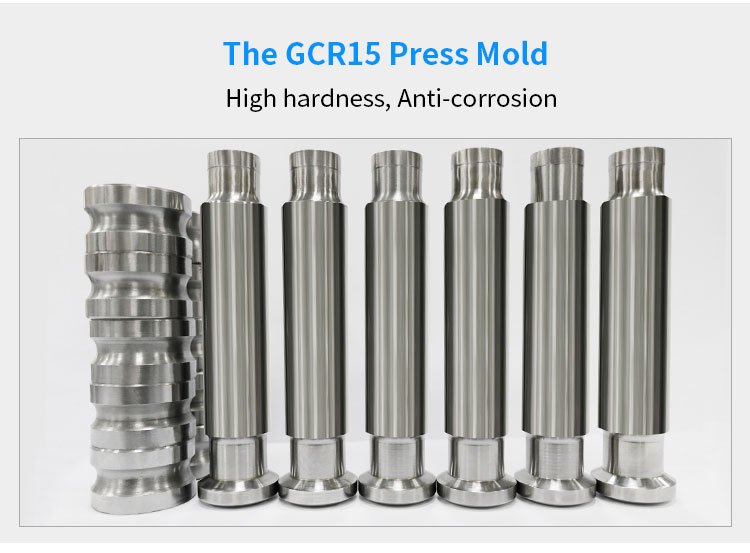

Upper and lower pressing wheels |
GCr15 rich packing |
|
Upper and lower rails |
GCr15 rich packing |
|
Worm gear box |
WPWKO155 rich packing |
|
Spindle |
45# rich packing |

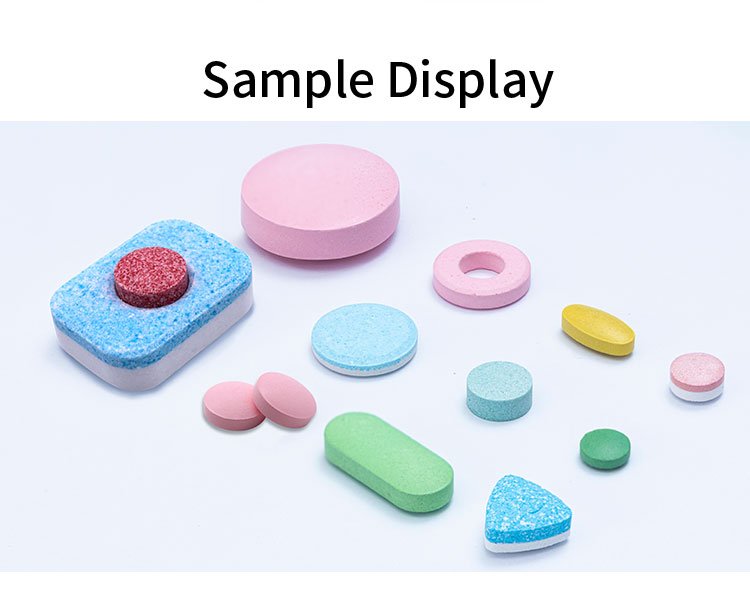

The ZP17D model of this tableting machine is a dual-pressure automatic rotating machine, which can fully make up the continuous tablet pressing for one week. The first purpose of the tableting design is to compress the granular raw materials into kinds of round tablets or the various shapes. Engraving and engraving the company's pursue can be achieved through a variety of different customization tablet pressing requirements as well as specific belief.
These main features of ZP-17D include the below following seven points.
1. The purpose of 17D is to comply with the producing requirements of cGMP. We will make the outer casing of the rotary tablet press machinery a the completely stainless steel closed form, and the internal table box is made of 304 stainless steel, which can maintain the main surface gloss and to prevent the cross-contamination;
2. 17D is equipped with the plexiglass see-through window, which can monitor the whole tableting pressing state, and the side output panels can be fully opened, which is easy for internal cleaning and easy maintenance;
3. All the controllers of this ZP 17 D and operating system parts are reasonably arranged;
4. The frequency conversion speed control device of these 17 model is used for the electrical speed control, which makes 17D convenient to operate, stable in automatic rotation, also safe and accurate;
5. Equipped with the new model type 17d overload protection devices, when the pressing pressure is overloaded, the device can automatically stop;
6. The PLC programmer and the Siemens touch screen are used to monitor the main control functions and correct the faults of the tablet, and can set various working parameters;
7. The rotary tablet press machinery is equipped with a powder volume suction device, which can suck the powder dust in the pressing room.
