ZP 27Max Large Tablet Press Machine

ZP-27Max Large Tablet Press Machine

***  Technical parameter

High Pressure Tablet Press Machine: 5 Unbeatable Advantages of 400kN Rotary Model for Big Size Tablets

Introduction

In the global pharmaceutical, nutraceutical, veterinary, and household chemical industries, the production of large-format tablets has long been a major technical challenge for manufacturers. Whether it is high-dose veterinary boluses, sustained-release Chinese medicine tablets, laundry detergent tablets, dishwasher tablets, or compound vitamin mega-tablets, ordinary tablet compression equipment cannot meet the extreme requirements for forming pressure, structural stability, and tablet consistency. For these products, insufficient compression force will directly lead to common defects such as capping, lamination, loose tablets, and uneven hardness, which not only cause a high scrap rate but also fail to meet the strict regulatory requirements of GMP, FDA, and EMA for solid dosage forms.

To solve this industry-wide pain point, Rich Packing Machinery backed by CE, cGMP, ISO, and SGS certifications – has developed a 400kN high pressure tablet press machine.

This article provides a scientific and in-depth analysis of this high pressure tablet press machine from a professional pharmaceutical engineering perspective, covering its core applications, technical difficulties in large tablet compression, key process parameters that determine tablet quality, and industry-leading core advantages. It serves as a comprehensive guide for global pharmaceutical, veterinary, and chemical manufacturers looking to select a reliable, high-performance big size tablet press machine.

1. Product Overview & Core Industrial Applications

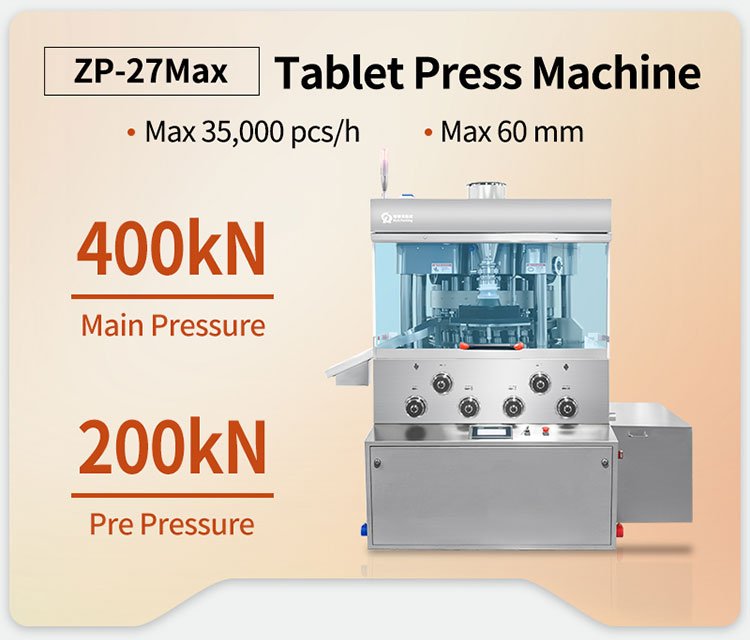

The 400kN high pressure tablet press machine is a heavy-duty, fully automatic rotary tablet compression machine designed for continuous large-scale production of large-size, high-dose solid dosage forms. Unlike ordinary small tablet presses that focus on high-speed production of small conventional tablets, this model prioritizes ultra-high compression force, structural stability, and tablet forming quality, making it the ideal core equipment for large tablet production lines.

Its core technical parameters are industry-leading for large tablet production:

• Maximum main compression force: 400kN

• Maximum pre-compression force: 220kN

• Maximum tablet diameter: 60mm

• Maximum tablet thickness: 20mm

• Maximum production capacity: 35,000 tablets per hour

• Compliance standards: cGMP, CE, ISO, SGS

As a versatile big size tablet press machine, it is widely used in the following core application scenarios:

1.1 Pharmaceutical & Veterinary Industry

This is the core application field of this high pressure tablet press machine. In the pharmaceutical industry, it is suitable for the production of high-dose traditional Chinese medicine tablets, sustained-release and controlled-release tablets, effervescent tablets, and disinfectant tablets with large diameters. In the veterinary field, as a professional veterinary tablet press machine, it can produce large-dose boluses for livestock and poultry, which require extremely high compression force to ensure the integrity of the tablets during transportation and administration, and to control the dissolution rate of the active ingredients.

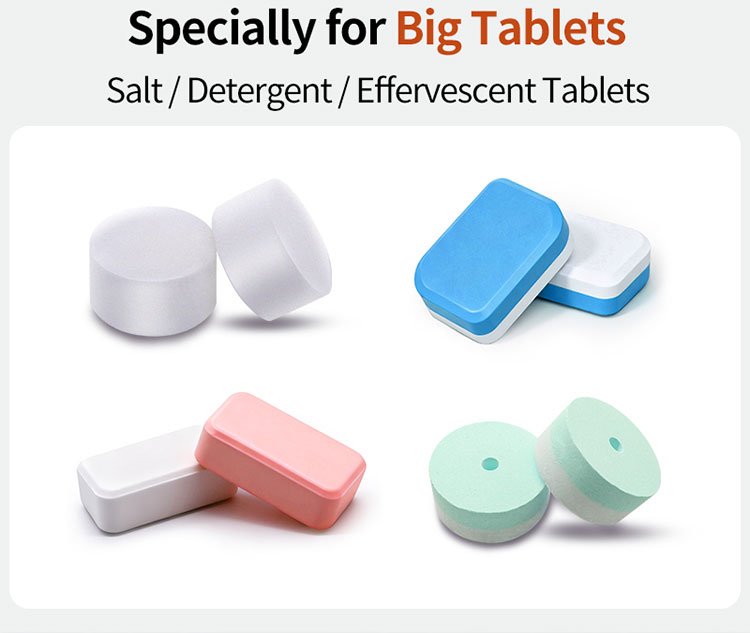

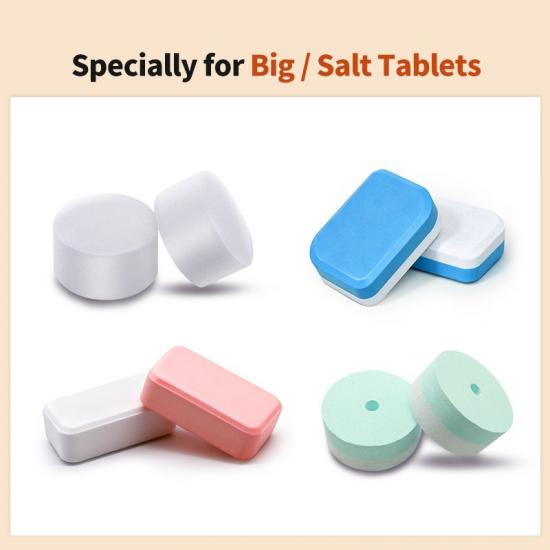

1.2 Household Chemical Industry

As a specialized salt tablet press machine, laundry tablet press machine and dishwasher tablet press machine, this model perfectly solves the forming problem of high-density cleaning tablets. Laundry detergent tablets, dishwasher tablets, and toilet cleaning tablets usually have a large diameter and high content of active ingredients, which require ultra-high pressure to form into dense, non-friable tablets that can maintain structural integrity during transportation and storage. The 400kN ultra-high compression force and professional pressure holding design of this machine ensure that the cleaning tablets have uniform hardness, no powder falling off, and stable dissolution rate.

1.3 Nutraceutical & Health Food Industry

For large-dose compound vitamin tablets, mineral tablets, herbal extract tablets, and protein tablets, this tablet compression machine can achieve stable forming without damaging the active ingredients. The adjustable pre-compression and main compression system, combined with the pressure holding design, can adapt to the compressibility of different raw materials, avoiding the inactivation of heat-sensitive active ingredients caused by excessive instantaneous pressure, while ensuring the tablet has a smooth appearance and stable weight difference.

1.4 Other Industrial Fields

It is also suitable for the production of water treatment tablets, agricultural disinfectant tablets, ceramic powder tablets, and catalyst tablets in the chemical, environmental protection, and new material industries. It can adapt to a wide range of powder and granule materials, with strong flexibility for multi-variety and multi-specification production.

2. Why Large-Size Tablet Compression Is More Difficult Than Conventional Tablet Production

Many manufacturers who have experience in tablet production know that producing large-diameter, thick tablets is far more difficult than producing conventional small tablets with a diameter of 5-12mm. The core technical difficulties are concentrated in the following 5 aspects, which are also the core pain points that ordinary tablet presses cannot solve:

2.1 Exponential Increase in Required Compression Force

The compression force required for tablet forming is proportional to the cross-sectional area of the tablet. For a conventional 10mm diameter tablet, a compression force of 10-20kN is sufficient to form a qualified tablet; but for a 60mm diameter large tablet, the cross-sectional area is 36 times that of the 10mm tablet, and the required compression force increases exponentially. Ordinary tablet presses with a maximum compression force of 50-100kN cannot provide enough pressure to densify the material, resulting in loose tablets, low hardness, and easy breakage.

2.2 Material Filling Uniformity & Stratification Challenges

Large-size tablets require a larger filling volume of material, and the die hole diameter is much larger than that of conventional tablets. The gravity feeding system used by ordinary tablet presses cannot ensure that the material is evenly filled into the entire die hole, resulting in uneven density distribution inside the tablet. At the same time, for compound formulations with materials of different particle sizes and densities, gravity feeding is very easy to cause material stratification, resulting in large differences in tablet weight and uneven content of active ingredients, which seriously violates the regulatory requirements for pharmaceutical dosage uniformity.

2.3 Exhaust & Internal Stress Elimination Difficulties

Large-size tablets have a larger volume, and more air is trapped inside the material during filling. If this air cannot be fully discharged during the compression process, it will be compressed inside the tablet, and when the pressure is released, the air will expand, leading to capping and lamination of the tablet. In addition, the high compression force required for large tablets will generate huge internal stress inside the tablet. Ordinary tablet presses have no pressure holding design, and the instantaneous compression cannot eliminate this internal stress, resulting in the tablet cracking or breaking during subsequent transportation and packaging, even if it looks intact when it is ejected.

2.4 Higher Requirements for Equipment Structural Strength & Wear Resistance

The 400kN ultra-high compression force required for large tablet production will bring huge impact and load to the turret, punches, and main drive structure of the machine. Ordinary tablet presses use ordinary cast iron turrets and thin punches, which are very easy to deform, wear, or even break under long-term high-pressure operation, resulting in a short service life of the equipment, frequent replacement of wearing parts, and high maintenance costs. At the same time, the deformation of the turret will directly lead to uneven tablet thickness and weight difference, which cannot guarantee stable production.

2.5 More Stringent Requirements for Tablet Weight & Hardness Consistency

For large-dose pharmaceutical tablets, veterinary boluses, and cleaning tablets, the uniformity of tablet weight and hardness is directly related to the effectiveness of the product. A small weight deviation of conventional small tablets has a limited impact on the content of active ingredients, but for large tablets with a weight of several grams, the same deviation ratio will lead to a huge difference in the absolute content of active ingredients, which may cause the product to fail regulatory testing. Ordinary tablet presses cannot meet the strict requirements for filling accuracy and stability of large tablets, resulting in a high scrap rate in production.

3. Key Process Parameters for High-Quality Large Tablet Compression

The production of qualified large-size tablets depends on the precise control of core process parameters. For this 400kN high pressure tablet press machine, the following 5 core parameters directly determine the quality of the finished tablets:

3.1 Compression Force (Pre-Compression & Main Compression)

Compression force is the most core parameter for tablet forming. For large-size tablets, the matching of pre-compression and main compression force is particularly critical. The 220kN pre-compression force of this machine is used for slow exhaust and preliminary densification of the material, avoiding the impact of instantaneous high pressure on the material; the 400kN main compression force provides enough pressure to densify the material to the required hardness and density. For different materials, the ratio of pre-compression to main compression force can be flexibly adjusted to adapt to the compressibility of different powders and granules, which is the key to avoiding capping and lamination.

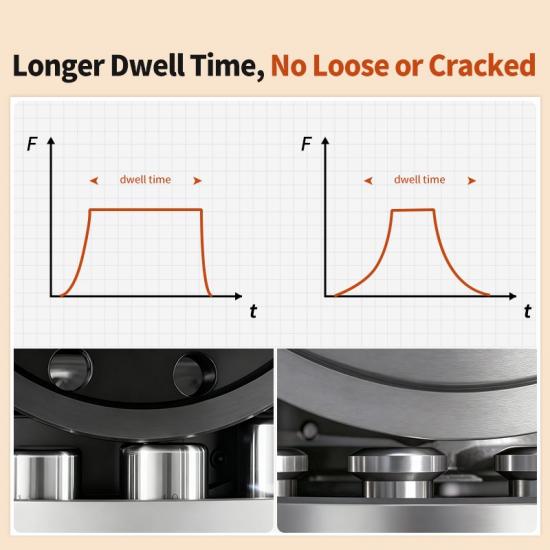

3.2 Pressure Holding Time

Pressure holding time refers to the duration that the tablet is kept at the peak compression force. For large-size tablets, a longer pressure holding time can fully eliminate the internal stress of the tablet, ensure the uniform density of the entire tablet, and avoid delayed cracking of the tablet. This high pressure tablet press machine is equipped with a professional pressure holding structure, which can extend the pressure holding time according to the characteristics of the material and the tablet specifications, which is impossible for ordinary rotary tablet press machines.

3.3 Filling Depth & Feeding Speed

Filling depth determines the weight of the tablet, and for large tablets with a maximum thickness of 20mm, the precise control of filling depth is particularly important. The machine's filling system can achieve stepless adjustment of the filling depth, with an adjustment accuracy of ±0.01mm, ensuring the stability of the tablet weight. The feeding speed of the double-layer three-impeller forced feeder can be adjusted synchronously with the turret speed, ensuring that the material is evenly filled into the die hole at different production speeds, avoiding under-filling or over-filling.

3.4 Turret Rotation Speed & Production Capacity

The turret rotation speed directly affects the production capacity (up to 35,000 tablets per hour) and the compression time of the tablet. For large-size tablets, a slower turret speed can provide longer compression and exhaust time, which is conducive to improving the quality of the tablet. The machine's turret speed can be adjusted steplessly, allowing manufacturers to balance production efficiency and tablet quality according to the difficulty of tablet forming. For tablets that are difficult to form, the speed can be appropriately reduced to ensure a higher yield.

3.5 Material Flowability & Compressibility

In addition to equipment parameters, the physical properties of the material itself are also critical. The forced feeding system of this machine can adapt to materials with poor flowability, but for the production of high-quality large tablets, the material should have appropriate particle size distribution, flowability, and compressibility. The machine's intelligent control system can adjust the feeding and compression parameters according to the material characteristics, achieving the best forming effect for different formulations.

4. Core Advantages of the 400kN High Pressure Tablet Press Machine

To solve the core difficulties in large-size tablet production, this high pressure tablet press machine has carried out targeted innovative design in 5 core aspects, which are also its unbeatable advantages over ordinary tablet presses on the market:

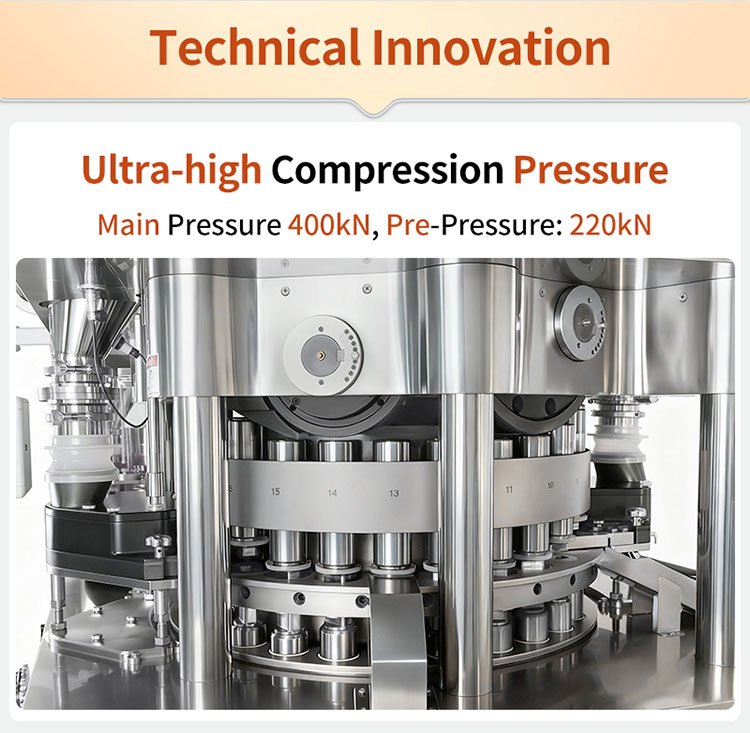

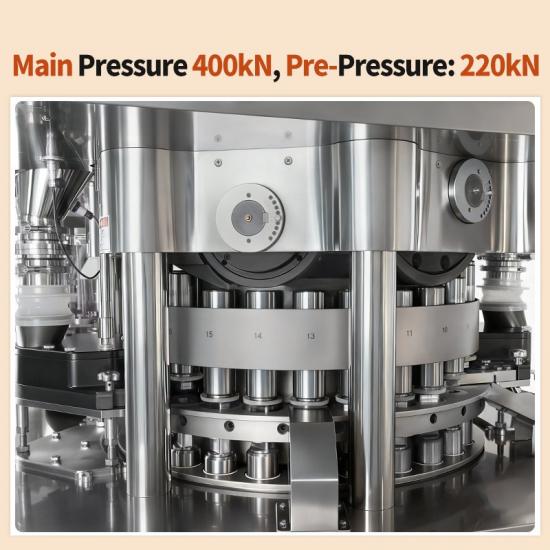

4.1 Ultra-High Compression System, Exclusively for Large-Size Tablets

The machine is equipped with a heavy-duty compression system, providing a maximum main compression force of 400kN and a maximum pre-compression force of 220kN, which is 4-8 times that of ordinary tablet presses. This ultra-high compression force can fully meet the forming requirements of tablets with a maximum diameter of 60mm and a maximum thickness of 20mm, whether it is high-density veterinary boluses, hard laundry detergent tablets, or high-dose Chinese medicine tablets, it can achieve dense forming without loose tablets. The compression force can be adjusted steplessly through the touch screen, adapting to the production needs of different specifications and materials, with a pressure control accuracy of ±1%.

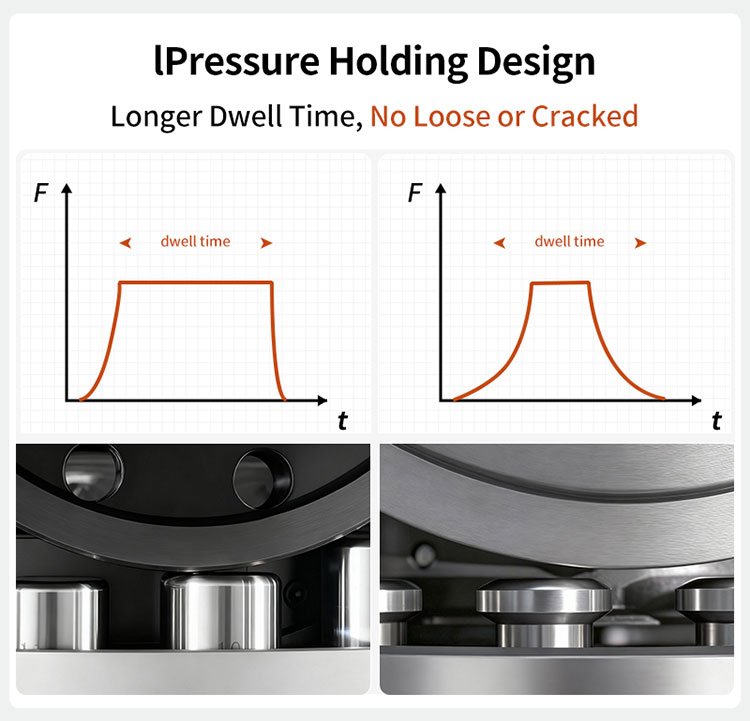

4.2 Professional Pressure Holding Design, Zero Capping & Lamination

Unlike ordinary tablet presses that only have instantaneous compression, this machine adopts a patented pressure holding structure, which extends the contact time between the compression wheel and the punches at the peak pressure, greatly increasing the tablet setting time. This design fully eliminates the internal stress generated during the compression of large-size tablets, ensures the uniform density of the tablet from the surface to the core, and completely solves the industry-wide problems of capping, lamination, and delayed cracking of large tablets. Even for materials with poor compressibility, it can achieve a smooth and intact tablet appearance, greatly reducing the production scrap rate.

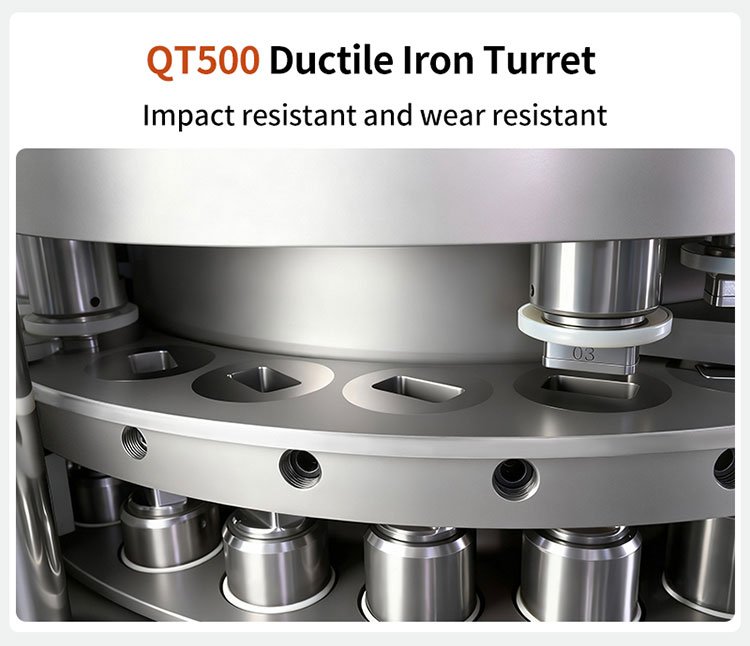

4.3 High-Strength Ductile Iron Turret, Impact Resistant & Wear Resistant

The turret is the core load-bearing component of the rotary tablet press machine, and its material and performance directly determine the stability and service life of the equipment under high-pressure operation. This high pressure tablet press machine uses a high-strength ductile iron turret, which has higher impact resistance, hardness, and wear resistance than ordinary cast iron or stainless steel turrets. The ductile iron material has excellent toughness and fatigue resistance, and will not deform or crack under long-term 400kN high-pressure impact, ensuring the long-term stability of the die hole position and tablet weight. At the same time, the surface of the turret is treated with precision hardening, which greatly improves its wear resistance and extends the service life of the turret by more than 3 times compared with ordinary turrets.

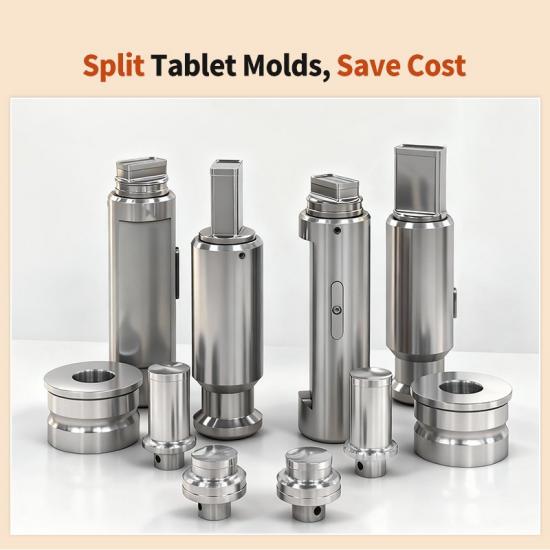

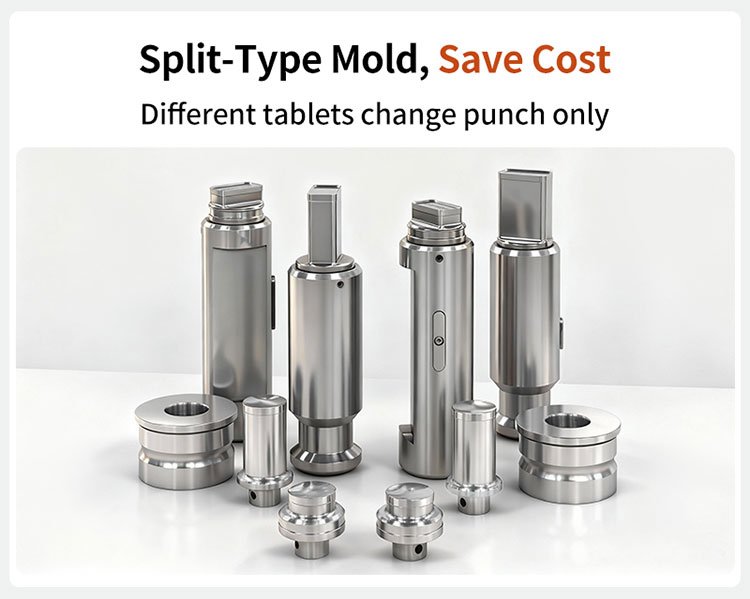

4.4 Split Modular Mold Design, Low Mold Change Cost & High Efficiency

For manufacturers with multiple specifications and varieties of production, mold replacement cost and time are key factors affecting production efficiency. This machine adopts a split modular mold design, which breaks the limitation of the traditional integrated mold. When changing the production specifications, manufacturers only need to replace the punches, without replacing the entire set of molds, which greatly reduces the mold procurement cost. At the same time, the quick-change mold structure allows a single operator to complete the mold replacement and calibration within 15 minutes, without professional tools, which greatly shortens the production downtime caused by format change, and is very suitable for manufacturers with multi-batch and multi-SKU production.

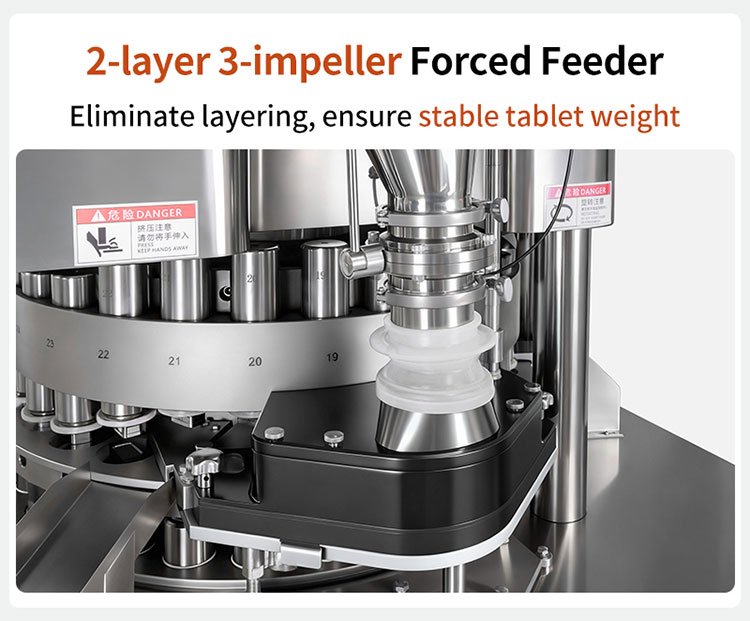

4.5 Double-Layer Three-Impeller Forced Feeder, Uniform Feeding & Stable Tablet Weight

To solve the problem of material stratification and uneven filling in large tablet production, the machine is equipped with an innovative double-layer three-impeller forced feeder. The sealed feeding structure uses two layers of three-impeller to force the material into the die hole at a uniform speed, which completely eliminates the material stratification caused by different particle sizes and densities, and avoids the problem of uneven filling caused by poor material flowability. This design ensures that the filling volume of each die hole is consistent, and the tablet weight difference is controlled within ±2%, which fully meets the GMP requirements for pharmaceutical production. At the same time, the low-speed rotation of the impeller will not damage the material particles, ensuring the integrity of the raw material particles and the stability of the tablet formulation.

Conclusion

For manufacturers engaged in the production of large-size tablets, choosing a reliable high pressure tablet press machine is the core of ensuring product quality, improving production efficiency, and meeting global regulatory requirements. The 400kN rotary high pressure tablet press machine developed by Rich Packing directly solves the five core pain points of large tablet production: insufficient compression force, easy capping and lamination, poor equipment structural stability, high mold change cost, and uneven tablet weight. With its industry-leading ultra-high compression system, pressure holding design, high-strength ductile iron turret, modular mold, and forced feeding system, it has become the preferred solution for large tablet production for more than 2,600 manufacturers worldwide.

Whether you are a large-scale pharmaceutical factory pursuing stable large-volume production, a veterinary drug manufacturer needing high-dose bolus production, or a household chemical enterprise producing laundry and dishwasher tablets, this 400kN high pressure tablet press machine can provide you with a customized, reliable, and cost-effective production solution, helping you enhance your core competitiveness in the global market.

FAQ: Frequently Asked Questions About the 400kN High Pressure Tablet Press Machine

Q1: What is the maximum tablet size and thickness this 400kN high pressure tablet press machine can produce?

A: This machine is specially designed for large-size tablet production, with a maximum tablet diameter of 60mm and a maximum tablet thickness of 20mm. It can also be customized to adapt to special-shaped tablets, ring-shaped tablets, and double-layer tablets according to your production needs.

Q2: What is the maximum production capacity of this rotary tablet press machine?

A: The maximum production capacity of this machine is 35,000 tablets per hour, and the turret speed can be adjusted steplessly. You can flexibly adjust the production speed according to the difficulty of tablet forming and your production schedule, balancing production efficiency and product yield.

Q3: Can this big size tablet press machine be used for veterinary tablets, laundry tablets and dishwasher tablets?

A: Yes. This machine is a multi-purpose high pressure tablet press machine, which is not only suitable for pharmaceutical and nutraceutical tablet production, but also widely used as a veterinary tablet press machine, laundry tablet press machine, and dishwasher tablet press machine. It can adapt to a wide range of materials, including pharmaceutical powders, veterinary drug granules, detergent powders, and ceramic powders, with strong formulation adaptability.

Q4: How does the pressure design of this tablet compression machine prevent capping and lamination?

A: This machine adopts a three-stage anti-lamination design: first, the 220kN pre-compression system slowly compresses the material and fully discharges the trapped air; second, the 400kN main compression force provides sufficient pressure to densify the material; finally, the professional pressure holding structure extends the setting time, fully eliminating the internal stress of the tablet. This design completely solves the common problems of capping and lamination in large tablet production, greatly reducing the production scrap rate.

Q5: Is the mold change process complicated? What is the cost of mold replacement?

A: The machine adopts a split modular mold design with a quick-change structure. A single operator can complete the mold replacement and calibration within 15 minutes without any professional tools, which is very simple and efficient. When changing production specifications, you only need to replace the punches, without purchasing a complete set of molds, which reduces the mold replacement cost by more than 60% compared with traditional integrated molds.
