ZP 17D Rotary Automatic Tablet Press Machinery By Rich Packing
*** Technical parameter
|
Model |
ZP11D |
ZP15D |
ZP17D |
ZP19D |
ZP21D |
|
Dies No. |
11 |
15 |
17 |
19 |
21 |
|
Max. Pressure |
100kn |
80 kn |
60 kn |
60 kn |
60 |
|
Max. Dia. of Tablet |
40mm |
25 mm |
20 mm |
13 mm |
12 mm |
|
Max.DepthofFilling |
28 mm |
15 mm |
15 mm |
15 mm |
15 mm |
|
Max.Thickness of Tablet |
10 mm |
6 mm |
6 mm |
6 mm |
6 mm |
|
Rotary Speed |
20r/min |
30 r/min |
30 r/min |
30 r/min |
30 r/min |
|
Max. Production Capacity |
13200 pc/h |
27000 pc/h |
30600 pc/h |
34200 pc/h |
37800 pc/h |
|
Power |
3.0kw |
||||
|
voltage |
220v/380v |
||||
|
dimension |
890*650*1680mm |
||||
|
weight |
1000kg |
||||
*** Configuration
|
Item |
Manufacturer |
|
Frequency converter |
Danfoss |
|
Breaker |
Tracy |
|
touch screen |
Siemens |
|
Main motor |
Shanghai Hengli |
|
Fuse |
zhengtai |
|
Indicator light |
yijia |
|
Emergency stop switch |
zhengtai |
|
Speed regulating resistance |
keying |
|
Contactor |
zhengtai |
|
Intermediate contactor |
xinling |
|
button |
yijia |
|
Key switch |
Tracy |
|

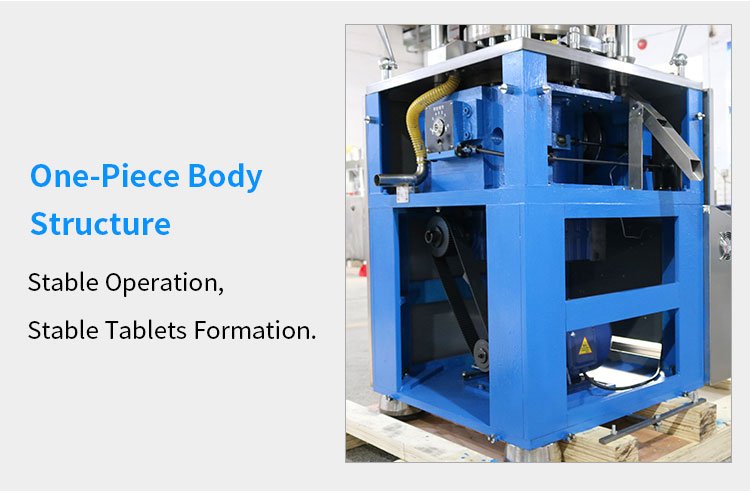

main body |
HT150 rich packing |
|

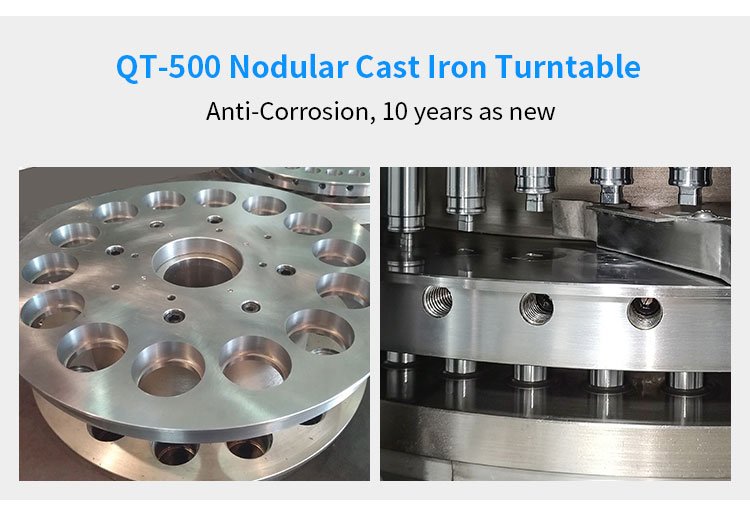

Turntable |
HT300 rich packing |
|
Upper roller frame |
HT150 rich packing |
|

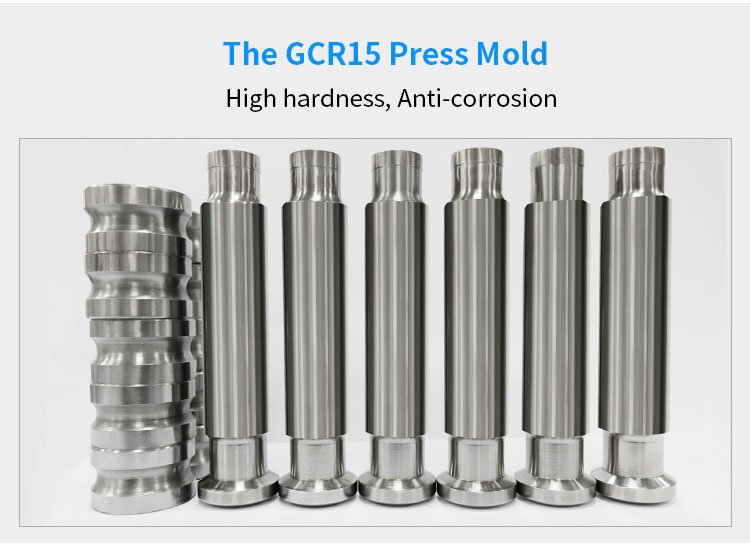

Upper and lower pressing wheels |
GCr15 rich packing |
|
Upper and lower rails |
GCr15 rich packing |
|
Worm gear box |
WPWKO155 rich packing |
|
Spindle |
45# rich packing |

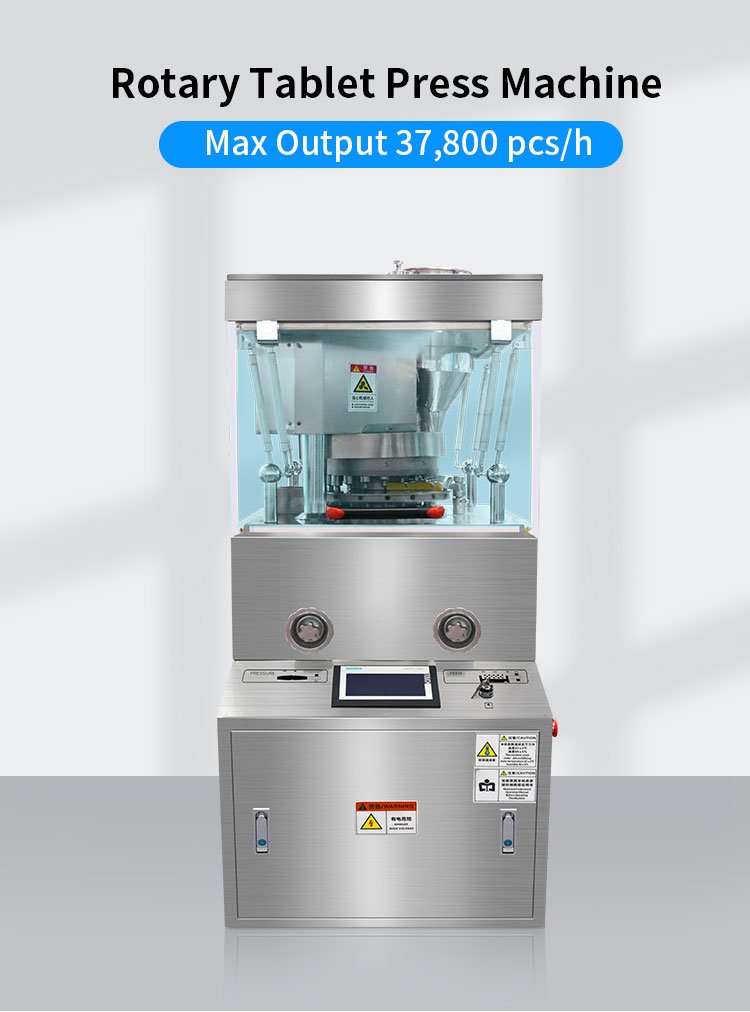

These ZP-17D Pharmaceutical Tablet Pressing Machine Compression Machine For Tablets and pills, This is the D series ZP17 rotary tablet compress with the same middle die platform with ZP11 type, 15, 17, 19 and 21 die counts. In the ideal states of we Guangdong RICH PACKING R&D laboratory, the fastest tabletting speed of ZP17D is over 37,000 tablets in one hour. Please note that the conditions here are to produce tablets and pills of smaller size and thickness, and Under the premise of reaching the max running speed.
Normally, our custom customers generally need that under the conditions of 17 pressing dies, the operating pressure can also be as high as over 60KN, and the tablets production standard of maximum diameter to 20mm and molding thickness to 6mm is sufficient to provide more than 85% of users with the strong mouth. Support for the tablets production of the pharmaceutical and candy and food industries.
For the customers who demand the special customization, we also can adjust the amounts of molds on the middle mold to number 11, so as to make the maximum molding pressure of this D series over 100KN. Under such the large running pressure, we use the ZP17D rotary tablet press to make up the tablets with big or large tablet size over 40 mm, such as the large size effervescent tablets and the big size laundry detergent tablets.
