NJP 1500 Automatic Capsule Filling Machine

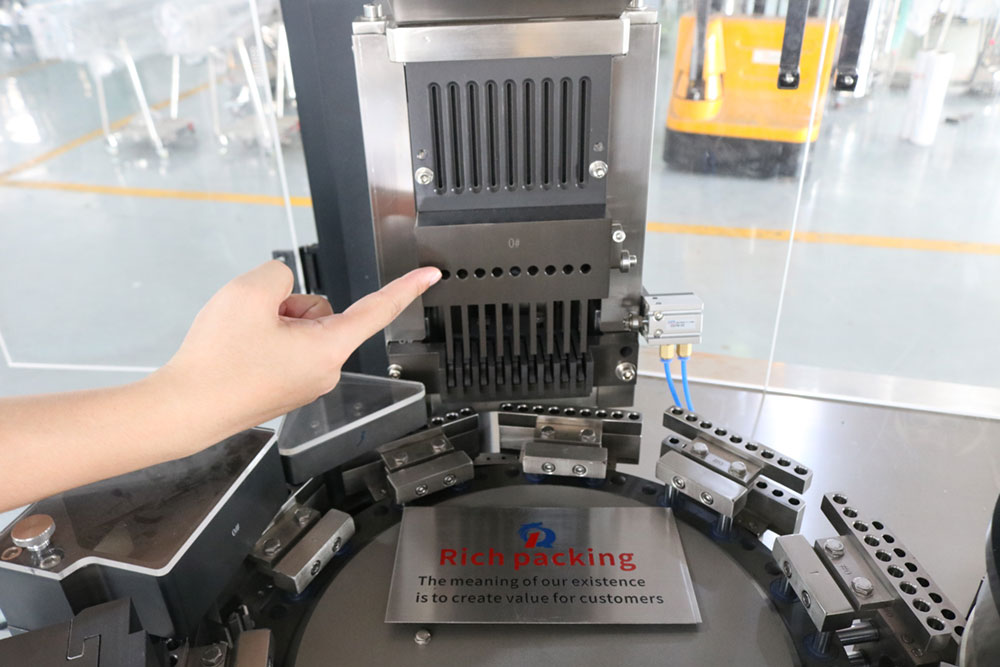

The primary task of the fully automatic capsule filling machine is that when the capsuling machine is running, the capsules in the capsule hopper will vertically put the first delivery fork of the dispensing device one by one. The downward movements of the leading fork will send six capsules at a time, and the rubber caps are on the top.

  • Product Name

    NJP-1500D Capsule Filling Machine
  • Certification

    CE, ISO, SGS, etc.
  • Lead Time

    In Stock 7 Days Fast Delivery.
  • Loading Port

    Yantian Port, Shenzhen / Yangshan Port, Shanghai
  • Product Function:

    For Hard Shell Capsule Size 000,00,0,1,2,3,4,5# Filling
  • After-Sales Provided:

    Engineers available to service machinery overseas.
  • Warranty:

    3 Years
  • MOQ.:

    1
  • Product Detail

NJP 1500 Automatic Capsule Filling Machine By Rich Packing



The primary working progress of the fully automatic capsule filling machine is that when the capsule machine running, the capsules from the capsule hopper will vertically enter in the first delivery fork of the dispensing equipment one by one.
The downward movement of the leading pick will send six capsules at one time, and the rubber cap is on the top.
In the first running task, the vacuum separating system will slide the capsules into the module and at the same time move the capsule body cap away.



***  Applications

capsule filling auto

capsule filler machinery

capsule filling machine



***  Technical parameter

Production capacity

90000 pcs/h

Net weight of machine

1200Kg

Overall size of machine

900×870×1950mm

Power

380/220V    50Hz

Total power

5.5KW

No.of segment bores

9

Vacuum

40m3/h-0.04-0.08Mpa

Dust collector

24.5Kpa  210m3/h

Noise

<75DB(A)

Making rate

Empty capsule99.9%   Full capsule99.8%

Applicable capsule

00,0,1,2,3,4,5#

Filling error

Western medicine:±3%   Chinese medicine:±4%

Applicable product

Power、granule、pellet、tablet

Packing size

1490×1260×2150mm



***   Configuration List

Item

Specification

Qty.

Manufacturer

Touch screen

6AV6/648-0BC11-3AX0

1

Germany Siemens

PLC

6ES7/288-1ST20-0AA0

1

Germany Siemens

AC Contactor

3TB42

4

Germany Siemens

Frequency converter

VFD015 B21A

1

Taiwan Delta

Thermal relay

3UA59

3

Germany Siemens

Button

ZB2-BA3C

3

Schneider

Main Motor

CH-30-1100W

1

Dongli

Cam

RU-83DS-10  RU-83DS-6

2

Taiwandaojin

Vacuum pump(wet)

SK-0.5A

1

Shanghai

Dust collector

XLJ Series

1

Self-made

Linear bearing

LM10UU

40

Korea SAMICK

Linear bearing

LM12UU

48

Korea SAMICK

Linear bearing

LM20UU

8

Korea SAMICK

Linear bearing

LM40UU

4

Korea SAMICK

Roller bearing

CF6B

10

Japan IKO

Roller bearing

CF12B

5

Japan IKO

Roller bearing

CF18B

1

Japan IKO

Deep groove ball bearing

6200

10

JapanNSK

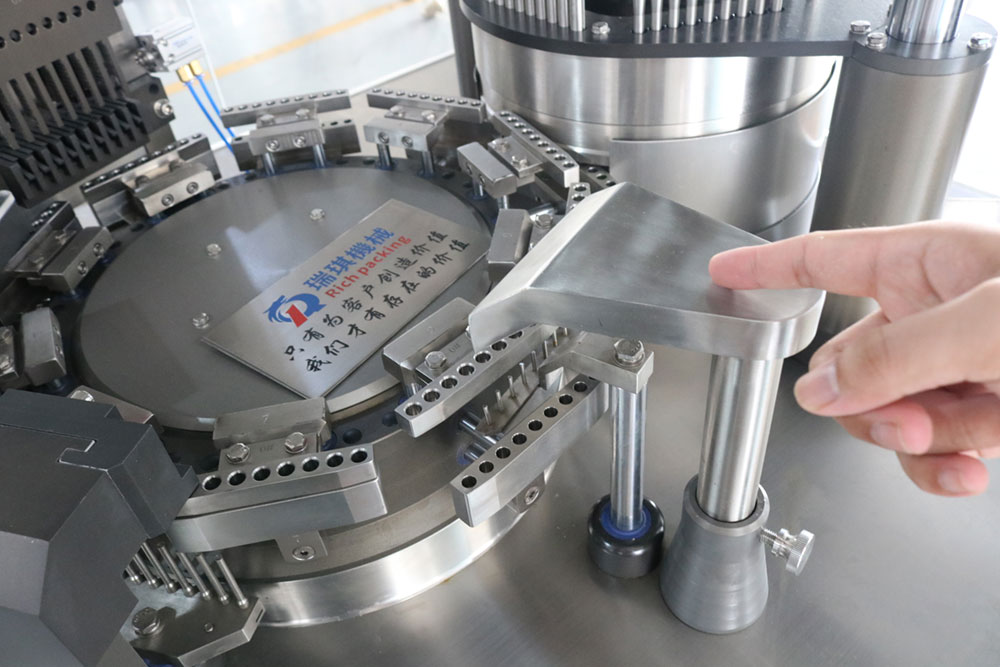

When the turntable is intermittently twisted to the second workstation, the upper dies meter quickly rises and moves inwards.

capsule filling machine 000



In the fifth workstation, the capsule filling rod pushes the compacted grain into the capsules of the lower dies.

capsule filling machine 00




The capsule that has not left is on the eighth workstation. The upper and lower modules are combined together on the tenth workstation, and the lower capsules’ body is pushed upward to make it buckle.

capsule filling machine 0



capsule filling company


***  Why choose us?

In the eleventh workstation, the buckled capsule product is pushed out and is collected. In the twelfth workstation, the vacuum cleaner enters the next cycle after the clearing the module.
This kind of full automatic capsule filling machine will not make the noise during the high speed operation of capsule filling, and can change the molds conveniently and quickly for up to 15 minutes.

The auto intelligent machines 1500D can ensure 100% of the zero capsule damage and 100% of the capsule quality, all of which benefit from its 100% crystallize dilution accuracy.



capsule filling service
